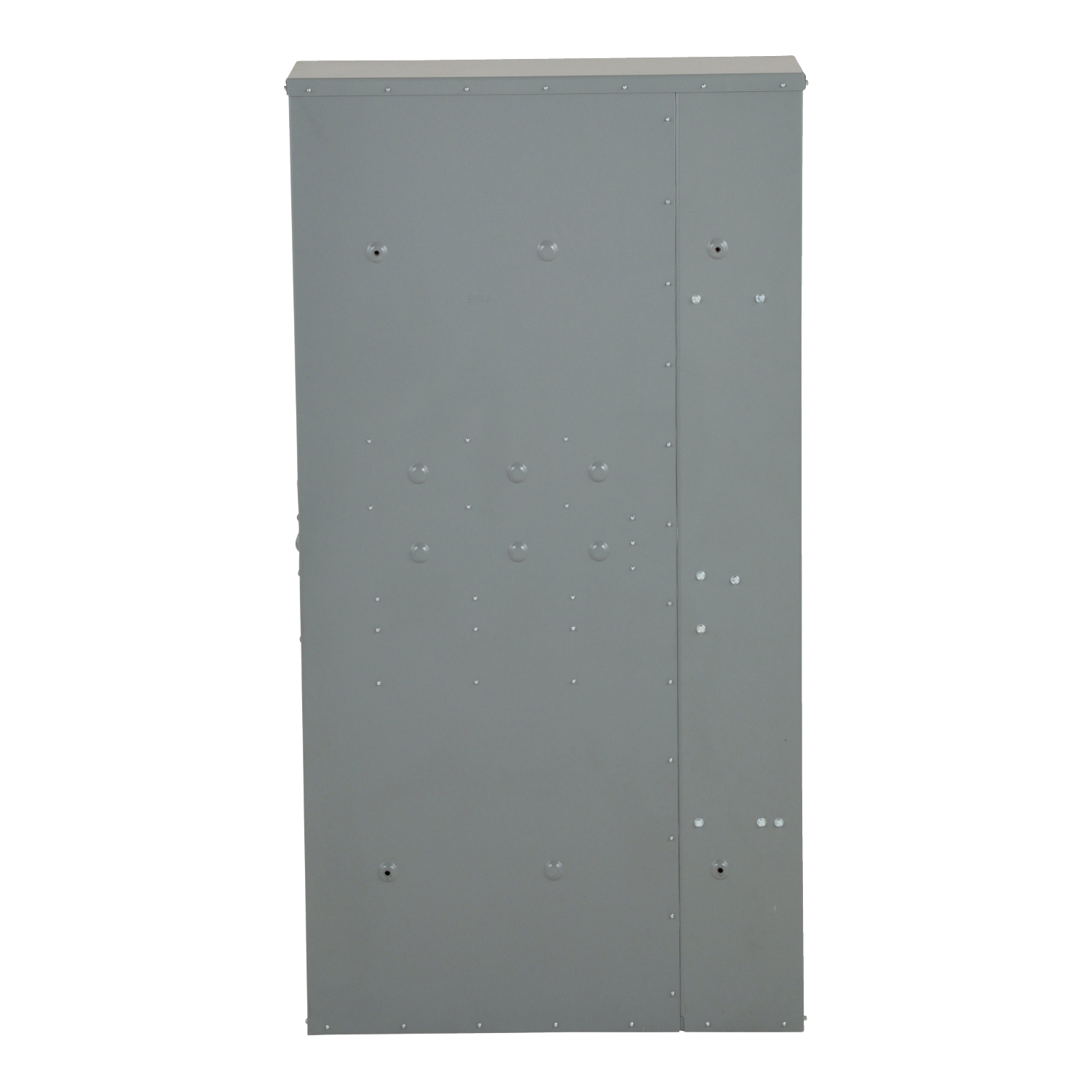

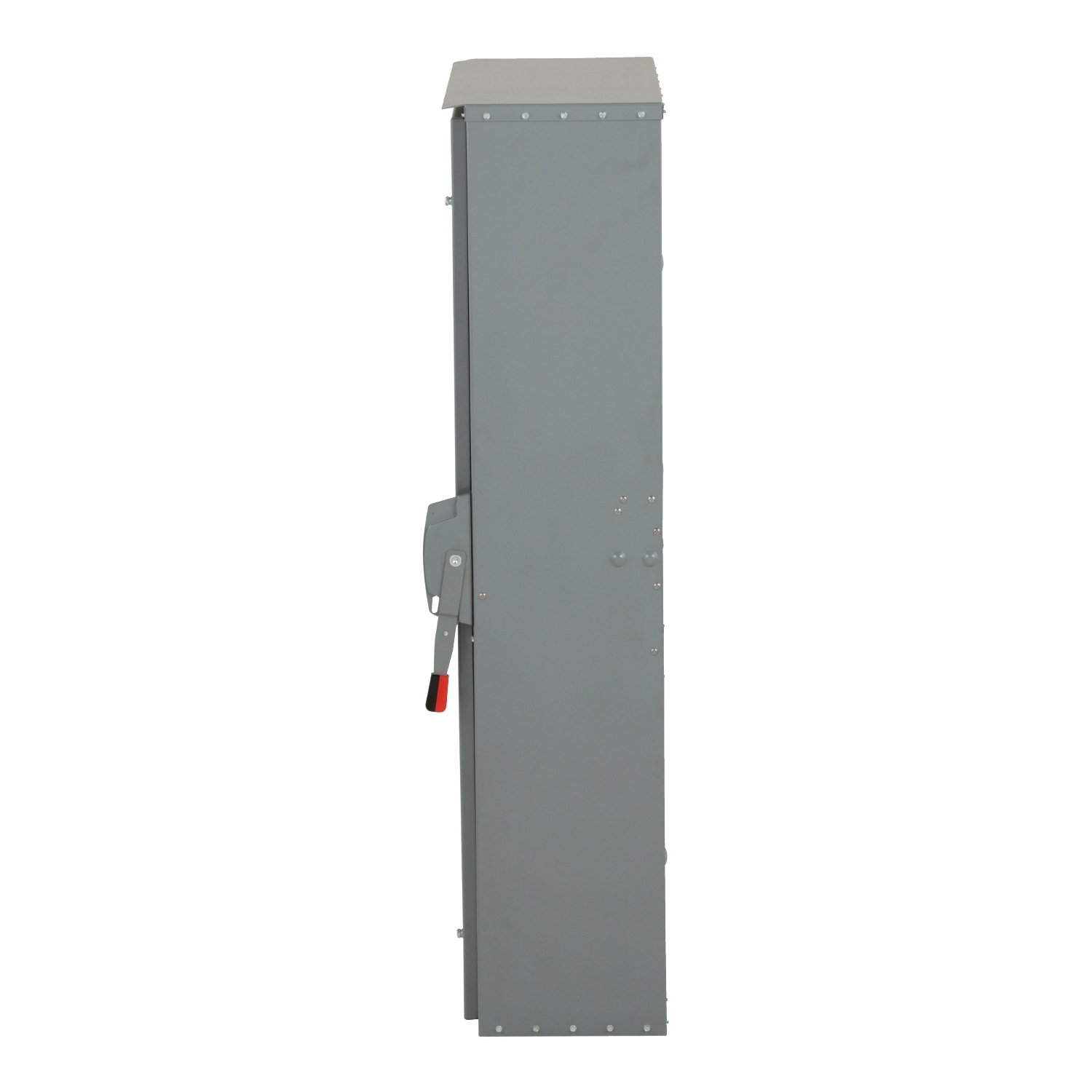

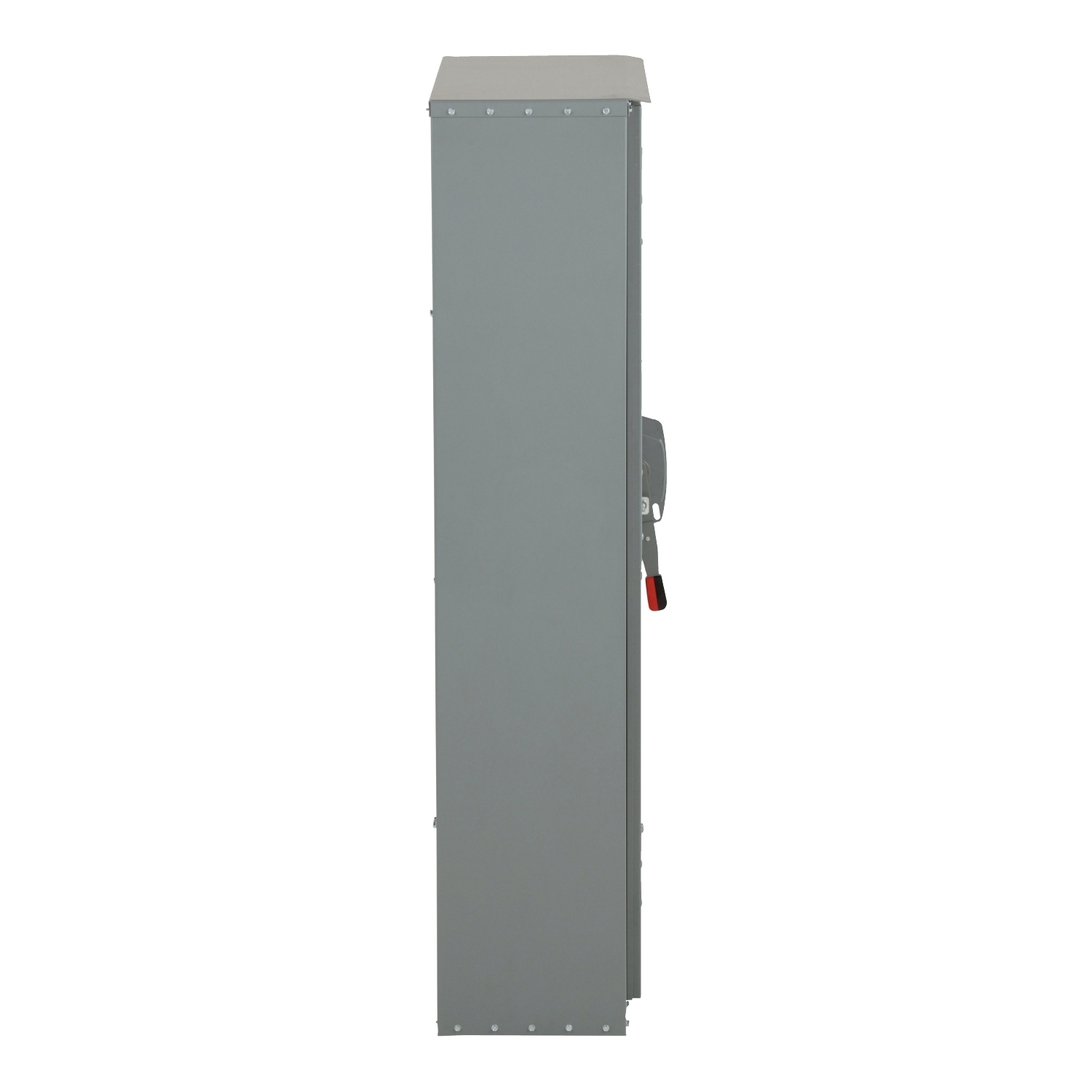

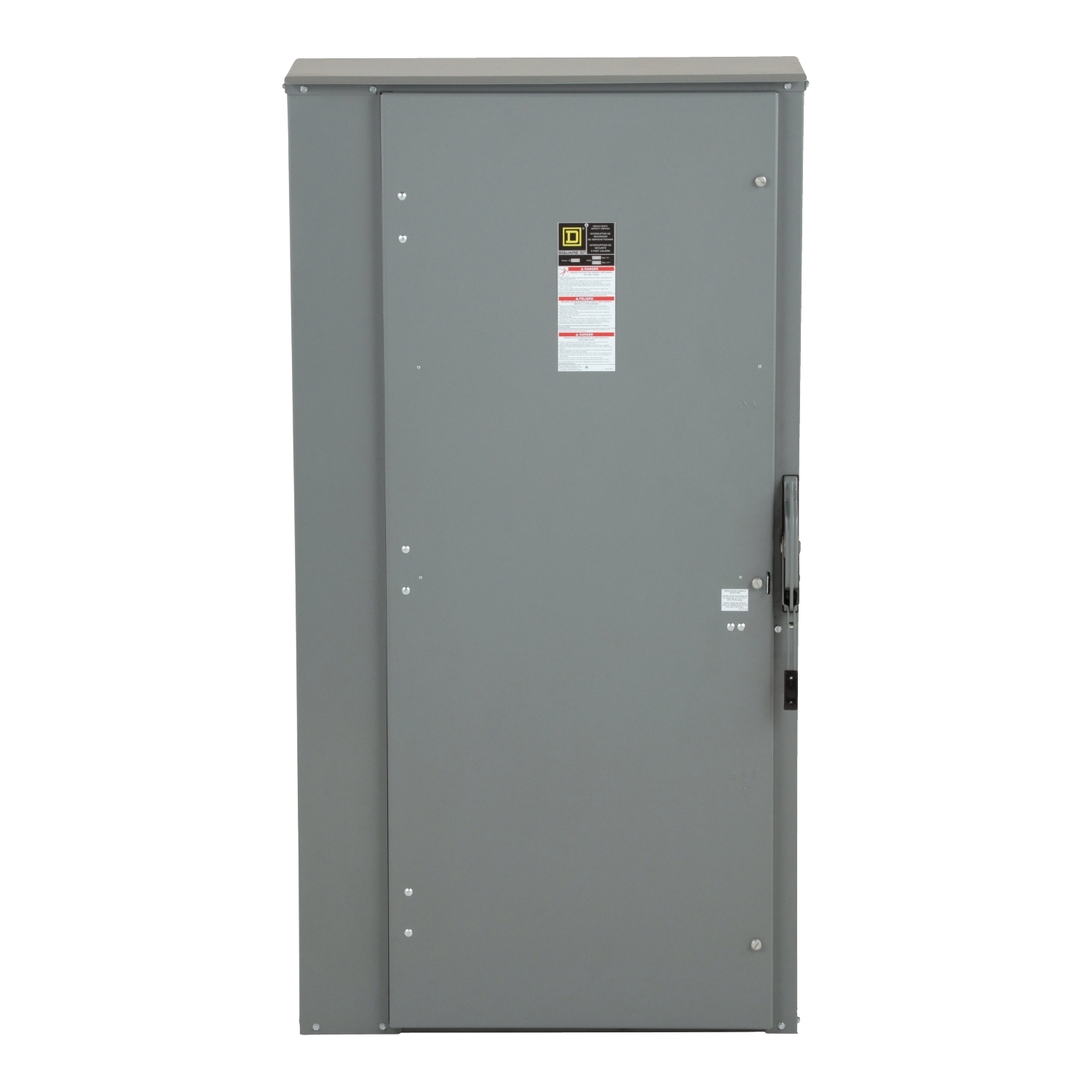

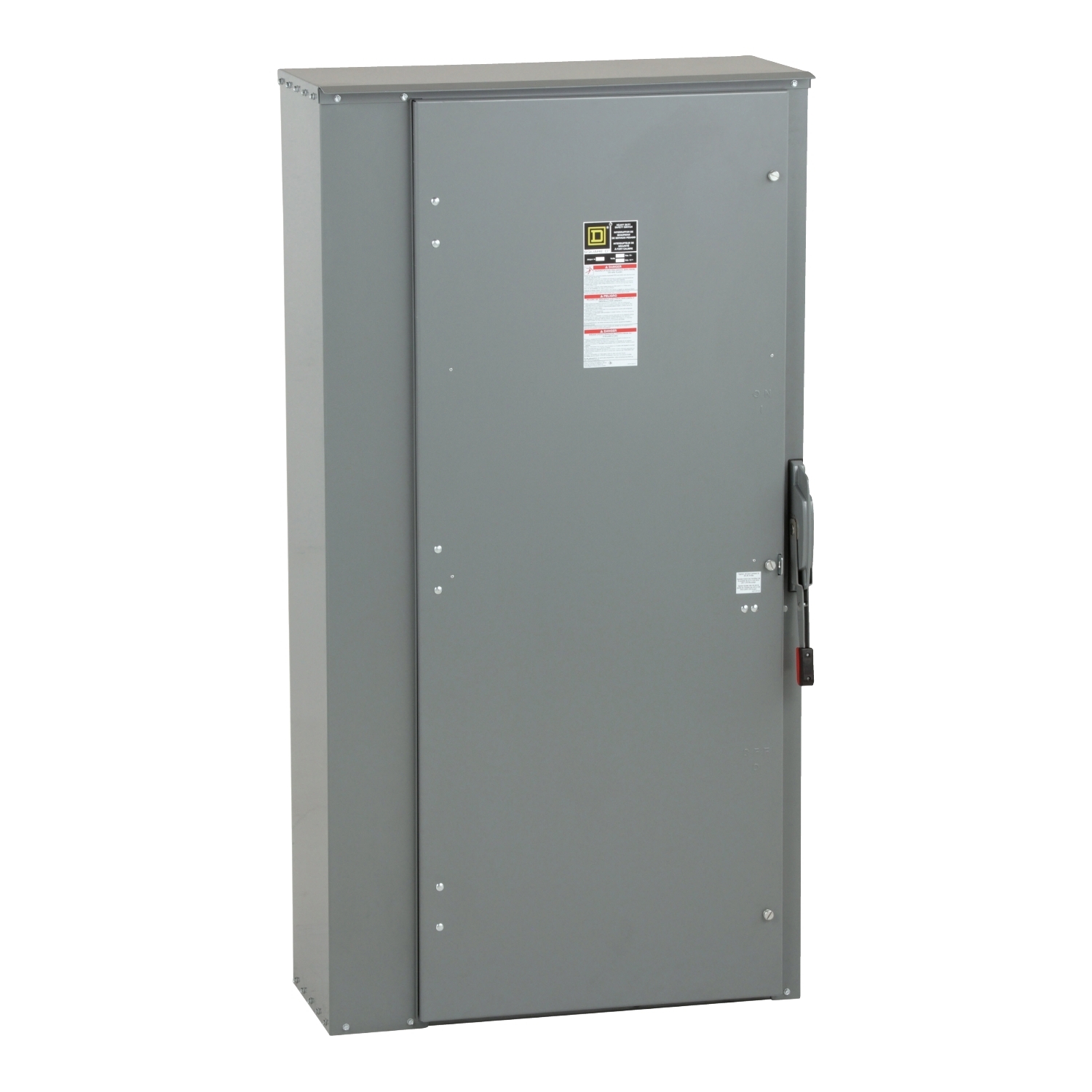

H227NR Heavy Duty Fusible Rainproof Safety Switch, 240 V AC/250 V DC, 800 A, 50 hp at 240 VAC/250 VDC, 2NO 2 Form A Contact, 2 Poles
- MFR:
- Schneider Electric
- MFR #:
- H227NR
- UPC:
- 785901823056
- Item #:
- 180859
H227NR Heavy Duty Fusible Rainproof Safety Switch, 240 V AC/250 V DC, 800 A, 50 hp at 240 VAC/250 VDC, 2NO 2 Form A Contact, 2 Poles
- MFR #:
- H227NR
- UPC:
- 785901823056
- Item #:
- 180859
The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 800A with voltage of 240VAC and 250VDC. This switch is rated at 50hp for 1 phase with standard fuses. This switch has a 3 wire configuration and is rated for 750 kcmil to 3/0 AWG aluminum or copper wire For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.
Manuals & Documentation
| Catalog Number | H227NR |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Fuse Type | L |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363929&lang=en-us |
| UPC | 785901823056 |
| GTIN | 00785901823056 |
| Width | 36.62 |
| Width UOM | Inch |
| Height | 69.13 |
| Height UOM | Inch |
| Depth | 17.75 IN |
