Discontinued
Appleton

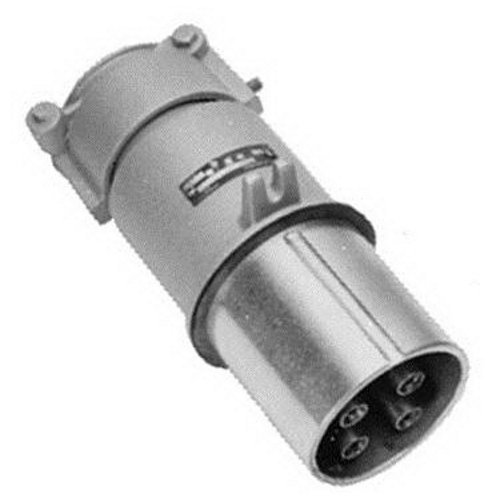

AP20044CD Powertite AP Series 3-Phase Grounding Style 1 Pin and Sleeve Plug, 250 V AC/600 V DC, 200 A, 4 Poles, 4 Wires

MFR:
Appleton Electric
MFR #:
AP20044CD
UPC:
781381447522
Item #:
180710

Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum)

Manuals & Documentation

Features

  • Discontinued
Catalog Number AP20044CD
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For ADR20044 Receptacle And ARC20044CD Connector Body
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 4
Phase 3
Special Features Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 11/16 IN; Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381447522
GTIN 00781381447522
Item Type Grounding Style 1 Plug
Environmental Conditions Temperature Rating: -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
