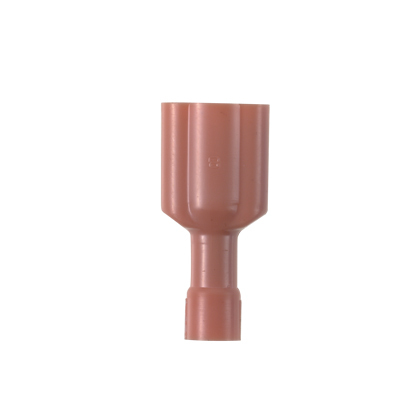

The vibration resistant DiscoGrip male disconnect is made of brass and is nickel-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.9 (22.9 mm) long and 0.41 (10.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DPF18-250FIM-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Finish | Nickel-Plated |
| Insulation | Premium Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983119202 |
| GTIN | 00074983119202 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
