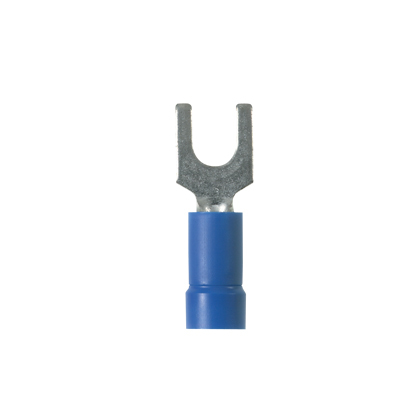

PV14-6F-C Pan-Term Type PV-F Loose Piece Fork Terminal, 16 to 14 AWG Conductor, 0.84 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PV14-6F-C
- UPC:
- 074983804061
- Item #:
- 180127
PV14-6F-C Pan-Term Type PV-F Loose Piece Fork Terminal, 16 to 14 AWG Conductor, 0.84 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Blue
- MFR #:
- PV14-6F-C
- UPC:
- 074983804061
- Item #:
- 180127
The PV14-6F-C Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV14-6F-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983804061 |
| GTIN | 00074983804061 |
| Item Type | Fork Terminal |
| Size | #6 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
