SQUARE D

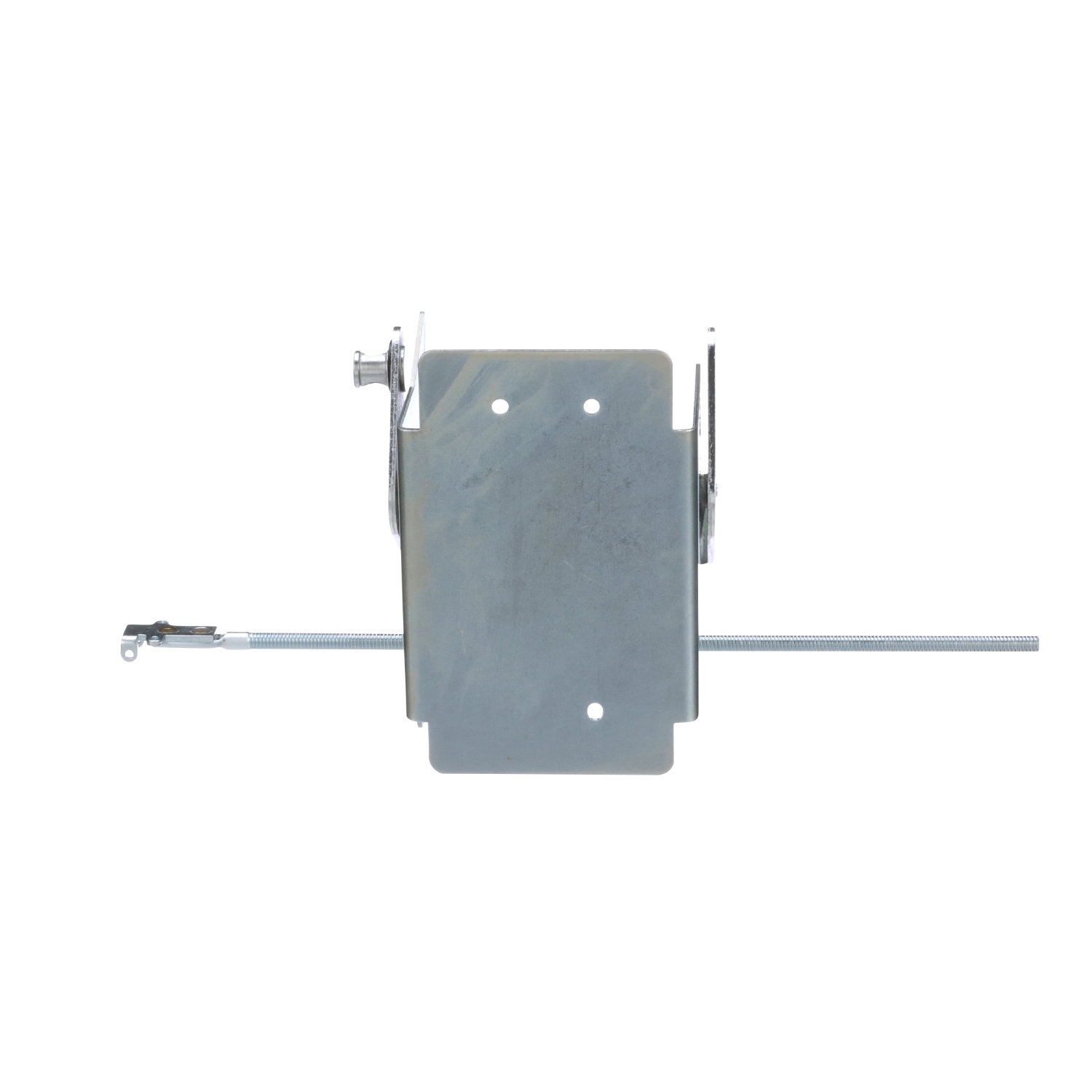

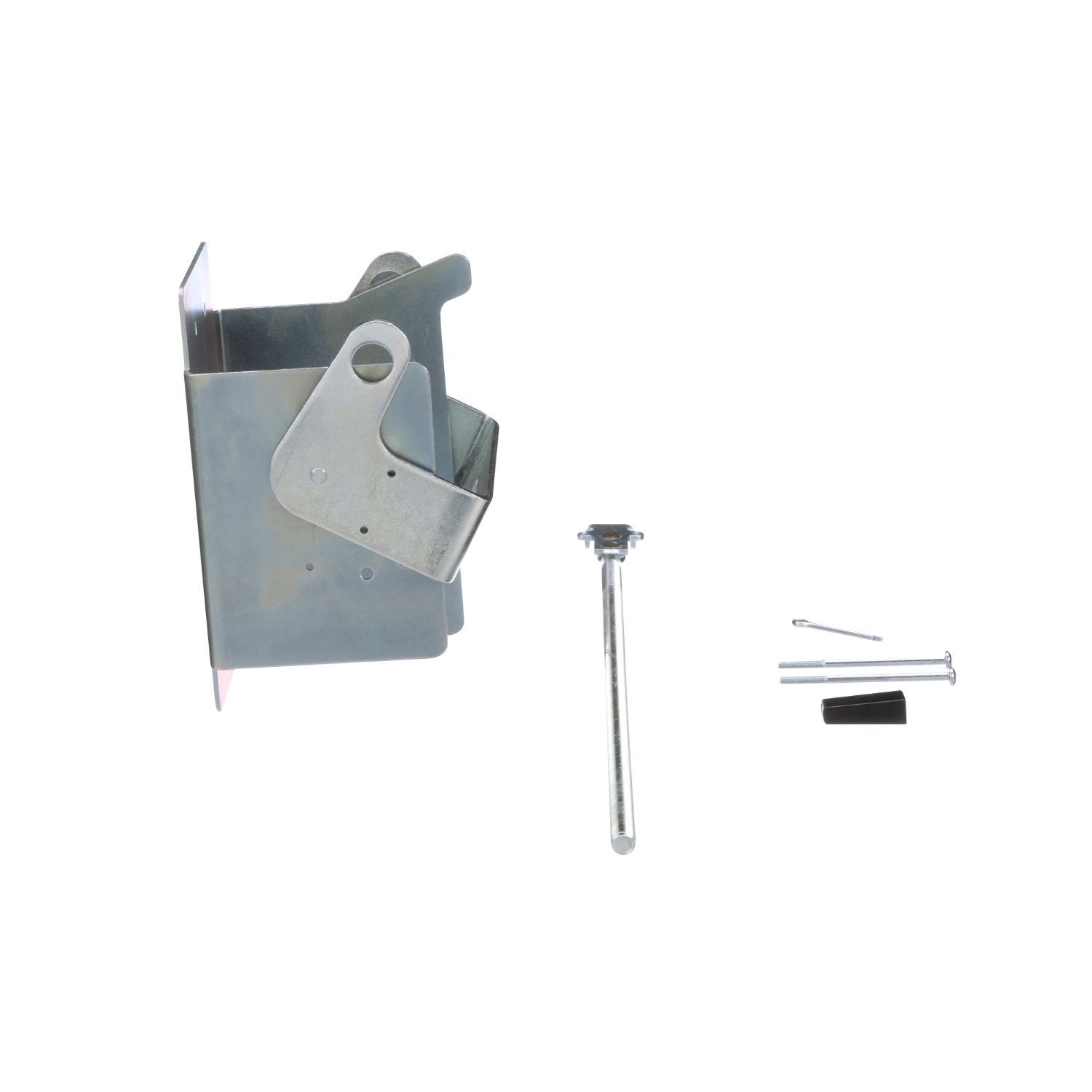

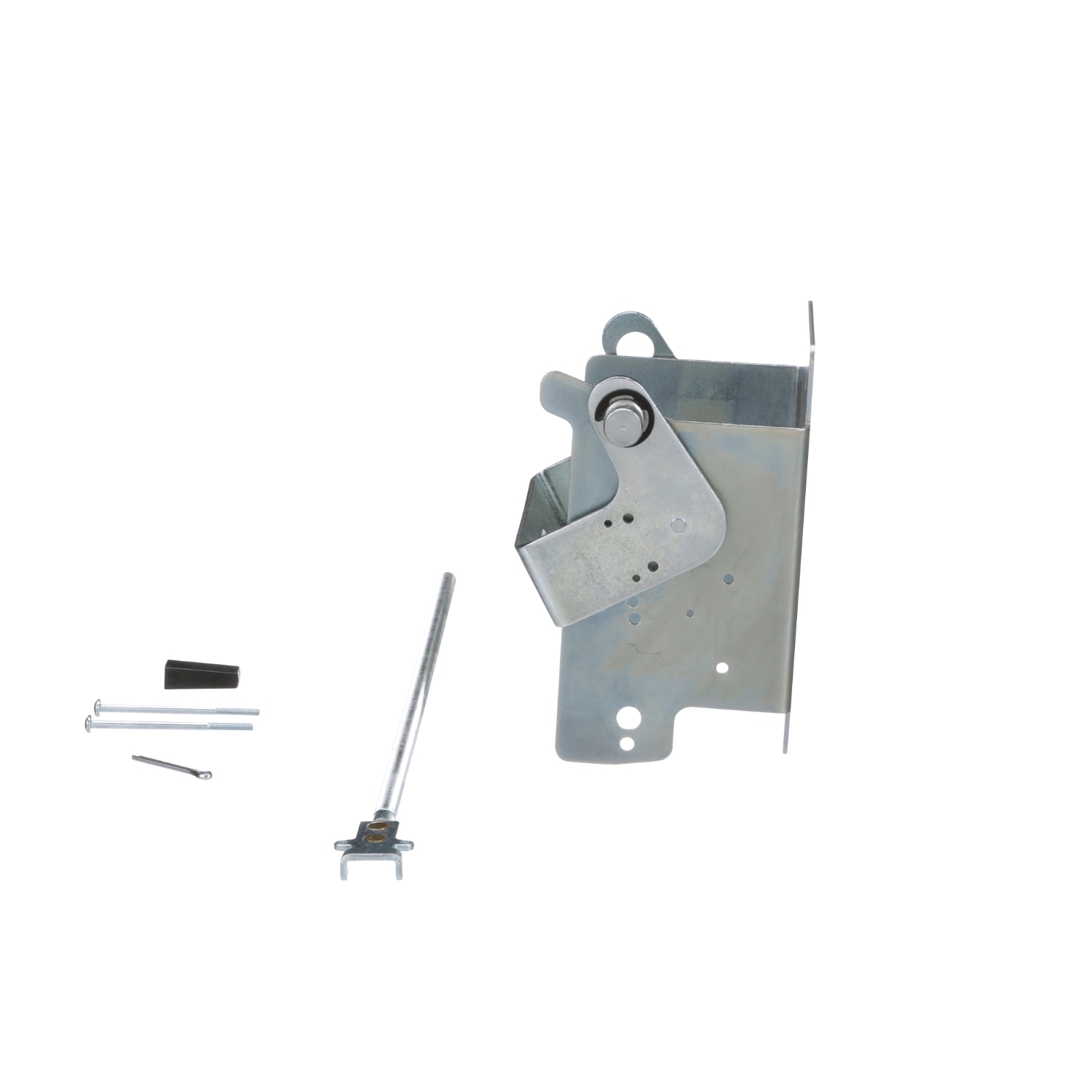

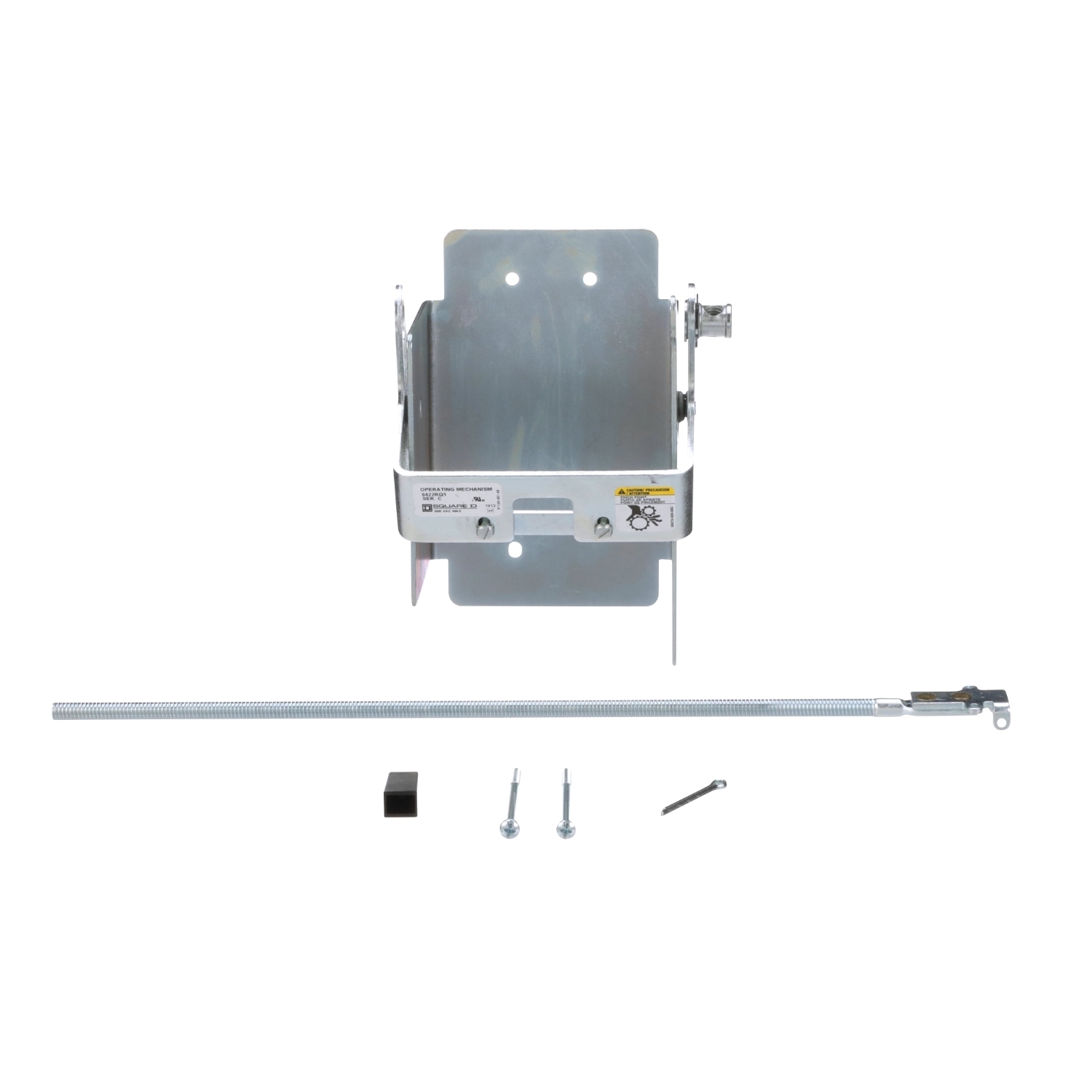

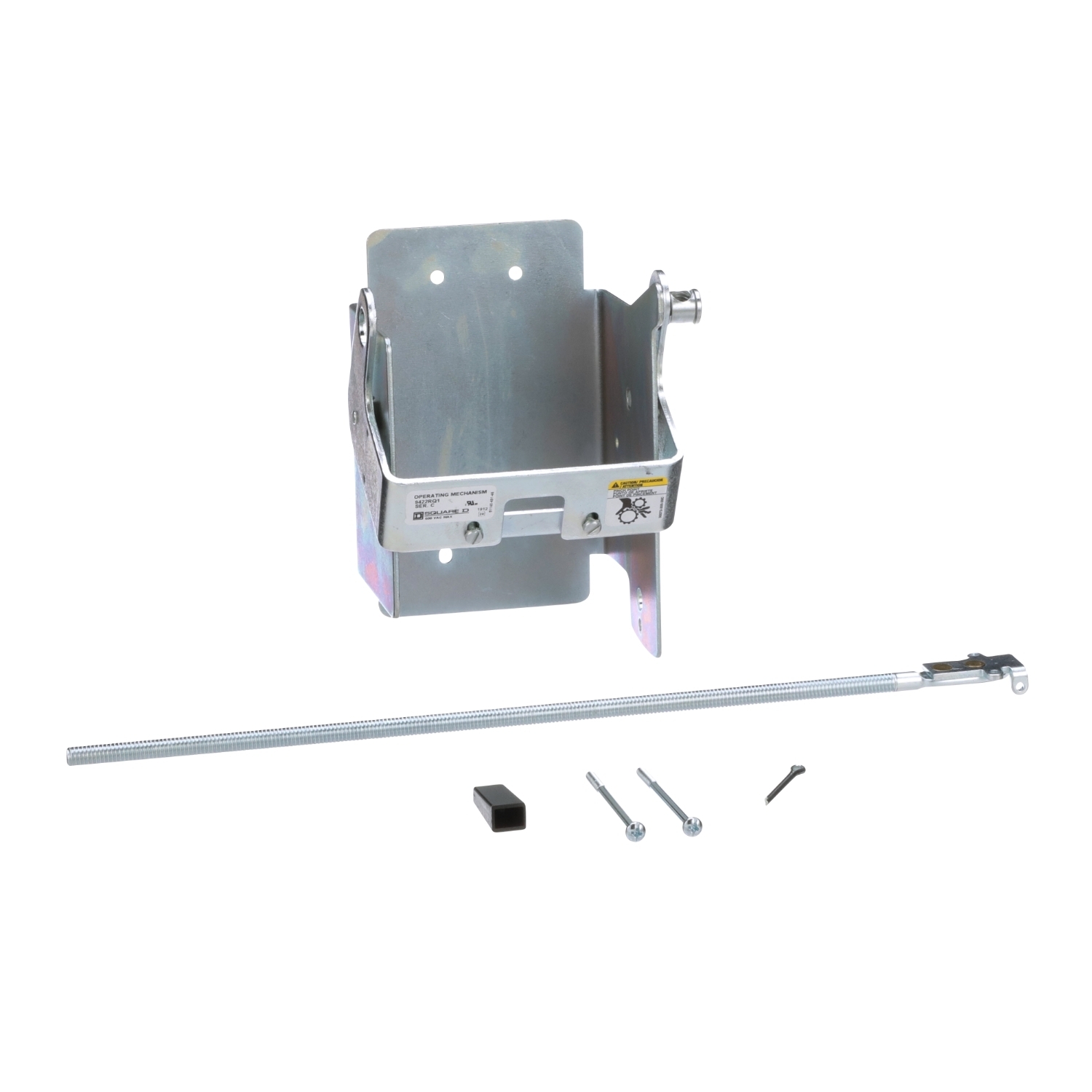

9422RQ1 Variable Depth Circuit Breaker Disconnect Operating Mechanism, Direct Mount Handle Mounting, For Use With PowerPact H or J-Frame and MG-NSF 2 or 3-Pole 250 A Circuit Breaker

MFR:
Schneider Electric
MFR #:
9422RQ1
UPC:
785901627319
Item #:
17997

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 3 pole PowerPacT H circuit breaker with a 150A frame size. This mechanism is also for a 3 pole PowerPacT J circuit breaker with a 250A frame size. The variable depth mounting range is 6.51 to 17.88 inches. Handle mechanism must be ordered separately. A 9422A1 or a 9422A2 handle mechanisms is normally used Operating mechanism is UL Component Recognized and CSA certified

Manuals & Documentation
Catalog Number 9422RQ1
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565865&lang=en-us
UPC 785901627319
GTIN 00785901627319
