SQUARE D

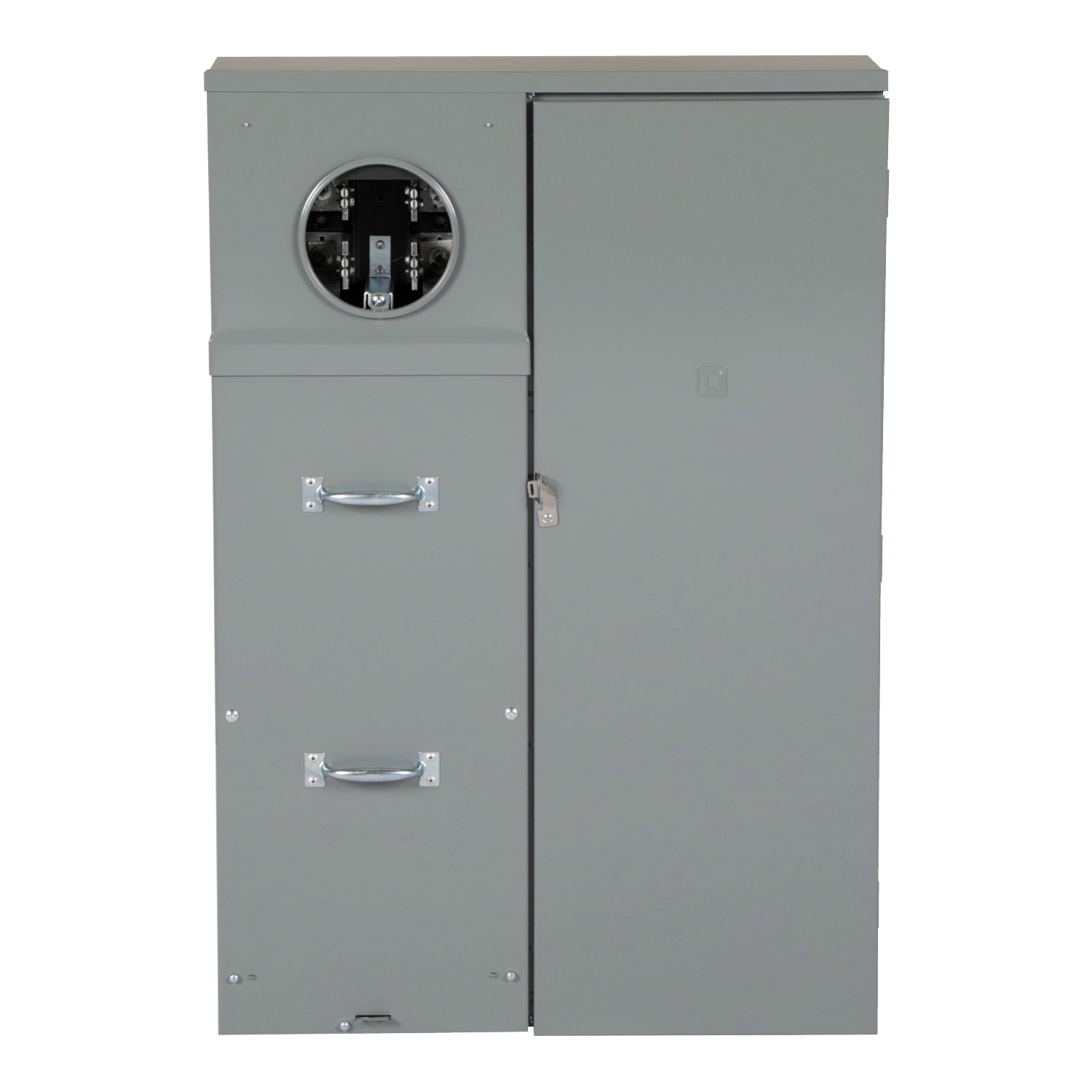

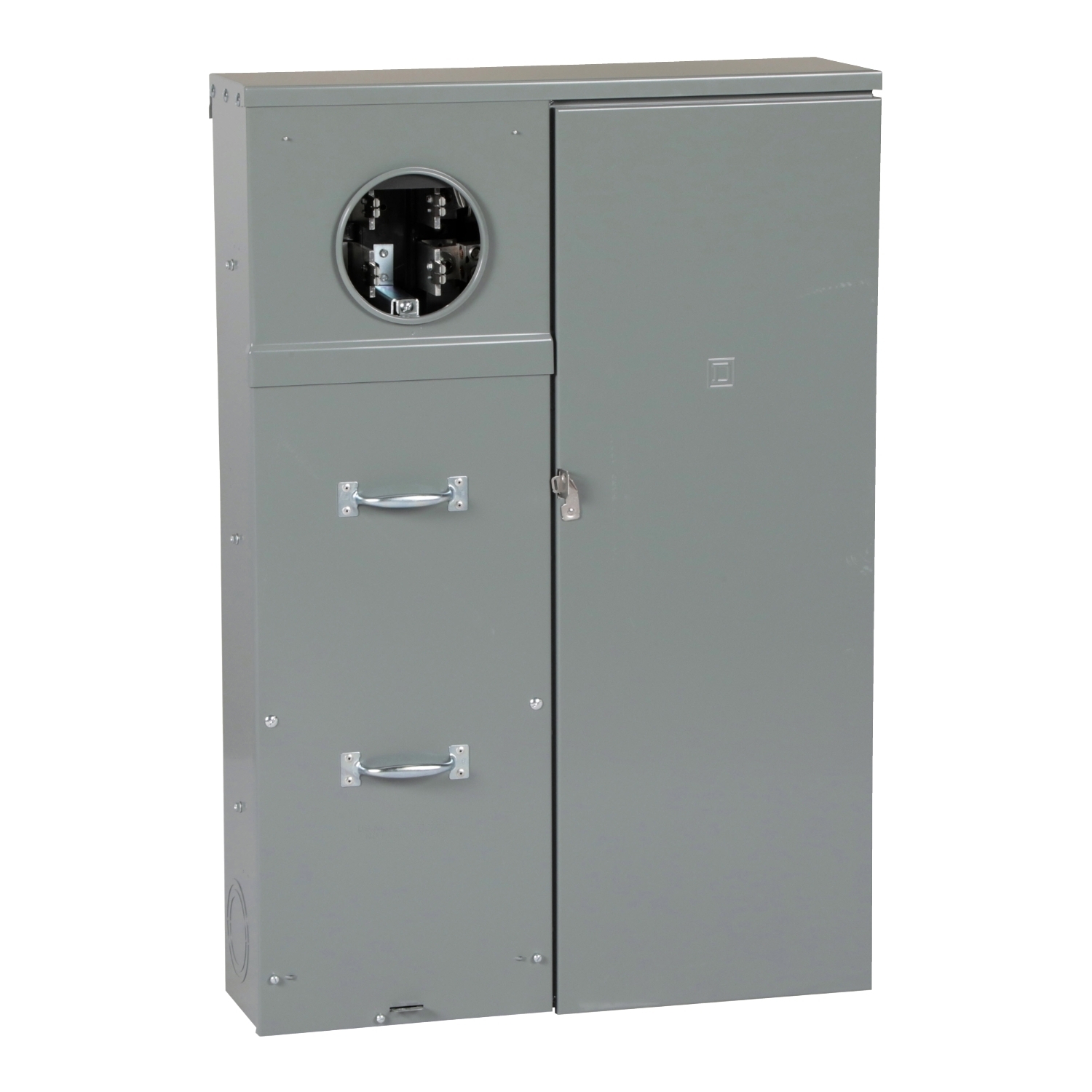

CU816D400CB QO Meter Main, CSED, 400 Amp, 1 Phase, Ringed, Test Block, UG, 120/240V, Surface, max 8 Spaces, 16 Circuits, Class 320

MFR:
Schneider Electric
MFR #:
CU816D400CB
UPC:
785901583608
Item #:
179826

Square D Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with test block bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Manuals & Documentation
Catalog Number CU816D400CB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Bypass Type Test Block
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=357239&lang=en-us
UPC 785901583608
GTIN 00785901583608
Width 28.25
Width UOM Inch
Height 43.0
Height UOM Inch
Depth 7.87 IN
