Appleton

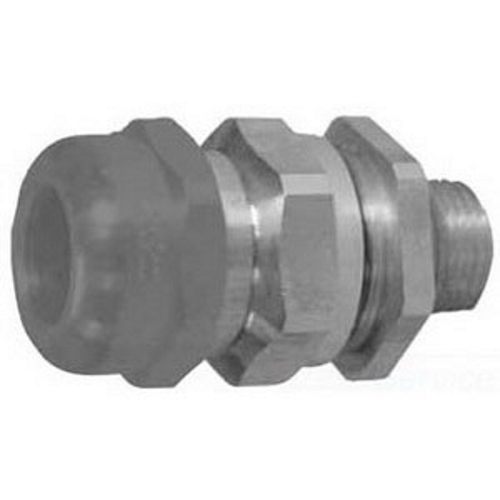

TMCX250A TMCX Explosion proof Cable Gland Connector, 1-1/2 in Trade, 2.33 to 2.68 in Cable Openings, Copper Free Aluminum

MFR:
Appleton Electric
MFR #:
TMCX250A
UPC:
781381083072
Item #:
179669

TMCX Series Cable Gland Connector, Size: 1-1/2 IN (M75), Material: Copperfree Aluminum, Enclosure: IP66, Nema Rating: NEMA 4X, Connection: NPT, Dimensions: 3.78 IN Length, Cable Armor Diameter: 2.25 - 2.41 IN End Stop In, 2.41 - 2.55 IN

Manuals & Documentation
Catalog Number TMCX250A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin India
Made in USA No
Application For Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
Connection NPT
Enclosure IP66
Material Copperfree Aluminum
NEMA Rating 4X
Special Features Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor; For hazardous locations; For use on horizontal or vertical run; Independent sealing and armor clamping; True 360 DEG grounding; Superior pull out prevention; Compact slim profile; Widest cable acceptance range; Supplied complete with epoxy sealing compound; Disconnectable design; Additional integral deluge proof seal for protection in extreme offshore and onshore environments; Explosionproof, dust-ignitionproof; Stainless steel grounding spring; LSF-TPE (halogen-free) bushing; Nylon stop and slip washers; Viton o-ring; LTCOMP270 replacement compound
Standard Class I, Division 1 And 2, Groups A, B, C, D, Class I, Zone 1, AExd IIC, Class II, Division 1 And 2 Groups E, F, G, Class III, UL 2225, 514B, 83827, CSA C22.2 No. 174, 025875, 249506
UPC 781381083072
GTIN 00781381083072
Item Type TMCX Series Cable Gland Connector
Size 1-1/2 IN (M75)
