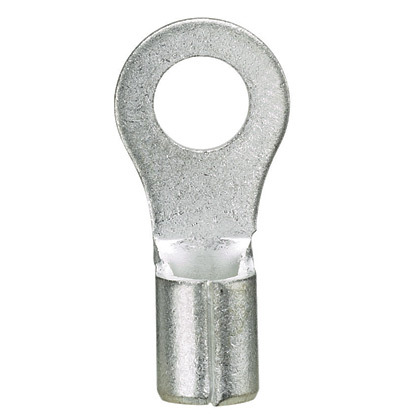

P10-6R-L Pan-Term Type P-R Non-Insulated Ring Terminal, 10 AWG Conductor, 0.78 in L, Brazed Seam/Serrated/Standard/Internal Serration/Insulation Support Barrel, Copper, Silver
- MFR:
- Panduit
- MFR #:
- P10-6R-L
- UPC:
- 074983802289
- Item #:
- 179106
P10-6R-L Pan-Term Type P-R Non-Insulated Ring Terminal, 10 AWG Conductor, 0.78 in L, Brazed Seam/Serrated/Standard/Internal Serration/Insulation Support Barrel, Copper, Silver
- MFR #:
- P10-6R-L
- UPC:
- 074983802289
- Item #:
- 179106
Ring Terminal, 12 10 AWG, #6 stud size, non-insulated, standard package.
Manuals & Documentation
| Catalog Number | P10-6R-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Standard |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Non-Insulated |
| Material | Copper |
| Standard | UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS20659-165) |
| UPC | 074983802289 |
| GTIN | 00074983802289 |
| Item Type | Ring Terminal |
| Size | #6 |
| Temperature Rating | 302 Degrees Fahrenheit (150 Degrees Celsius) |
| Voltage Rating | 2000 |
| Wire Size | #10 AWG |
