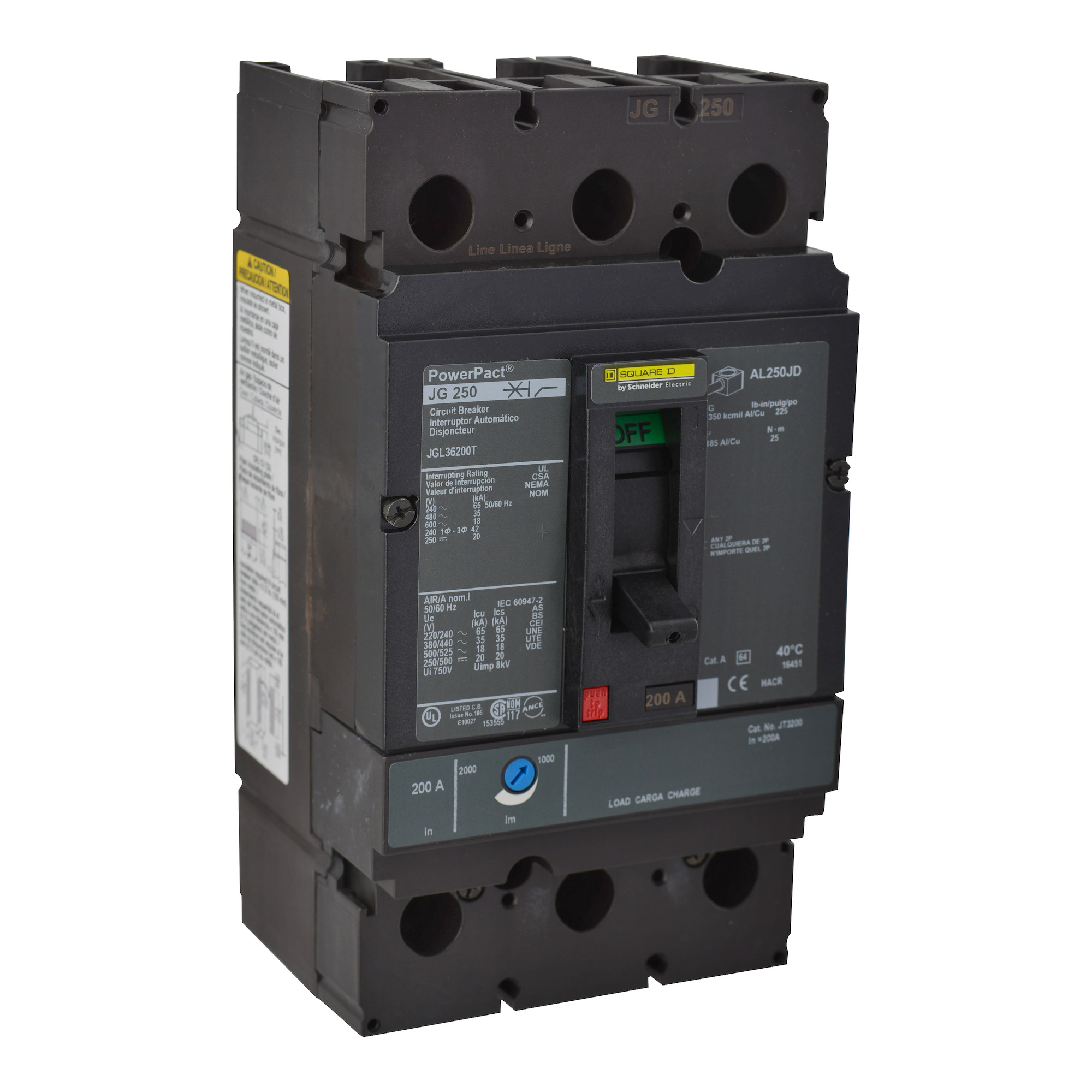

JGL36200T PowerPact 80% Rated Molded Case Circuit Breaker, 600 V AC, 200 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC/20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JGL36200T
- UPC:
- 785901695639
- Item #:
- 178922
JGL36200T PowerPact 80% Rated Molded Case Circuit Breaker, 600 V AC, 200 A, 65 kA at 240 V AC/35 kA at 480 V AC/18 kA at 600 V AC/20 kA at 250/500 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- JGL36200T
- UPC:
- 785901695639
- Item #:
- 178922
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit allows field-interchangeable trip units. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | JGL36200T |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425675&lang=en-us |
| UPC | 785901695639 |
| GTIN | 00785901695639 |
