Appleton

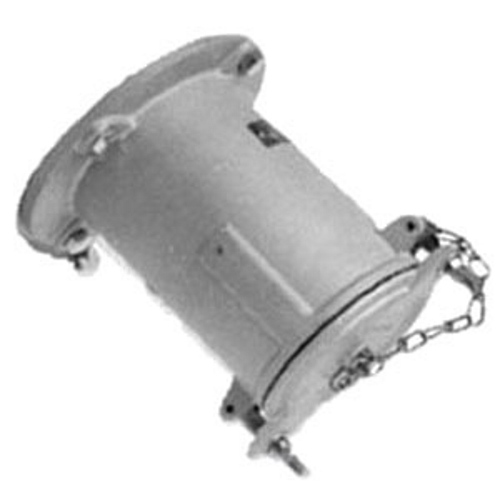

AR20044 Powertite AR Series 3-Phase Grounding Style 1 Pin and Sleeve Receptacle, 600 V AC/250 V DC, 200 A, 4 Poles, 4 Wires

MFR:
Appleton Electric
MFR #:
AR20044
UPC:
781381131575
Item #:
178313

Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maxi

Manuals & Documentation
Catalog Number AR20044
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For AP20044CD And AP20044E Plugs
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 4
Phase 3
Special Features Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Receptacle meets NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or clamp cover installed with wing nuts fully tightened; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Weatherproof spring door, raintight clamp cover
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381131575
GTIN 00781381131575
Item Type Grounding Style 1 Receptacle
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
