SQUARE D

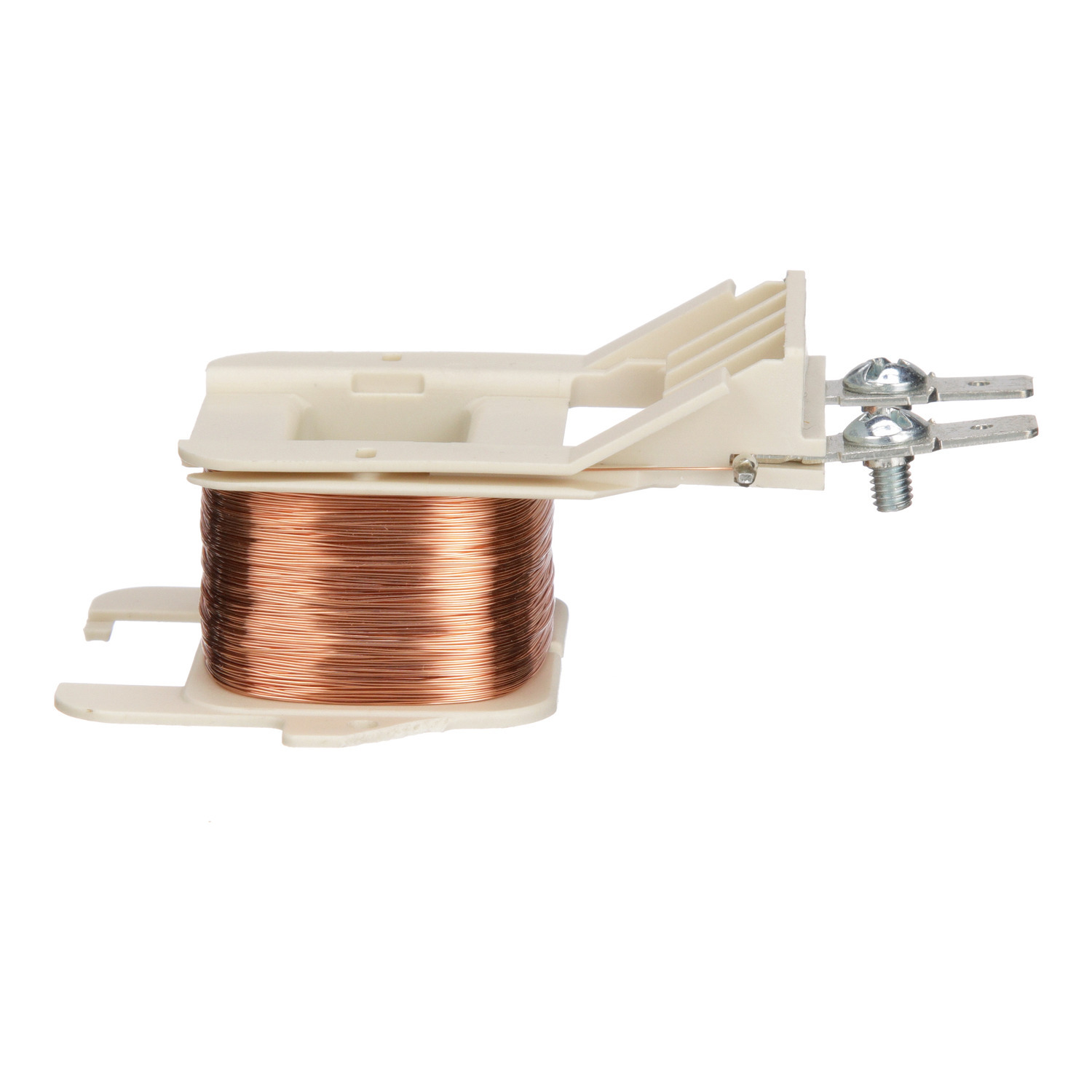

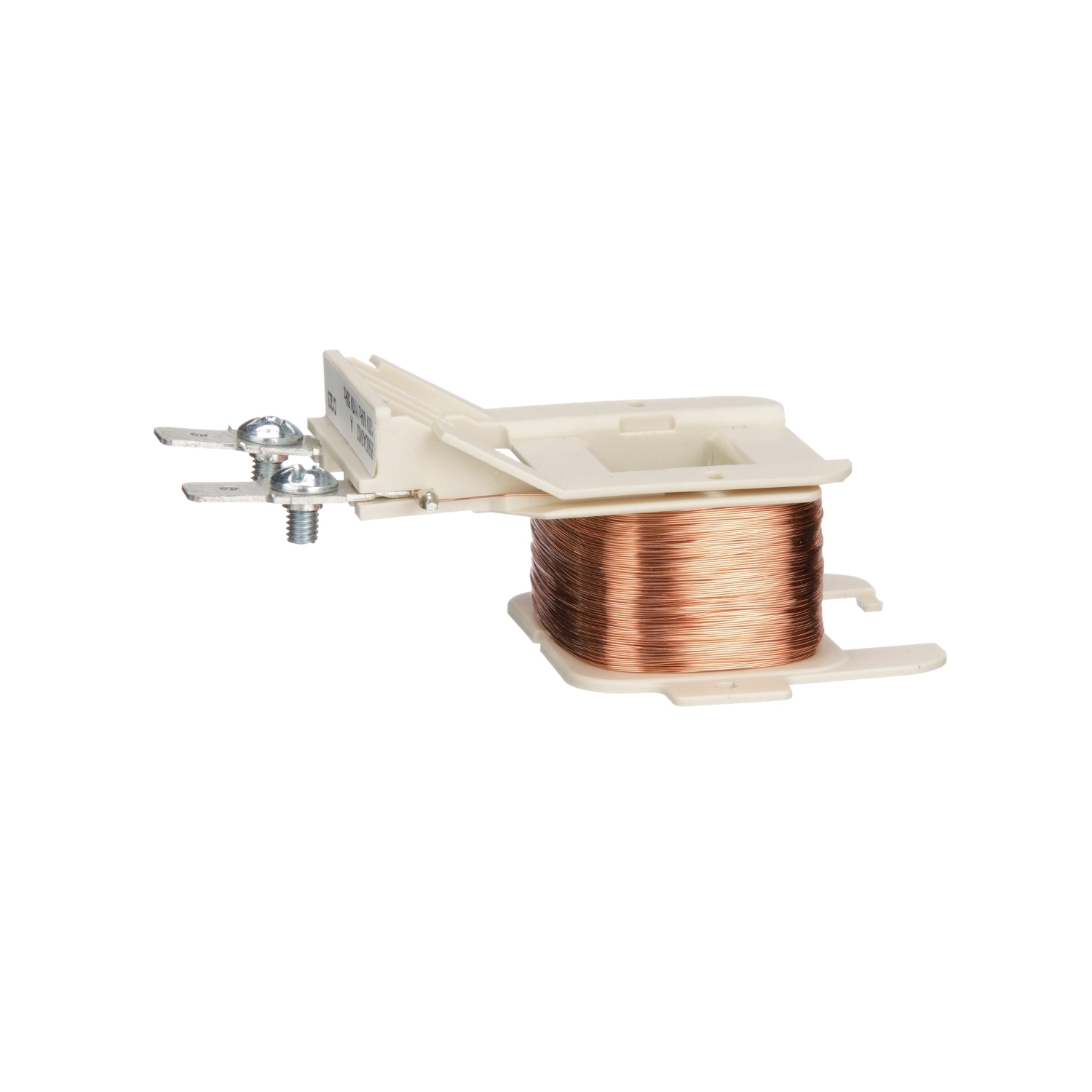

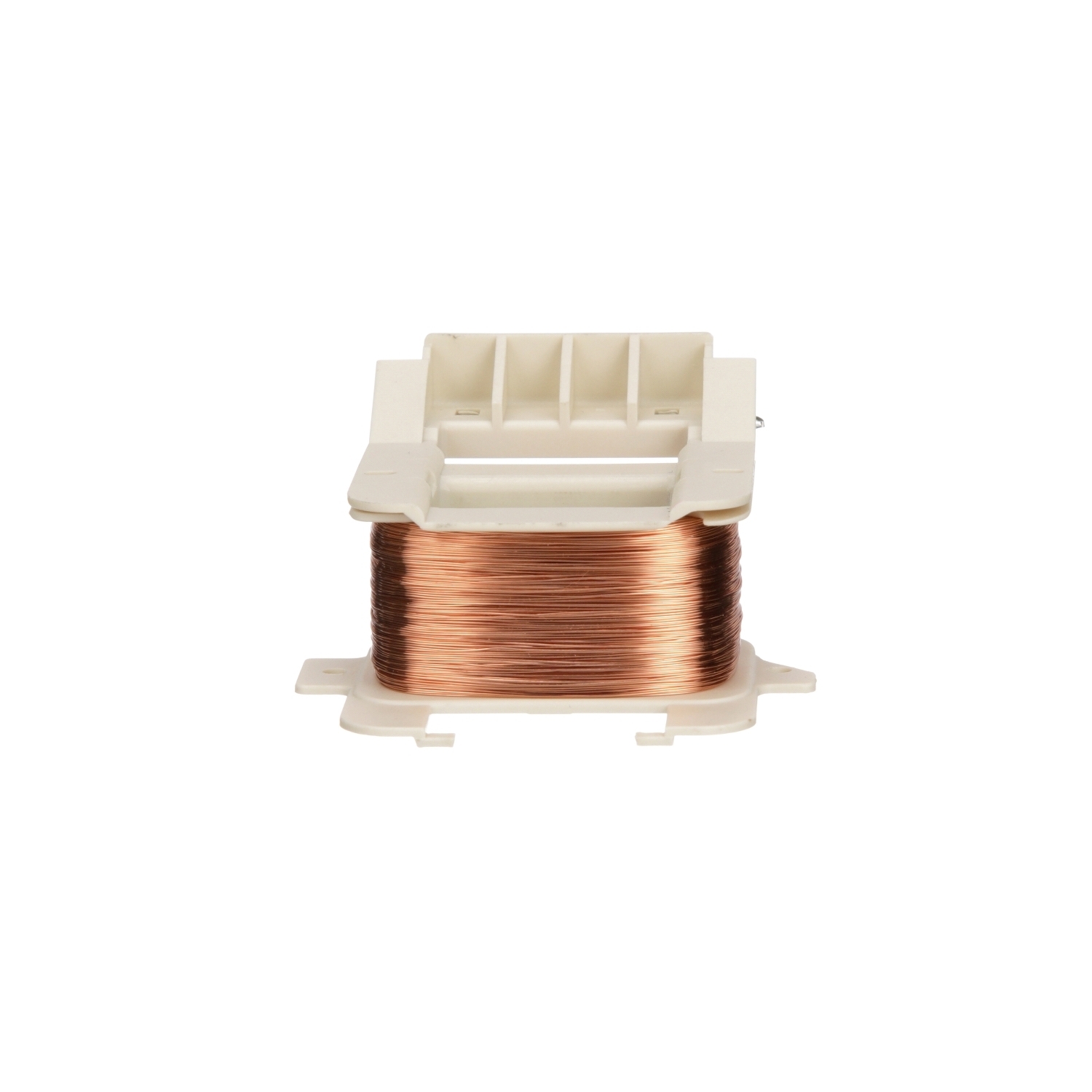

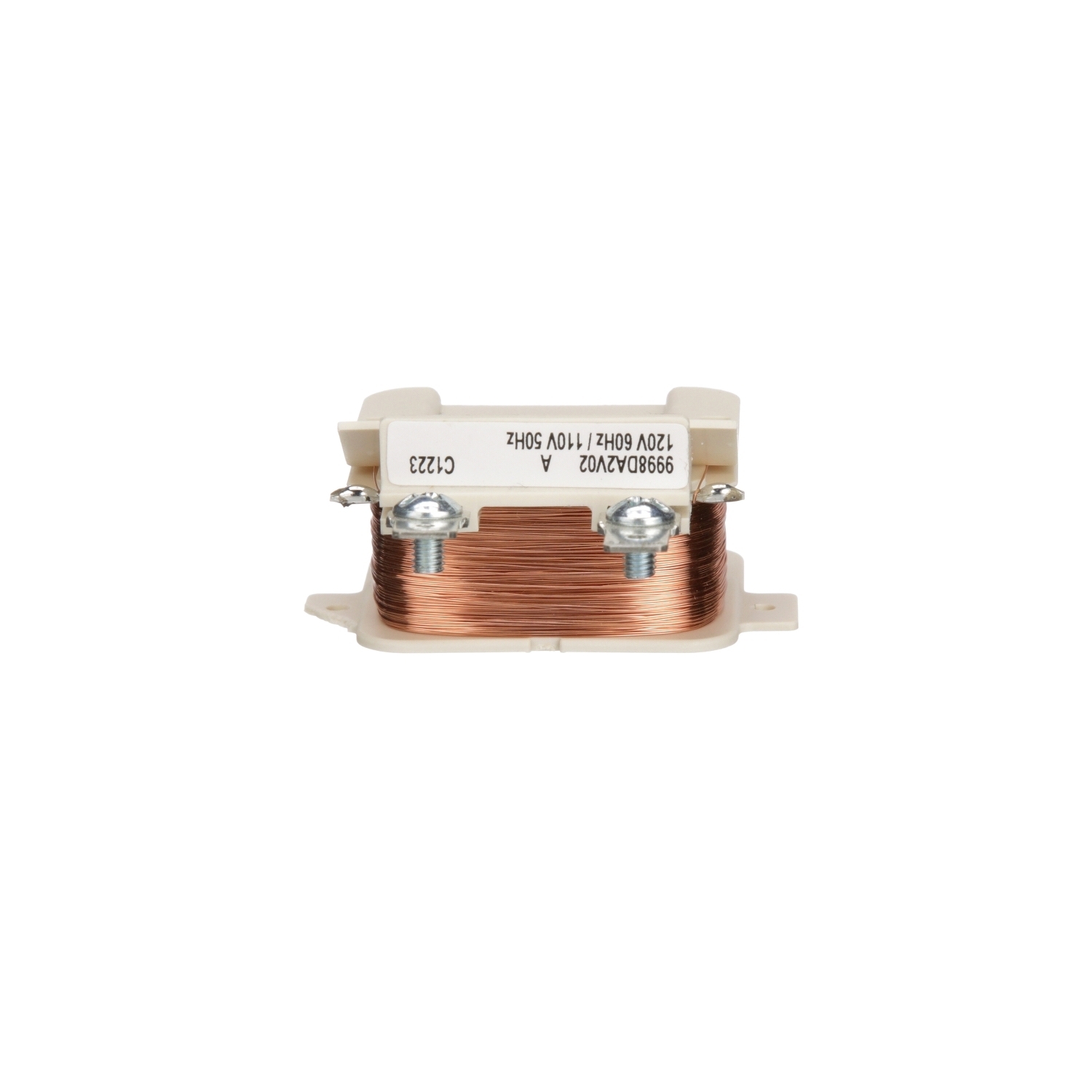

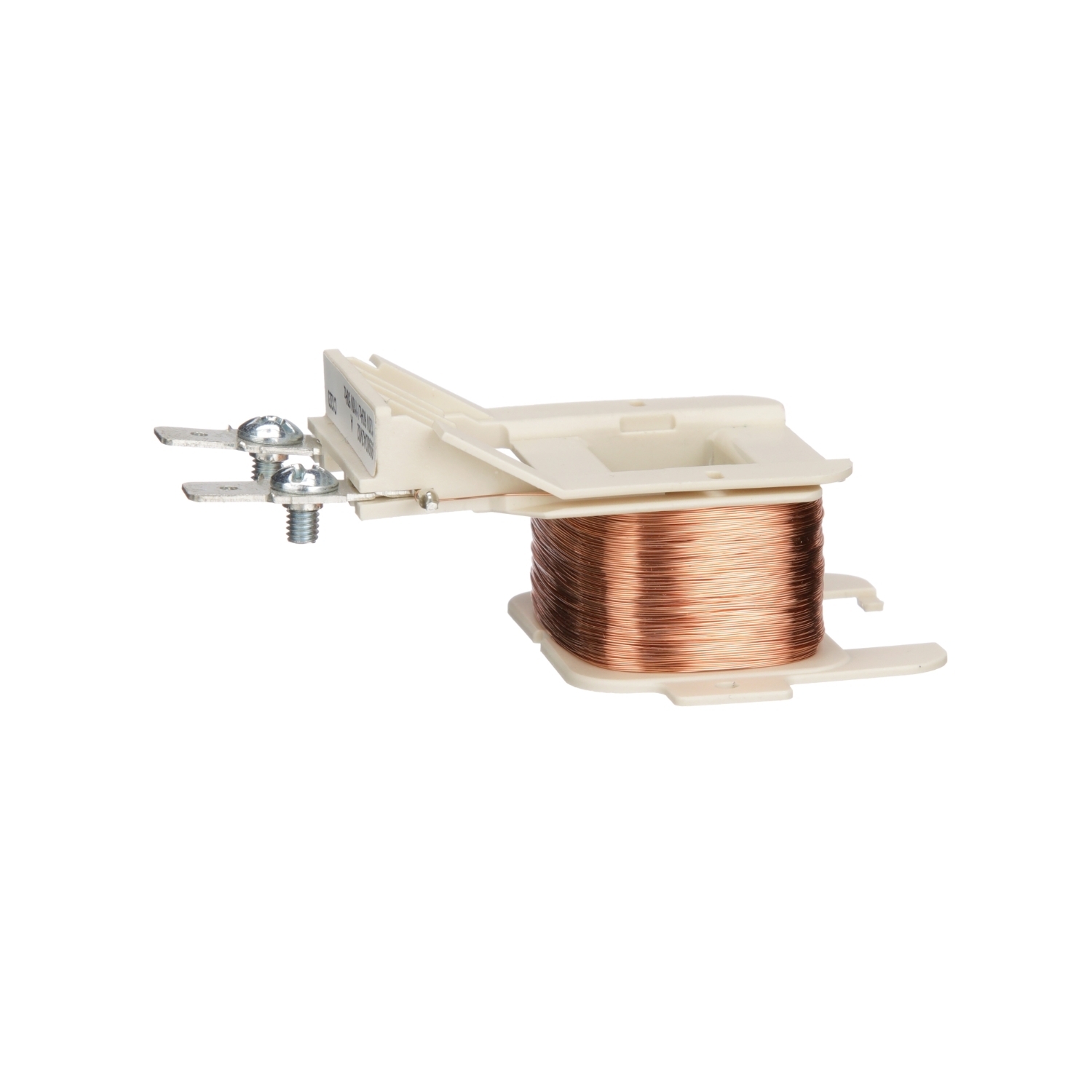

9998DA2V02 Definite Purpose Replacement Coil, 110/120 V AC, 50/60 Hz, For Use With Series B and C Contactor

MFR:
Schneider Electric
MFR #:
9998DA2V02
UPC:
785901081449
Item #:
177866

8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 110/120 VAC 50/60 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.

Manuals & Documentation
Catalog Number 9998DA2V02
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin China
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=566231&lang=en-us
UPC 785901081449
GTIN 00785901081449
Width 2.56
Width UOM Inch
Height 3.27
Height UOM Inch
Depth 3.67 IN
