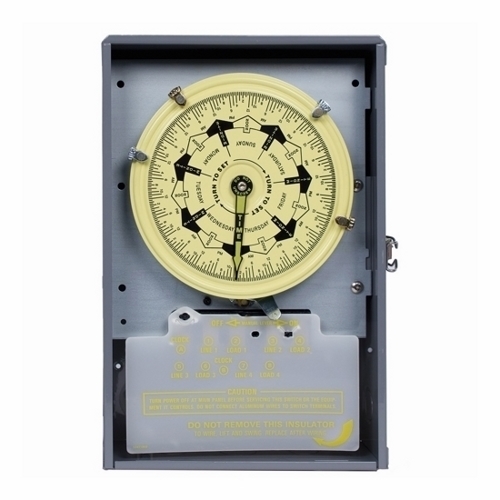

T7801BC T7000B Electro Mechanical Timer Switch With Carry-Over, 3-1/2 hr to 7 days Setting, 125 V AC, 10 hp, 2 Form C DPDT Contact, 2 Poles
- MFR:
- Intermatic
- MFR #:
- T7801BC
- UPC:
- 078275467033
- Item #:
- 17783
T7801BC T7000B Electro Mechanical Timer Switch With Carry-Over, 3-1/2 hr to 7 days Setting, 125 V AC, 10 hp, 2 Form C DPDT Contact, 2 Poles
- MFR #:
- T7801BC
- UPC:
- 078275467033
- Item #:
- 17783
These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.
Manuals & Documentation
| Catalog Number | T7801BC |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | France |
| Made in USA | No |
| Action | DPDT |
| Application | Commercial, Industrial, Residential, Indoor, HVACR |
| Connection | Screw Terminal |
| Contact Configuration | NO/NC |
| Contact Rating | 40 AMP @ 120 - 480 VAC |
| Enclosure | NEMA 1 Steel |
| Mounting | Wall |
| Number of Poles | 2 |
| Special Features | Features: Separate clock motor terminals for switching loads not on-line voltage, Carryover automatically rewinds when power resumes, One hour of rewinding time for every two hours of power outage, 1 Year Warranty |
| Standard | cCSAus Certified, HVACR |
| UPC | 078275467033 |
| GTIN | 00078275467033 |
| Item Type | Electromechanical |
| Size | 12-1/2 HEIGHT X 8-1/4 WIDTH X 4 DEPTH IN, 31.7 HEIGHT X 21.0 WIDTH X 10.2 CM |
| Operating Temperature | -40 to +130 DEG F, -40 to +54 DEG C |
| Timing Range | 3-1/2 HR - 7 DAYS |
| Voltage Rating | 125 |
| Wattage | 3 W |
