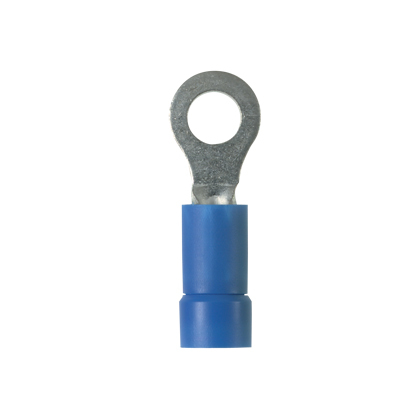

PV14-14R-C Pan-Term Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.12 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PV14-14R-C
- UPC:
- 074983801220
- Item #:
- 177541
PV14-14R-C Pan-Term Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.12 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
- MFR #:
- PV14-14R-C
- UPC:
- 074983801220
- Item #:
- 177541
The PV14-14R-C Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV14-14R-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983801220 |
| GTIN | 00074983801220 |
| Item Type | Ring Terminal |
| Size | 1/4" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
