Square D

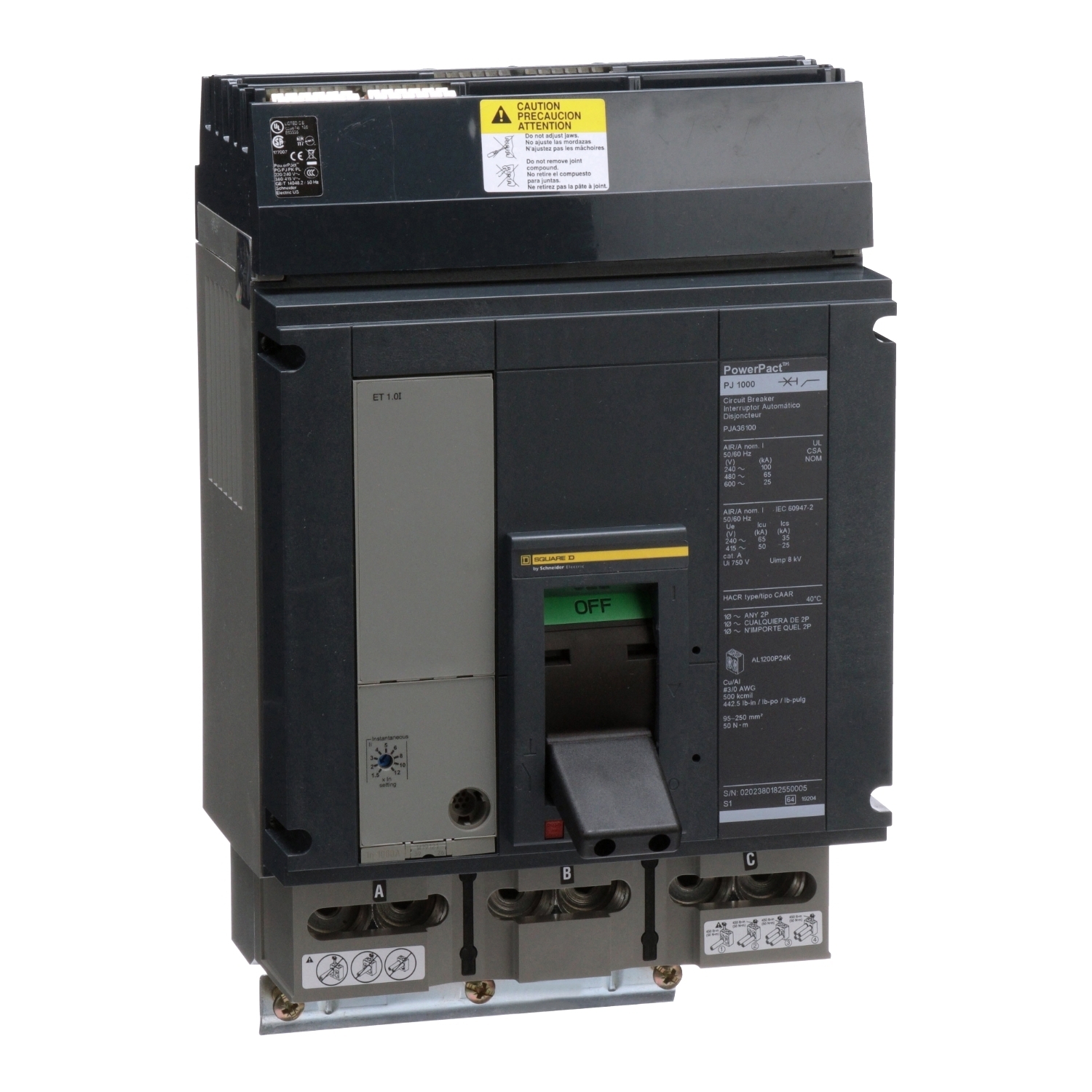

PJA36100 Molded Case Circuit Breaker, 1000 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
PJA36100
UPC:
785901280903
Item #:
177525

PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number PJA36100
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Actuator Toggle
Application Distribution;HACR rated
Connection I-Line connection, line;lugs, load; 4 x AWG 3/0...500 kcmil aluminium/copper
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=432277&lang=en-us
UPC 785901280903
GTIN 00785901280903
Item Type Circuit breaker
Width 8.27
Width UOM Inch
Height 16.16
Height UOM Inch
Depth 8.05 IN
Trip Type Electronic, basic, ET 1.0I, I
