7100010200 82-F Flexible Resin Splice Kit, 1/5 kV, 2/0 to 4/0 AWG Conductor

MFR:
3M Electrical Products
MFR #:
82-F2
UPC:
051128591772
Item #:
1774

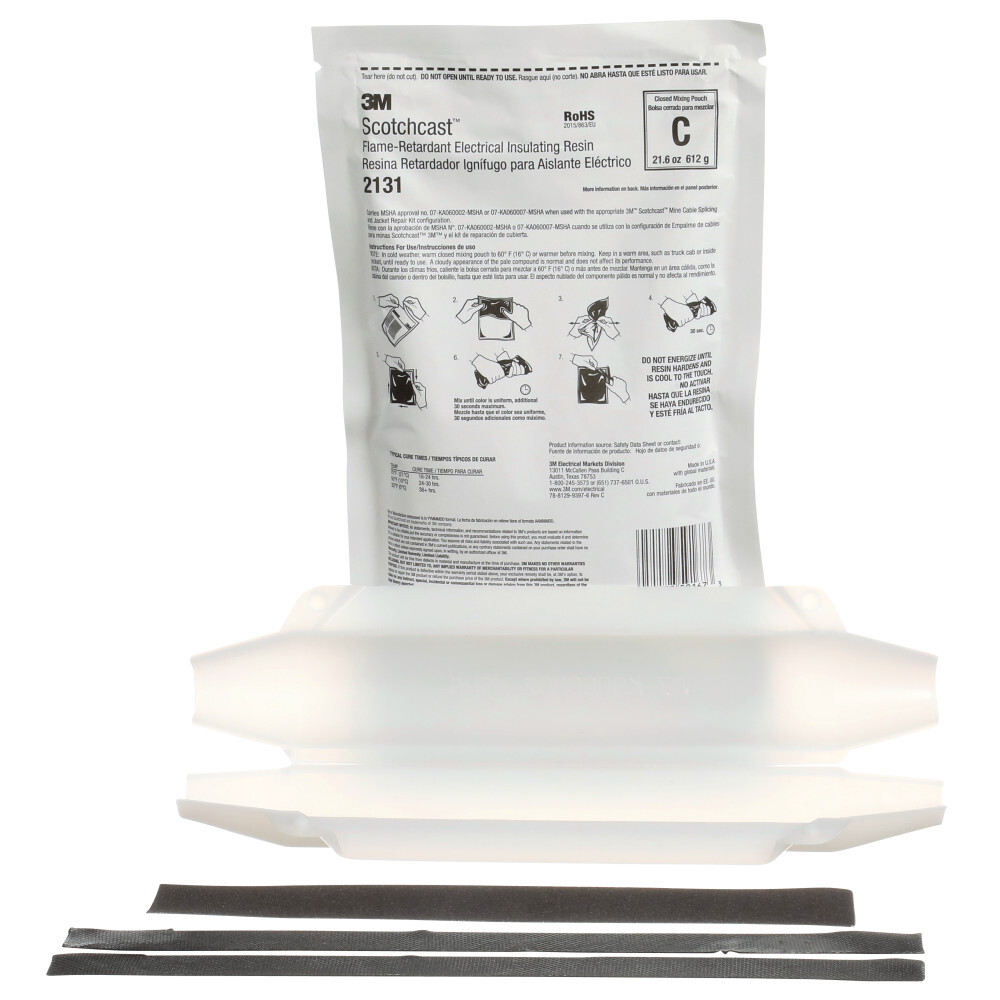

3M 82 F Series Resin Inline Cable Splice Kit includes Scotch rubber splicing tape 23, Scotchcast compound 2131 and Three M Ite Elek Tro Cut abrasive cloth 80J grit. The semi flexible compound offers permanent splicing to bend with the cable for easy installation, reeling and handling. The smooth, tapered splice prevents cable hang ups and splice end lifting. The flame retardant compound 2131 is a self curing resin that bonds to itself and modern cable jackets. This kit is perfect for splicing 1 kV rated multiple conductors and 5 kV rated single conductors. RoHS 2011/65/EU Compliant and MSHA Approved.

Manuals & Documentation
Catalog Number 82-F2
Manufacturer 3M Electrical Products
Brand Scotchcast
Country of Origin United States
Made in USA Yes
Application For use with inline compression connectors
Special Features For use on unshielded, portable power cables
RoHS URL RoHS 2011/65/EU compliant without exemption
UPC 051128591772
GTIN 00051128591772
Item Type Flexible Splice
