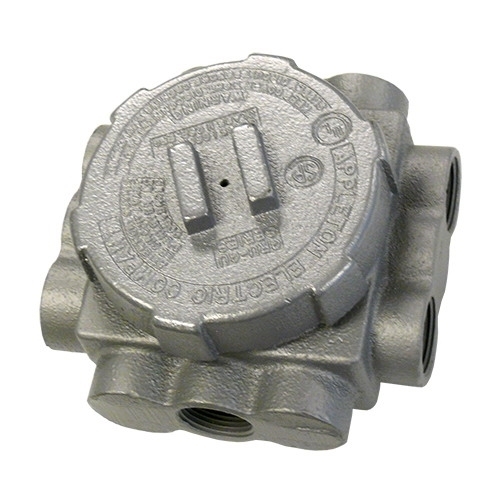

Explosionproof Conduit Outlet Box, Dust-Ignitionproof, Series: GRUJ, 3/4 in Size, 3-1/4 in Cover Opening, 25 cu-in Capacity, For Use With: Threaded Metal Conduit System, Malleable Iron, Triple Coated Finish, 4.88 in H x 4.88 in W x 1.5 in D Dimensions
- MFR:
- Appleton Electric
- MFR #:
- GRUJ-1P
- UPC:
- 781381445658
- Item #:
- 176947
Explosionproof Conduit Outlet Box, Dust-Ignitionproof, Series: GRUJ, 3/4 in Size, 3-1/4 in Cover Opening, 25 cu-in Capacity, For Use With: Threaded Metal Conduit System, Malleable Iron, Triple Coated Finish, 4.88 in H x 4.88 in W x 1.5 in D Dimensions
- MFR #:
- GRUJ-1P
- UPC:
- 781381445658
- Item #:
- 176947
UNILETS GRUJ Outlet Box, Number Of Outlet: 7, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN 3/4 IN Hub On Each Side, (2) 3/4 IN 3/4 IN Hub On Top, (1) 3/4 IN 3/4 IN Hub At Bottom, Cubic Capacity: 25 CU-IN, Knockouts: No,
Manuals & Documentation
Features
- Explosion proof
- Dust-Ignition proof
- For use with threaded metal conduit
- UL listed
- CSA certified
| Catalog Number | GRUJ-1P |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (2) 3/4 IN 3/4 IN Hub On Each Side, (2) 3/4 IN 3/4 IN Hub On Top, (1) 3/4 IN 3/4 IN Hub At Bottom |
| Cubic Capacity | 25 CU IN |
| Knockouts | No |
| Material | Malleable Iron |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with cover; General purpose wiring; Union hubs permit easy wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance; Furnished with close-up plugs for all but three 3/4 IN hubs |
| Standard | UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381445658 |
| GTIN | 00781381445658 |
| Item Type | GRUJ Outlet Box |
| Length | 7.5000 |
| Length UOM | Inch |
| Width | 7.0000 |
| Width UOM | Inch |
| Height | 4.5000 |
| Height UOM | Inch |
| Weight | 6.000 |
| Weight UOM | Pounds |
| Size | 3/4 |
