Appleton

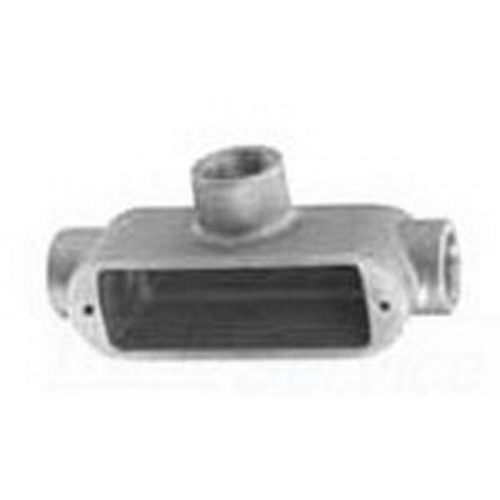

T29 Unilets Type T Conduit Outlet Body, 3/4 in Hub, 9, 8.3 cu-in, Copper Free Aluminum, Natural

MFR:
Appleton Electric
MFR #:
T29
UPC:
781381094375
Item #:
176823

FM9 UNILETS Type T Conduit Outlet Body, Hub Size: 3/4 IN, Form: 9, Length: 5.69 IN, Width: 2.38 IN, Height: 1.81 IN, Material: Aluminum, Finish: Natural Aluminum, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number

Manuals & Documentation
Catalog Number T29
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection Tapered Female Threaded
Finish Natural Aluminum
Form 9
Hub Size 3/4 IN
Material Aluminum
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Roomy interiors: deep body cavity provides increased volume allowing higher wiring capacity; Completely interchangeable with Crouse-Hinds Mark9 bodies, gaskets and covers; Equivalent FM9 and Mark 9 units have identical applications and installation dimensions; Aluminum Unilets: produced from a high-strength copperfree aluminum alloy, for light weight and high corrosion resistance; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Flat back design fits flush against flat surfaces for more stable installation and provid
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381094375
GTIN 00781381094375
Item Type Type T Conduit Outlet Body
Length 5.69
Length UOM Inch
Width 2.38
Width UOM Inch
Height 1.81
Height UOM Inch
