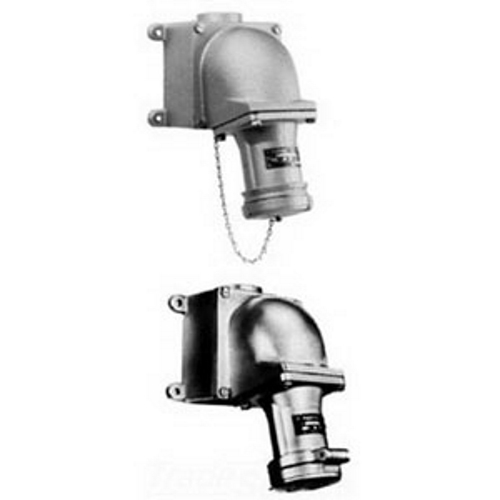

Powertite; Pin and Sleeve Receptacle With AJA Mounting Box; 60 Amp, 600 Volt AC, 250 Volt AC/DC, 4-Pole, 3-Wire, Pressure Wire Terminal, 1-1/2 Inch Hub
- MFR:
- Appleton Electric
- MFR #:
- ADJA6034-150
- UPC:
- 781381157360
- Item #:
- 176277
Powertite; Pin and Sleeve Receptacle With AJA Mounting Box; 60 Amp, 600 Volt AC, 250 Volt AC/DC, 4-Pole, 3-Wire, Pressure Wire Terminal, 1-1/2 Inch Hub
- MFR #:
- ADJA6034-150
- UPC:
- 781381157360
- Item #:
- 176277
Appleton Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, Mounting: Surface Mount With 1-1/2 IN Hub, Connection: Pressure Wire Terminal, Temperature Rating: -40 To 107 DEG C, Motor Horsepower: 30 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 7.88 IN Width X 9.63 IN Height X 8 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For ACP6034BC Metallic And NMACP6034BC Nonmetallic Clamping Ring Plugs
Manuals & Documentation
| Catalog Number | ADJA6034-150 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For ACP6034BC Metallic And NMACP6034BC Nonmetallic Clamping Ring Plugs |
| Connection | Pressure Wire Terminal |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Mounting | Surface |
| NEMA Rating | 3, 3R, 4, 4X |
| Number of Poles | 4 |
| Number of Wires | 3 |
| Phase | 3 |
| Special Features | Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 5/16 IN; Weatherproof spring door, brass with beryllium copper springs |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381157360 |
| GTIN | 00781381157360 |
| Item Type | Grounding Style 2 Receptacle With AJA Mounting Box |
| Temperature Rating | -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex) |
