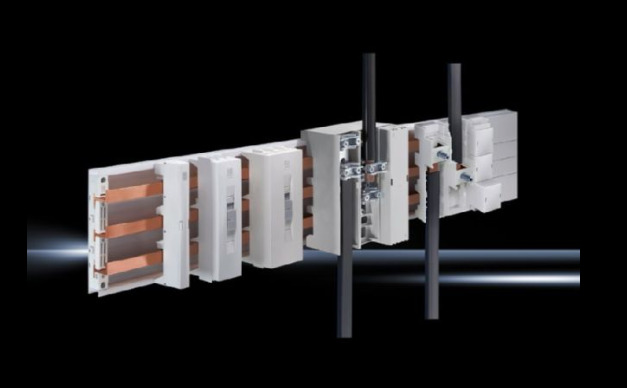

3439010 Connection Adapter, 690 V AC, 600 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top/Bottom, 35 to 240 sq-mm Wire Size, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, ABS, Pale Gray
- MFR:
- Rittal
- MFR #:
- 3439010
- UPC:
- 639889346086
- Item #:
- 175707
3439010 Connection Adapter, 690 V AC, 600 A, 3-Pole, 3-Phase, Compact Enclosure, Cable Outlet Top/Bottom, 35 to 240 sq-mm Wire Size, For Use With 5/10 mm Cross Section H Busbar, 60 mm Center-to-Center Spacing Bus System, ABS, Pale Gray
- MFR #:
- 3439010
- UPC:
- 639889346086
- Item #:
- 175707
Connection adaptors, material: Cover: ABS, Chassis: Polyamide (PA 6.6)., Chassis 3439.010: Fibreglass-reinforced, thermoplastic polyester (PBT), Fire protection corresponding to UL 94-V0, color: RAL 7035, description: For connecting round conductors or laminated copper bars. For bar systems with 60 mm centre-to-centre spacing.
| Catalog Number | 3439010 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | Germany |
| Made in USA | No |
| Amperage Rating | 600 |
| Color | RAL 7035 |
| Enclosure | Compact Enclosure |
| Material | ABS (Cover), Polyamide (PA 6.6) (Chassis), Fiberglass-Reinforced, Thermoplastic Polyester (PBT) |
| Number of Poles | 3 |
| Special Features | Features: Fire Protection |
| Standard | UL 94-V0 Listed, UL Recognized |
| UPC | 639889346086 |
| GTIN | 00639889346086 |
| Item Type | Connection Adapter |
| Size | 247 (H) x 180 (W) |
| Voltage Rating | 690 |
