Top Seller
SQUARE D

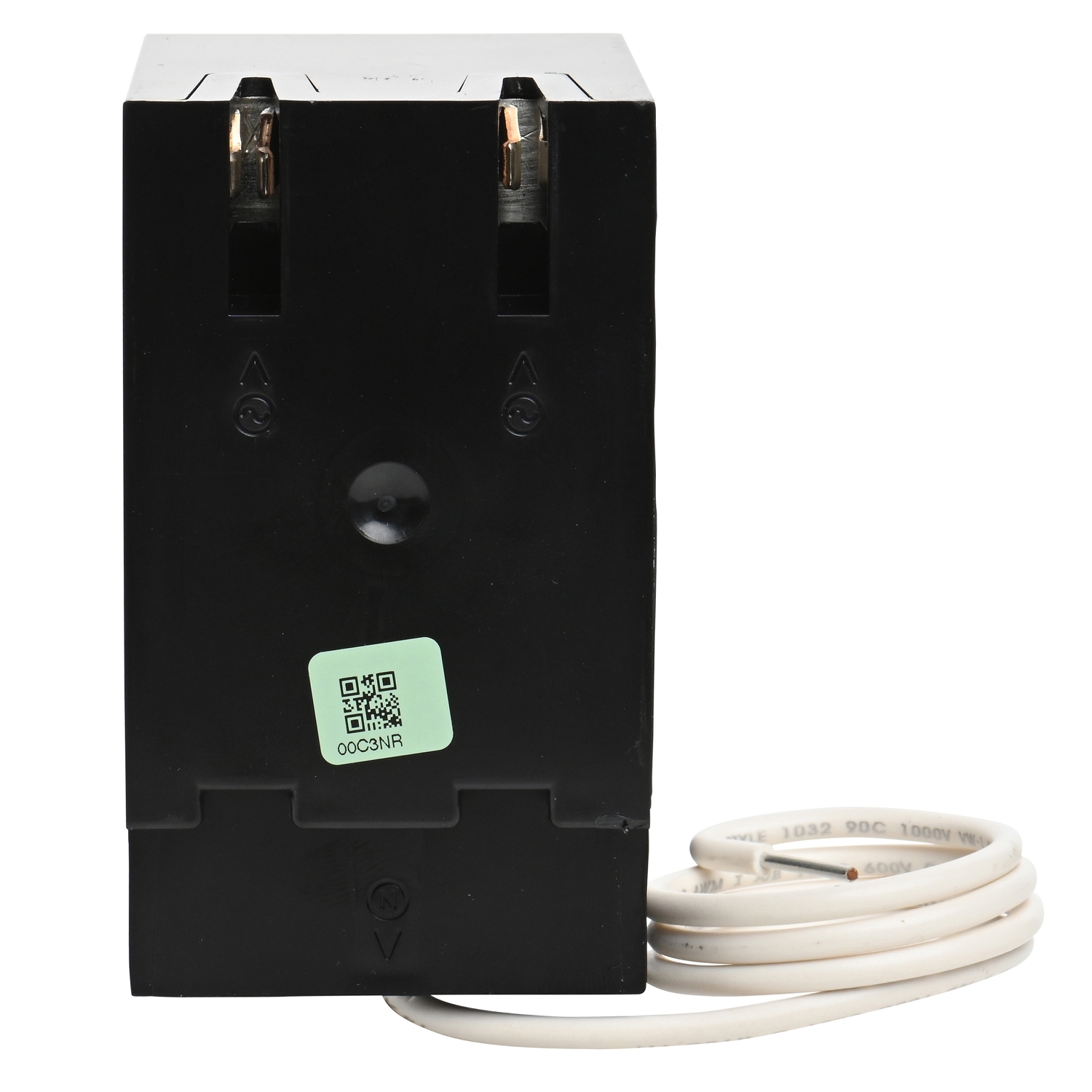

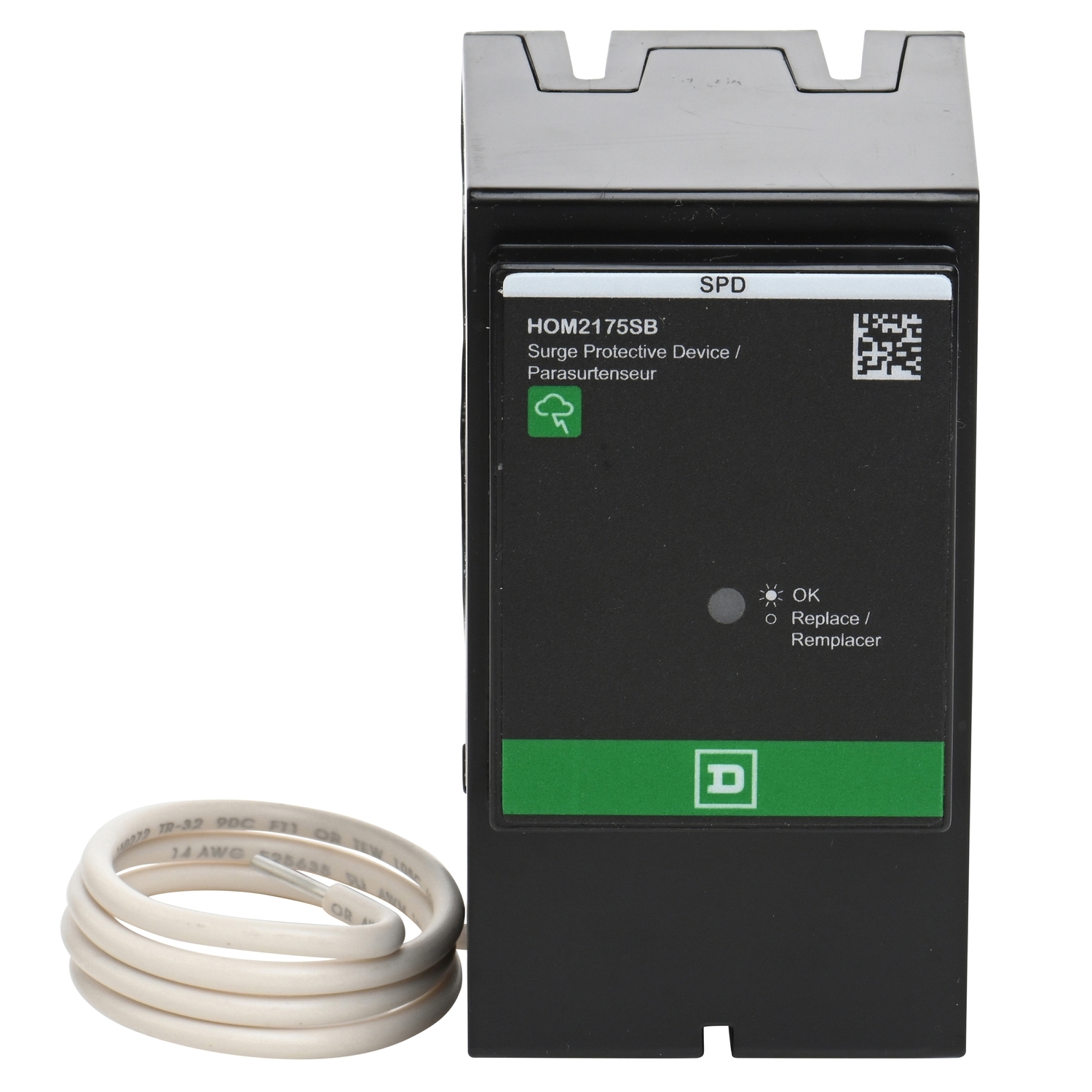

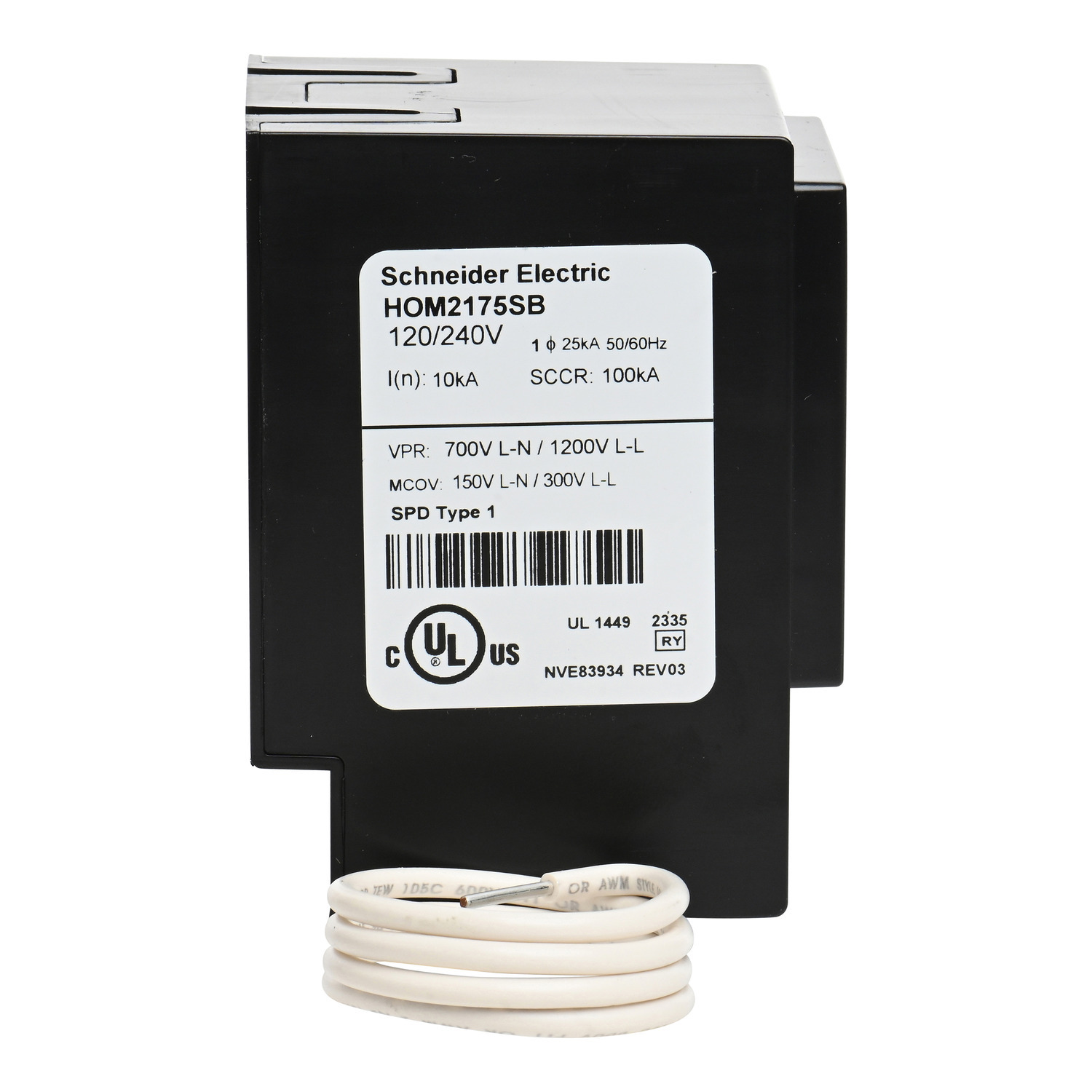

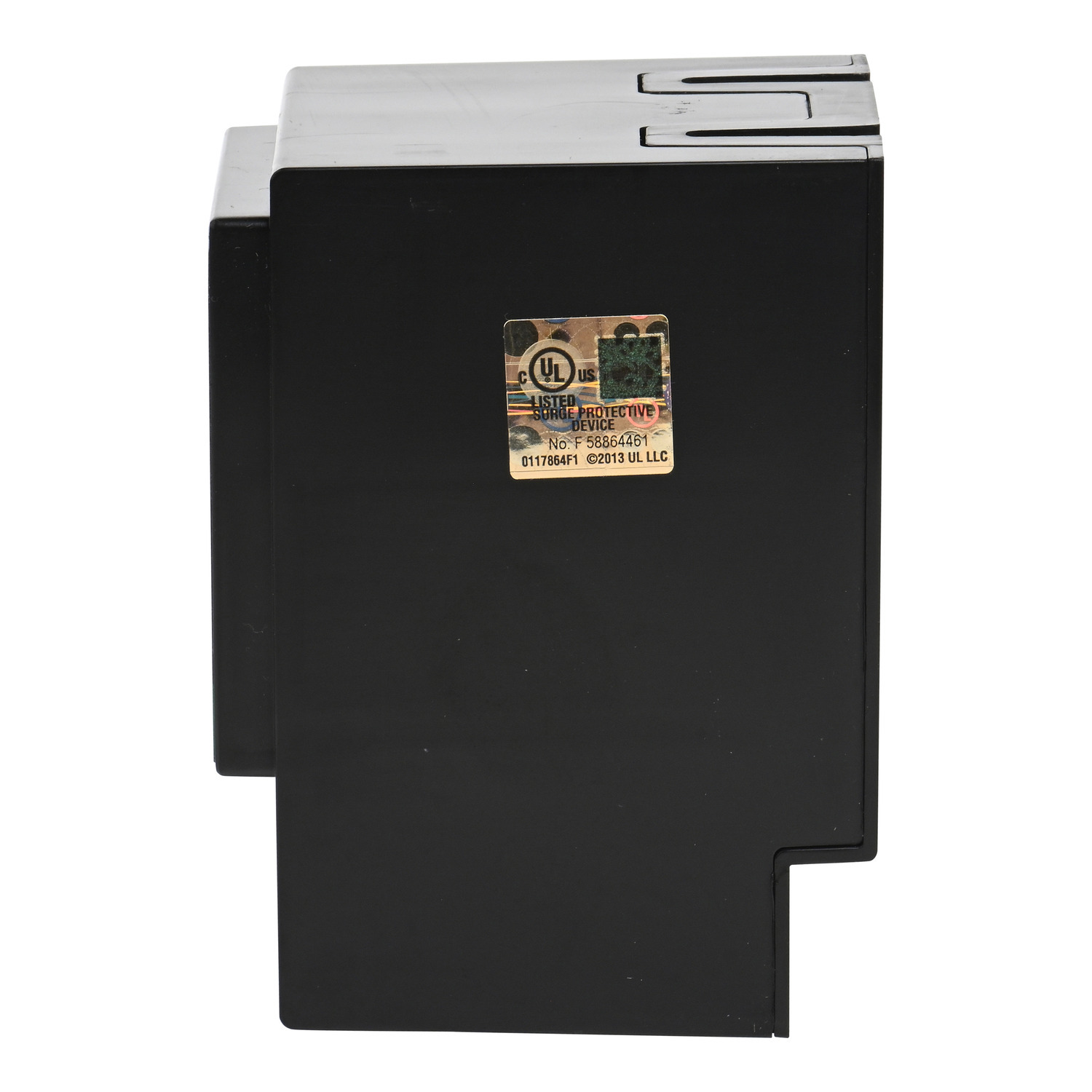

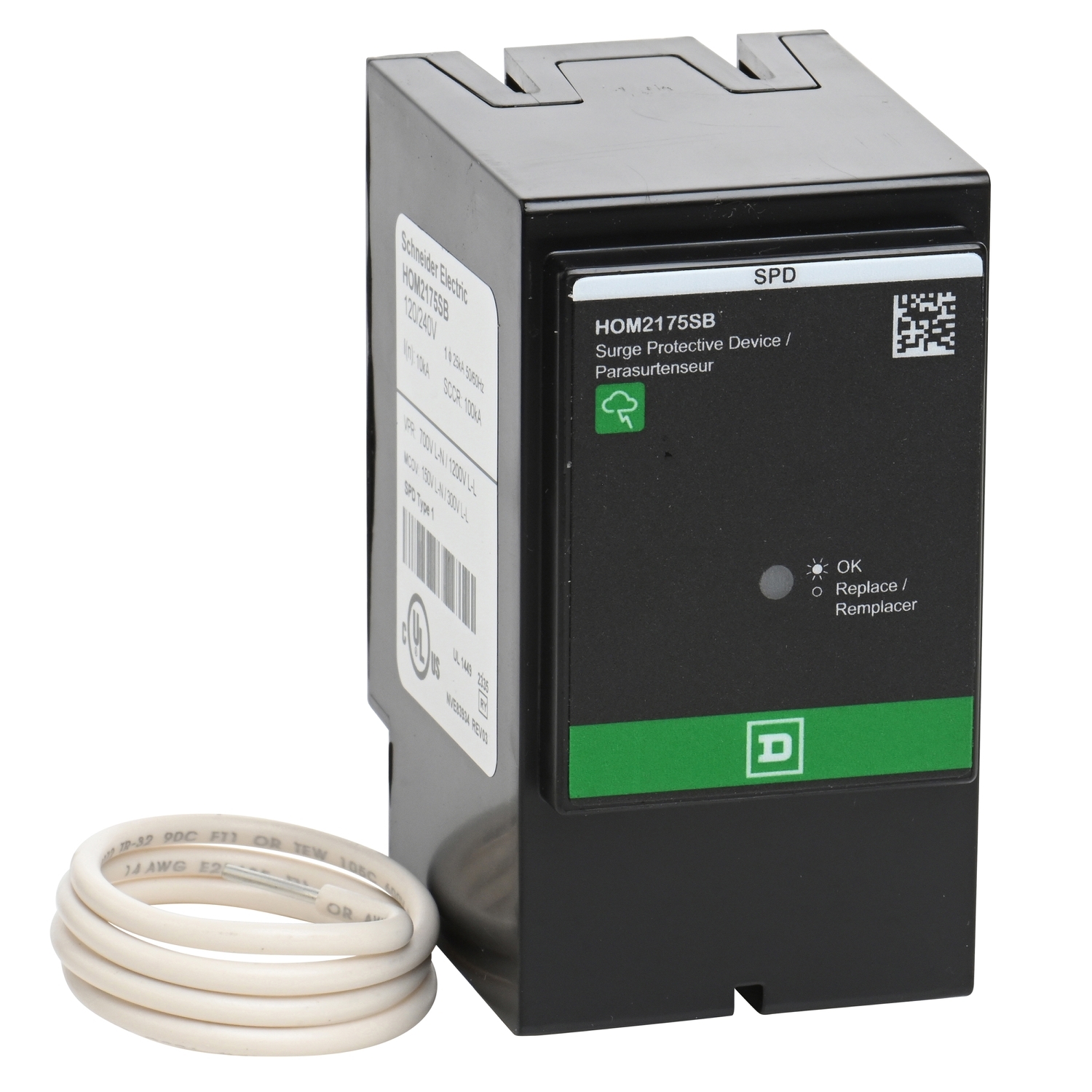

HOM2175SB Homeline Surge protection device, Surgebreaker, 22.5kA, 120/240VAC, 1 phase, 3 wire, SPD type 2

MFR:
Schneider Electric
MFR #:
HOM2175SB
UPC:
785901210900
Item #:
175657

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 10 kA and has a SCCR of 25 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.

Manuals & Documentation
Catalog Number HOM2175SB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359001&lang=en-us
UPC 785901210900
GTIN 00785901210900
Width 2.0
Width UOM Inch
Height 3.7
Height UOM Inch
Depth 2.6 IN
