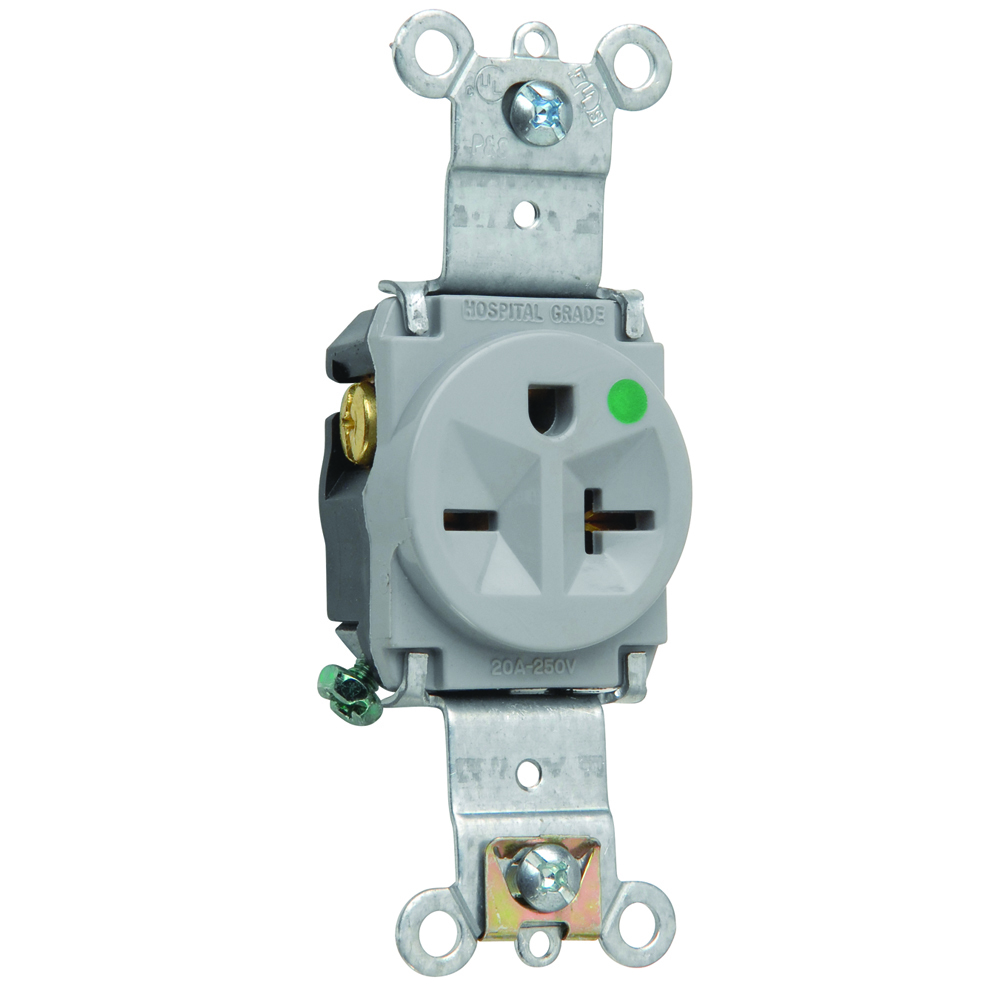

Heavy-Duty Single Receptacle Back and Side-Wire 20A 250V

Catalog Number 8801GRY
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Gray
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 6
Number of Poles 2
Number of Wires 3
Phase 1
Special Features Heavy-duty, zinc-plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Impact-resistant nylon face and thermoplastic back body. Internal screw-pressure-plate back wire capable of accepting #14 – #10 AWG solid or stranded copper or copper-clad wire. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Standard UL498, cUL/CSA C22.2 No. 42
UPC 785007880434
GTIN 00785007880434
Item Type Hospital Grade Single Receptacle, Heavy-Duty
Size 1.32 L x 1.093 W x 3.68 H
Environmental Conditions Flammability: UL94 V2
Temperature Rating -40° - 60° C
Voltage Rating 250
Wire Size 14 - 10 AWG
