Appleton

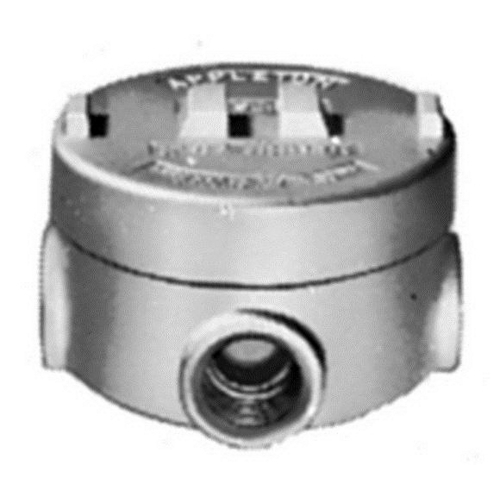

Round Universal Conduit Body, 3/4 inch, Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
GRUE75-A
UPC:
781381117135
Item #:
174888

UNILETS GRUE Universal Outlet Box, Number Of Outlet: 5, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 3/4 IN, Cable Entry: (5) 3/4 IN Hub, Cubic Capacity: 13.5 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Height: 4-1/4 IN

Manuals & Documentation

Features

  • Explosion proof
  • Dust-Ignition proof
  • For use with threaded metal conduit
  • UL listed
  • CSA certified
Catalog Number GRUE75-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (5) 3/4 IN Hub
Cubic Capacity 13.5 CU IN
Knockouts No
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Explosionproof, dust-ignitionproof; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with internal ground screw, epoxy powder coat cover; General purpose wiring; Universal design with five threaded universal hubs and three close-up plugs; Copperfree aluminum body and cover provide resistance to corrosive atmospheres; Covers have pry notches for bar or wrench; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381117135
GTIN 00781381117135
Item Type GRUE Universal Outlet Box
Length 5.0000
Length UOM Inch
Width 4.8000
Width UOM Inch
Height 4.1000
Height UOM Inch
Weight 1.390
Weight UOM Pounds
Size 3/4
