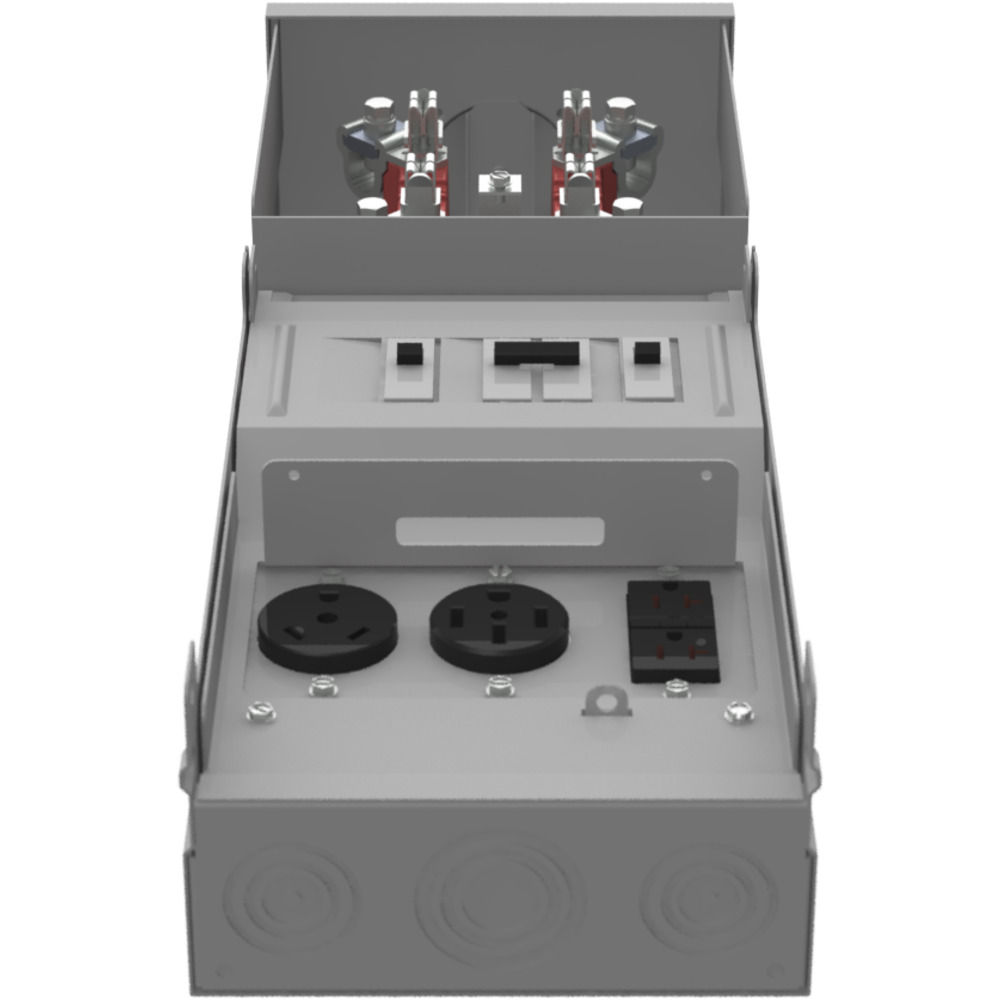

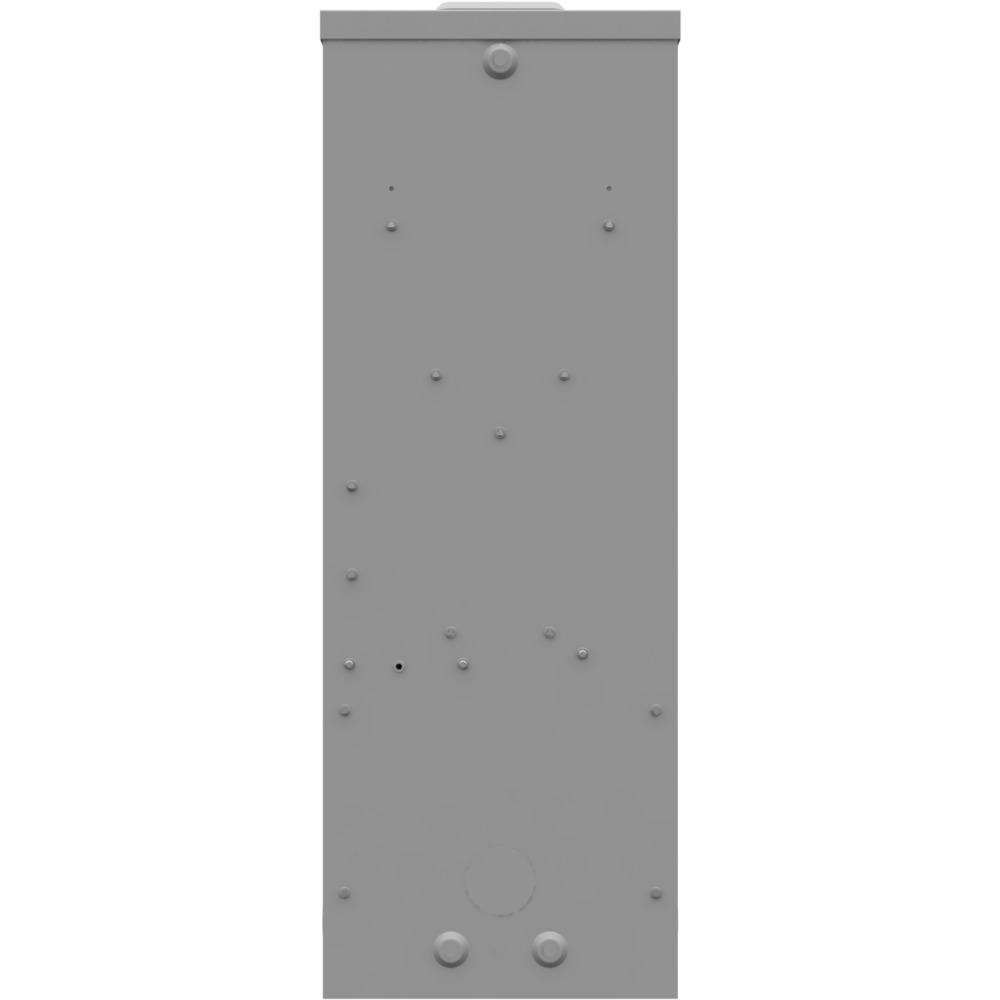

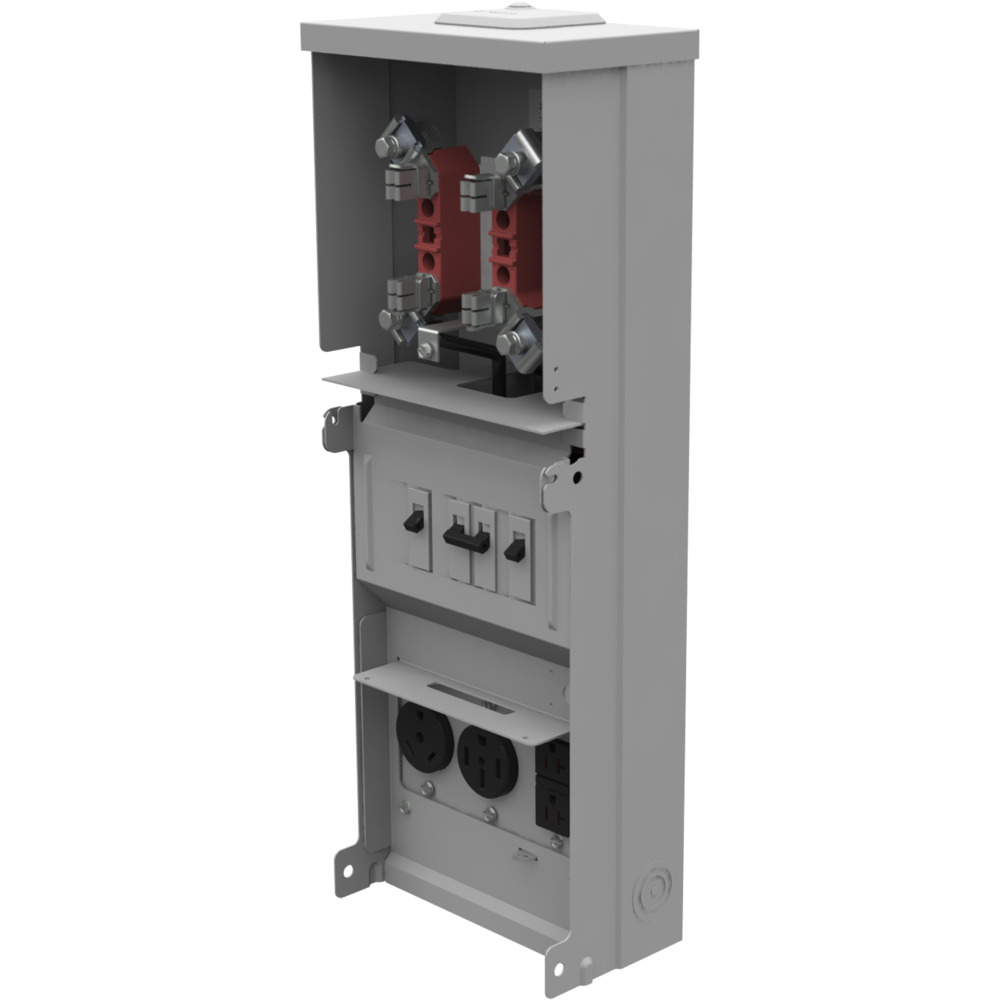

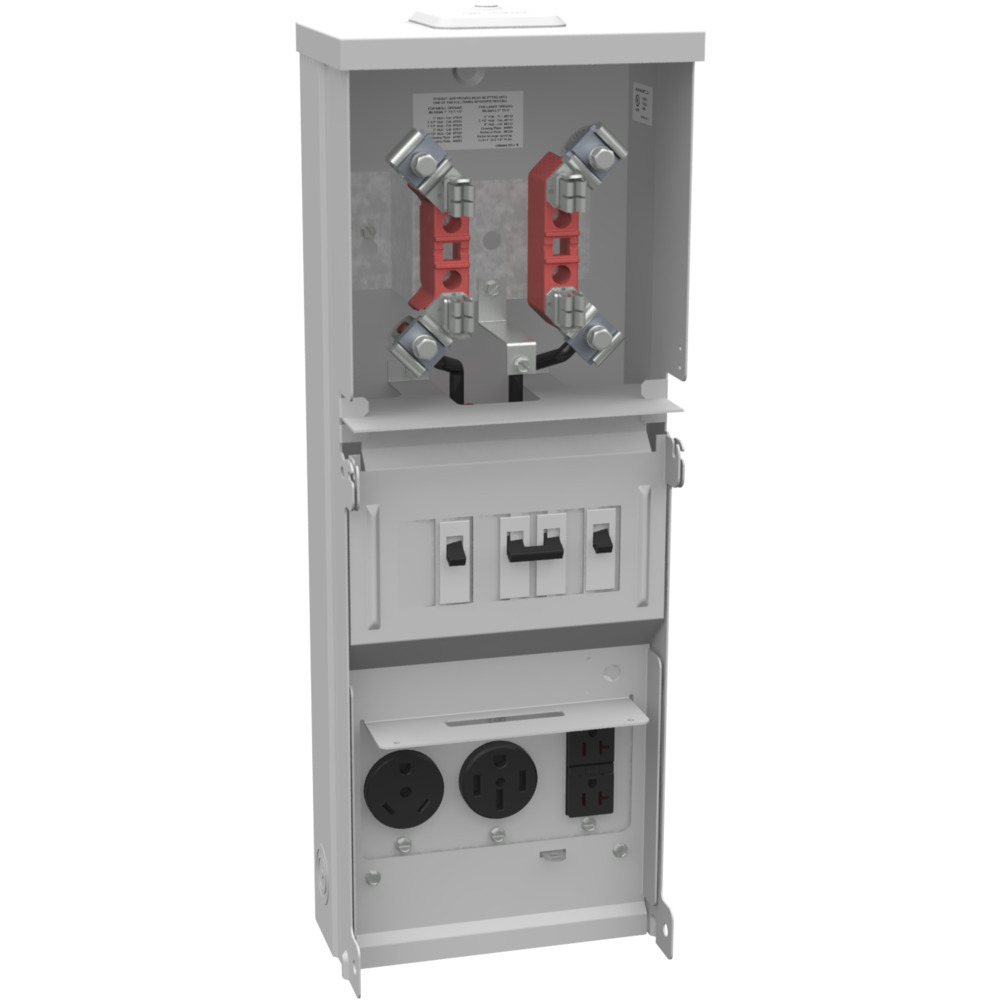

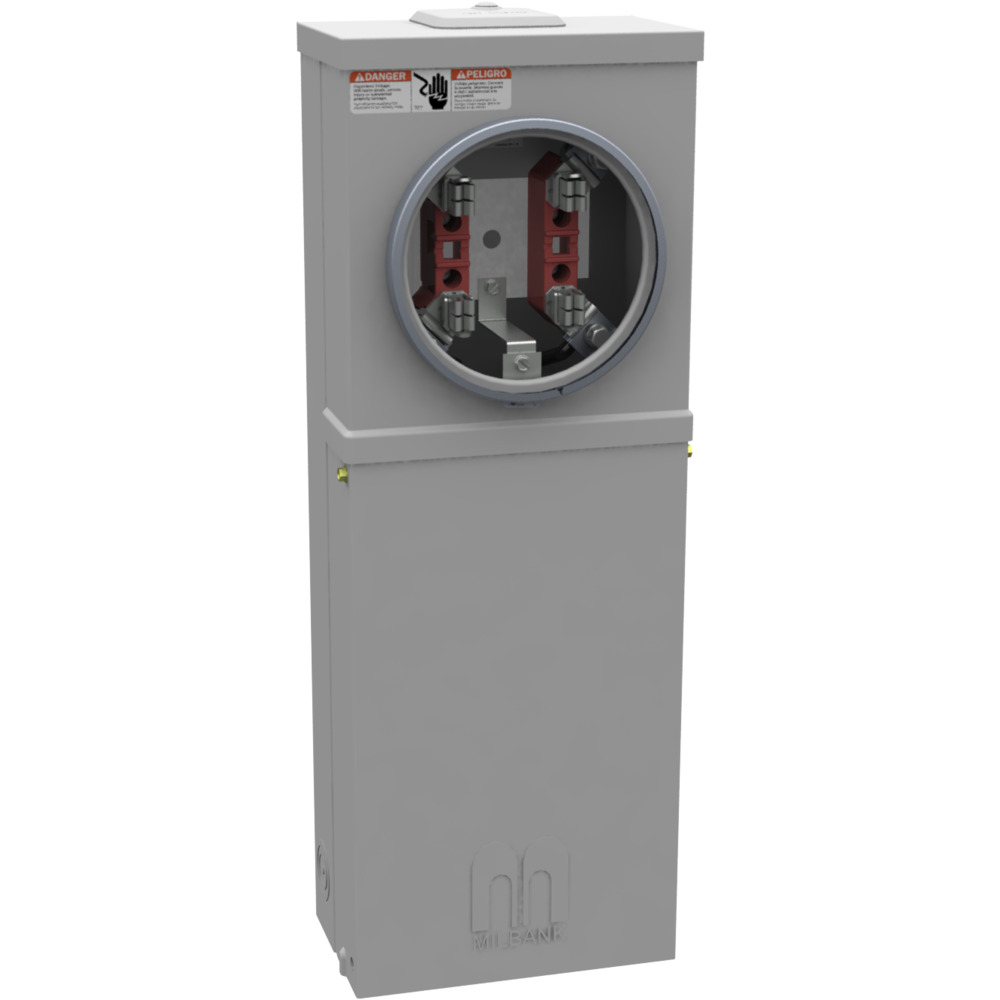

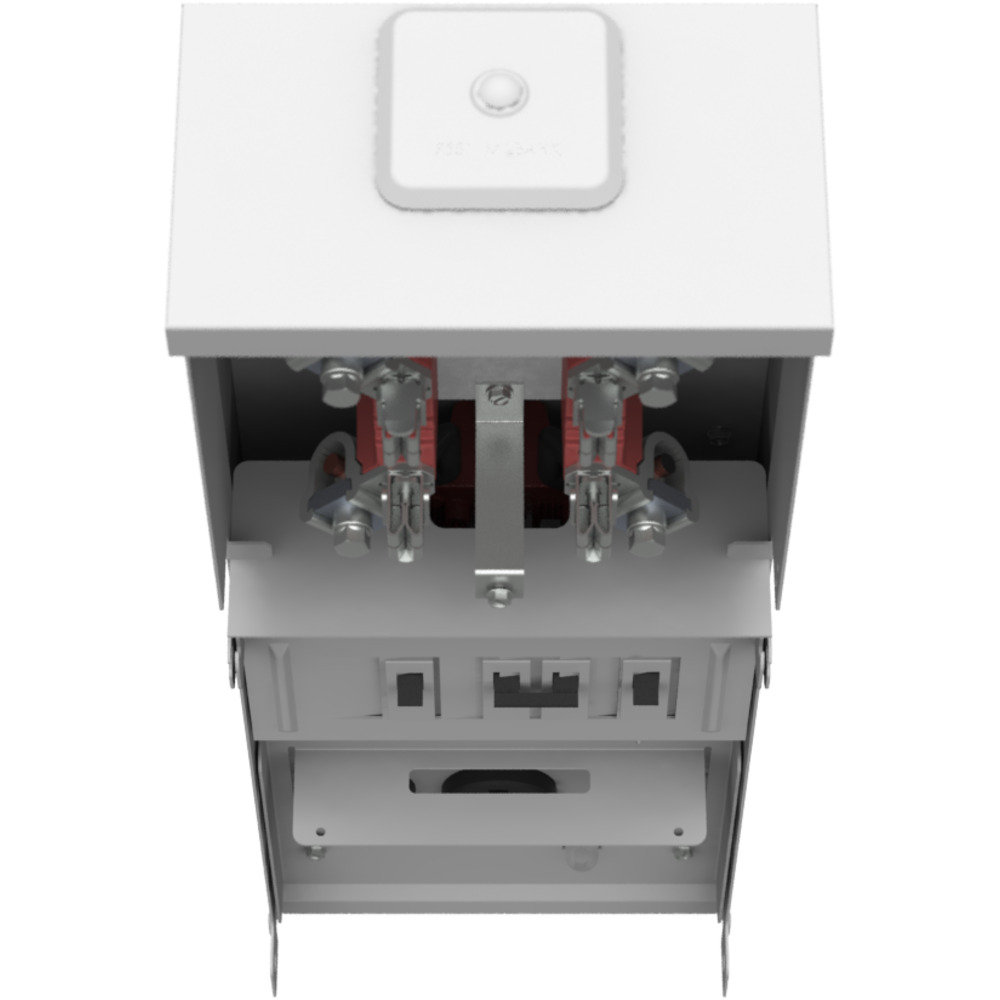

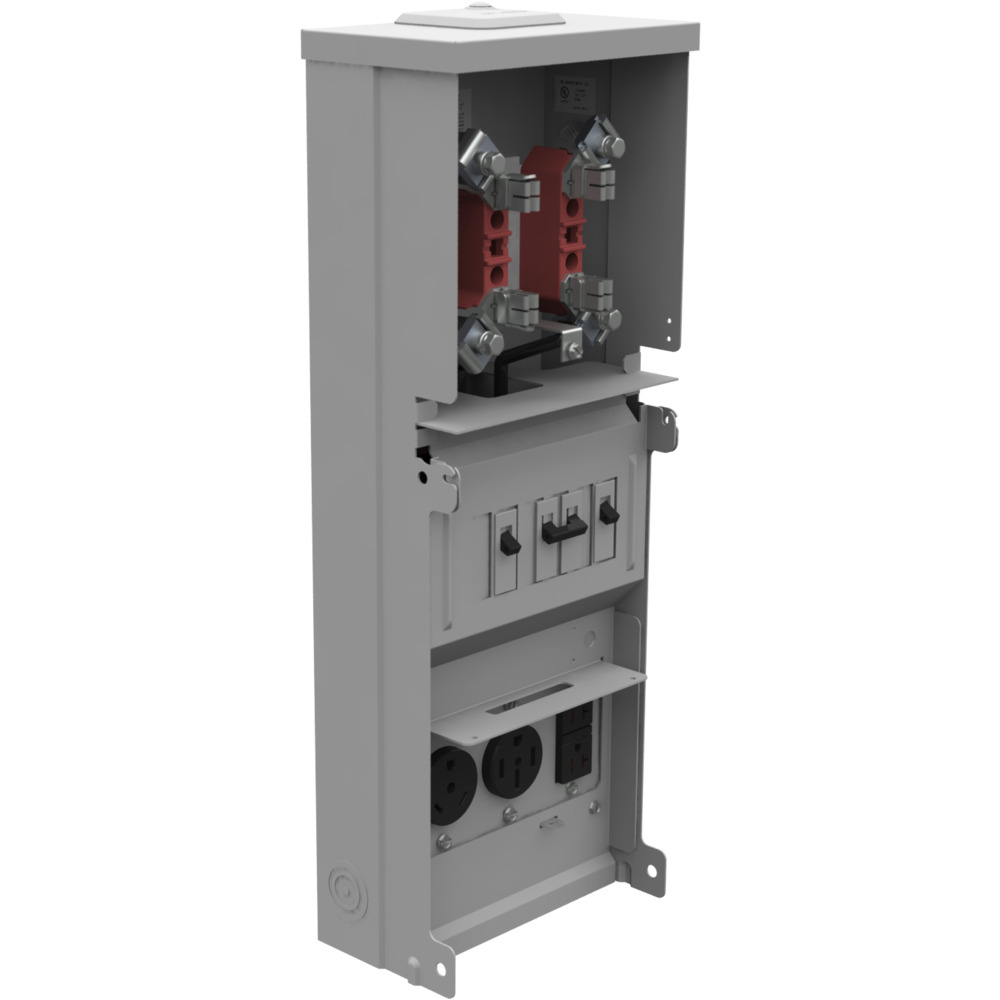

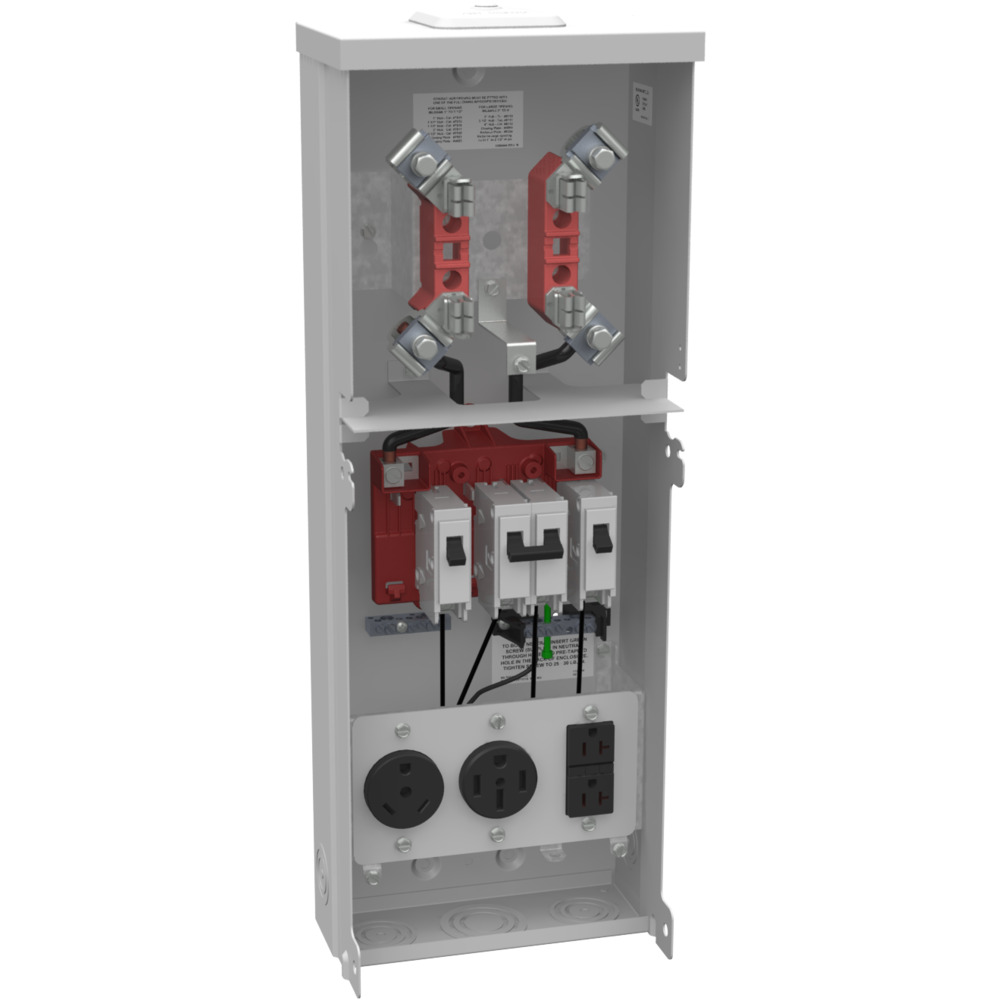

4 TERM RNGTP SML CLS PLT TT30 1450 520GR SURF MNT
Manuals & Documentation
| Catalog Number | U5100-XL-75 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 125 |
| Application | RV Power |
| Bypass Type | No Bypass |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Special Features | Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker |
| Standard | UL Listed;Type 3R |
| UPC | 784572258846 |
| GTIN | 00784572258846 |
| Item Type | Ring Type Meter Socket |
| Length | 5.188 |
| Length UOM | Inch |
| Width | 8.875 |
| Width UOM | Inch |
| Height | 25 |
| Height UOM | Inch |
| Size | 5.188L x 8.875W x 25H |
| Terminals | Lay In |
| Voltage Rating | Up to 240 Volts Alternating Current |
