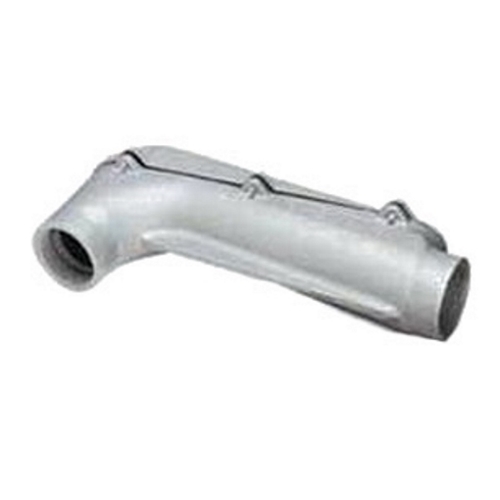

LB6X-400MA Explosionproof Conduit Body With Cover, Gasket, Type LB Body, 4 in Hub, Mogul Form, 740 cu-in Capacity, Copper-Free Aluminum
- MFR:
- O-Z/Gedney
- MFR #:
- LB6X-400MA
- UPC:
- 783126020953
- Item #:
- 174282
LB6X-400MA Explosionproof Conduit Body With Cover, Gasket, Type LB Body, 4 in Hub, Mogul Form, 740 cu-in Capacity, Copper-Free Aluminum
- MFR #:
- LB6X-400MA
- UPC:
- 783126020953
- Item #:
- 174282
Manuals & Documentation
| Catalog Number | LB6X-400MA |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Rigid Conduit And IMC |
| Connection | Tapered FNPT |
| Finish | Epoxy Powder Coat |
| Hub Size | 4 IN |
| Material | Copper-Free Aluminum |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight when used with gasketed covers; Smooth integral hub bushings protect conductor insulation; Suitable for wet locations when used with gasketed covers; Supplied completely assembled with cover, gasket and captive stainless steel screws; Meets NEC section 314.28 rule; Neoprene gaskets; Replacement covers and gaskets available; Supplied with built-in cable-pulling rollers |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| UPC | 783126020953 |
| GTIN | 00783126020953 |
| Item Type | Type LB Mogul Conduit Body |
| Length | 27-1/2 |
| Width | 7 |
| Height | 37591 |
