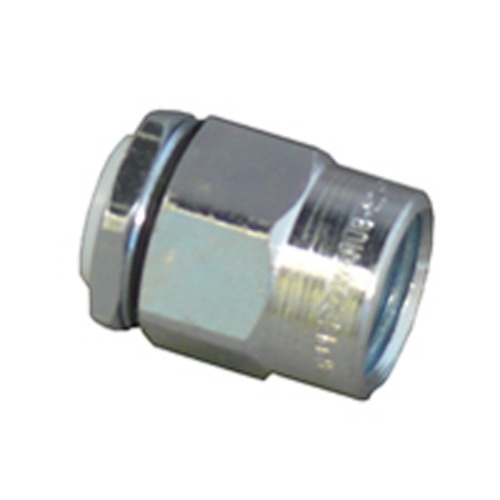

Straight Insulated Throat Hub, Size: 1 IN, Material: Steel, Finish: Zinc Electroplate, Length: 1.72 IN, Height: 1-1/4 IN, Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division

Manuals & Documentation

Features

  • Patented hex-hub wedge adaptor fits nearly flush against inside walls of enclosures
  • Single wrench installation, simple two-piece construction
  • Protective flame-resistant insulated throat eliminates any need for end bushings
  • Built-in recessed neoprene gasket
  • Full, machined tapered threads
  • Provides threaded termination in sheet metal enclosures
Catalog Number HUB-100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use To Connect Rigid Metal Conduit Or IMC To A Threadless Opening In An Enclosure
Finish Zinc Electroplate
Material Steel
Special Features Insulated throat form provides a more vibration resistant connection between threaded rigid conduit or IMC and enclosure; Provides threaded termination in sheet metal enclosures; Suitable for service entrance; General purpose fitting; Appleton's uni-seal rigid conduit hubs eliminate the need for welded hubs; efficiency of installation is built into the superior design; single wrench installation; Patented hex-hub wedge adapter fits nearly flush against the interior side walls of enclosures; Provides maximum wiring room; Simple two piece construction; Protective insulated throats, positive grounding and watertight sealing action; Flame resistant insulated throat eliminates need for end bushings; Flame resistant insulated throat eliminates need for end bushings; Built-in recessed gasket
Standard UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, UL Listed For Class I, Division 2
RoHS Indicator Contact Manufacturer
UPC 781381462655
GTIN 00781381462655
Item Type Straight Insulated Throat Hub
Length 6.7000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 0.3600
Height UOM Inch
Weight 0.330
Weight UOM Pounds
Size 1
