SQUARE D

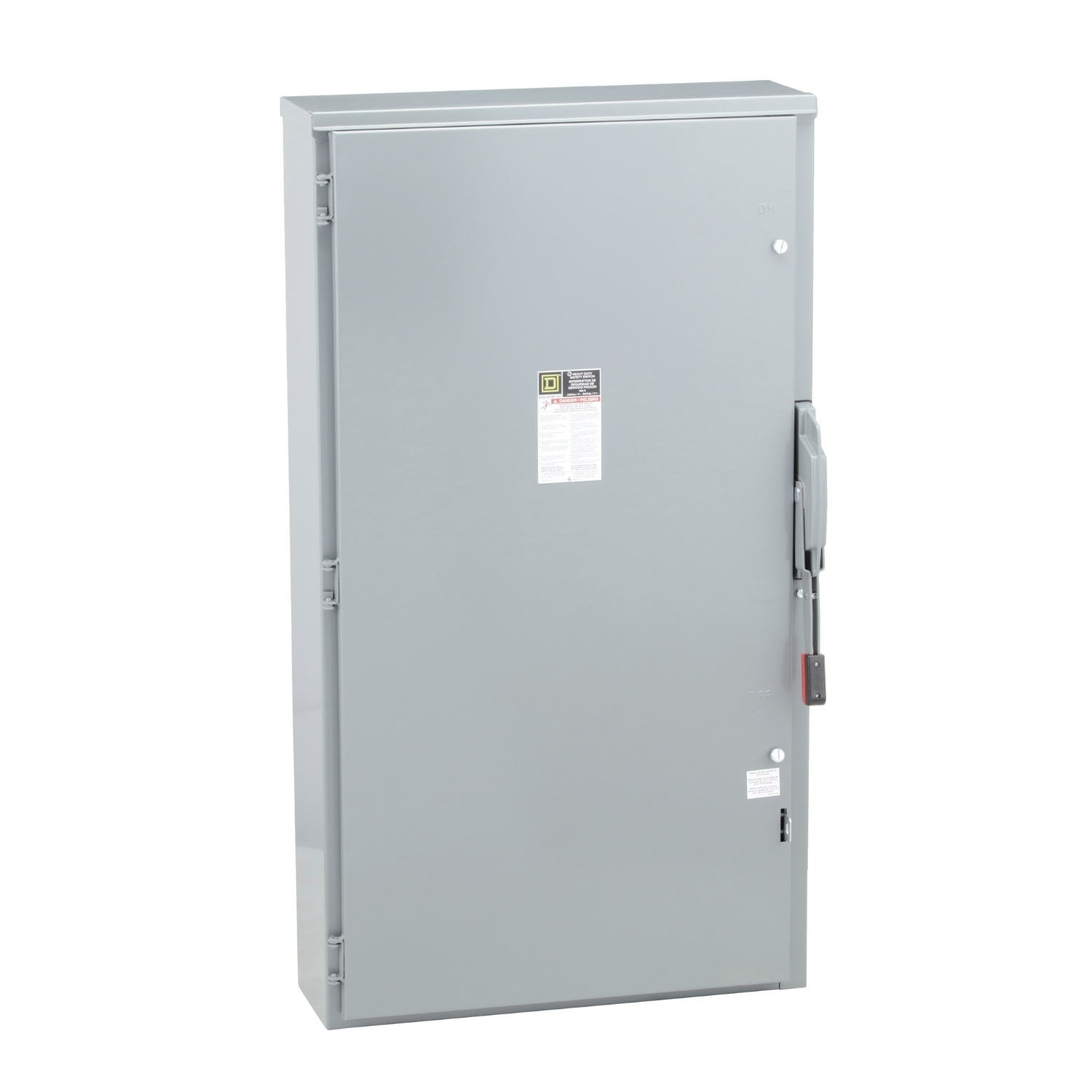

H225NR E5 Series Heavy Duty Fusible Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, DPST Contact, 2 Poles

MFR:
Schneider Electric
MFR #:
H225NR
UPC:
785901450405
Item #:
173983

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 400A with voltage of 240VAC and 250VDC. This switch is rated at 50hp for 3 phase with standard fuses. For time delay fuses, this switch is rated at 125hp at 3 phase. For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.

Manuals & Documentation
Catalog Number H225NR
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Type H or K;R or J
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363901&lang=en-us
UPC 785901450405
GTIN 00785901450405
Width 27.88
Width UOM Inch
Height 50.31
Height UOM Inch
Depth 10.13 IN
