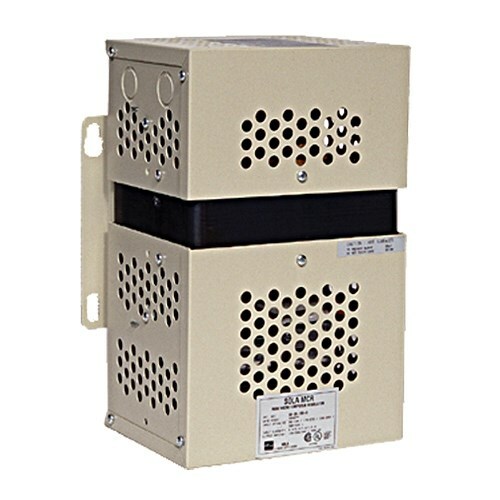

63-23-250-8 MCR Hardwired Power Line Conditioner With Voltage Regulation, 120/208/240/480 V AC Input, 120/208/240 VAC Output, 1 Phase
- MFR:
- SolaHD
- MFR #:
- 63-23-250-8
- UPC:
- 783472221851
- Item #:
- 173379
63-23-250-8 MCR Hardwired Power Line Conditioner With Voltage Regulation, 120/208/240/480 V AC Input, 120/208/240 VAC Output, 1 Phase
- MFR #:
- 63-23-250-8
- UPC:
- 783472221851
- Item #:
- 173379
Manuals & Documentation
| Catalog Number | 63-23-250-8 |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment |
| Frequency Rating | 60 |
| Input | 120, 208, 240, 480 |
| Mounting | Bracket |
| Special Features | +/- 3% output voltage regulation, Surge protection tested to ANSI/IEEE C62.41. Class A & B waveform, Harmonic filtering, Galvanic isolation, Noise attenuation 120 dB common mode/60 dB transverse mode |
| Standard | UL, UL 1012, CSA, CE, ANSI/IEEE C62.41 |
| UPC | 783472221851 |
| GTIN | 00783472221851 |
| Item Type | MCR Hardwired Series Power Line Conditioning with Voltage Regulation |
| Length | 9 |
| Width | 13 |
| Height | 19 |
