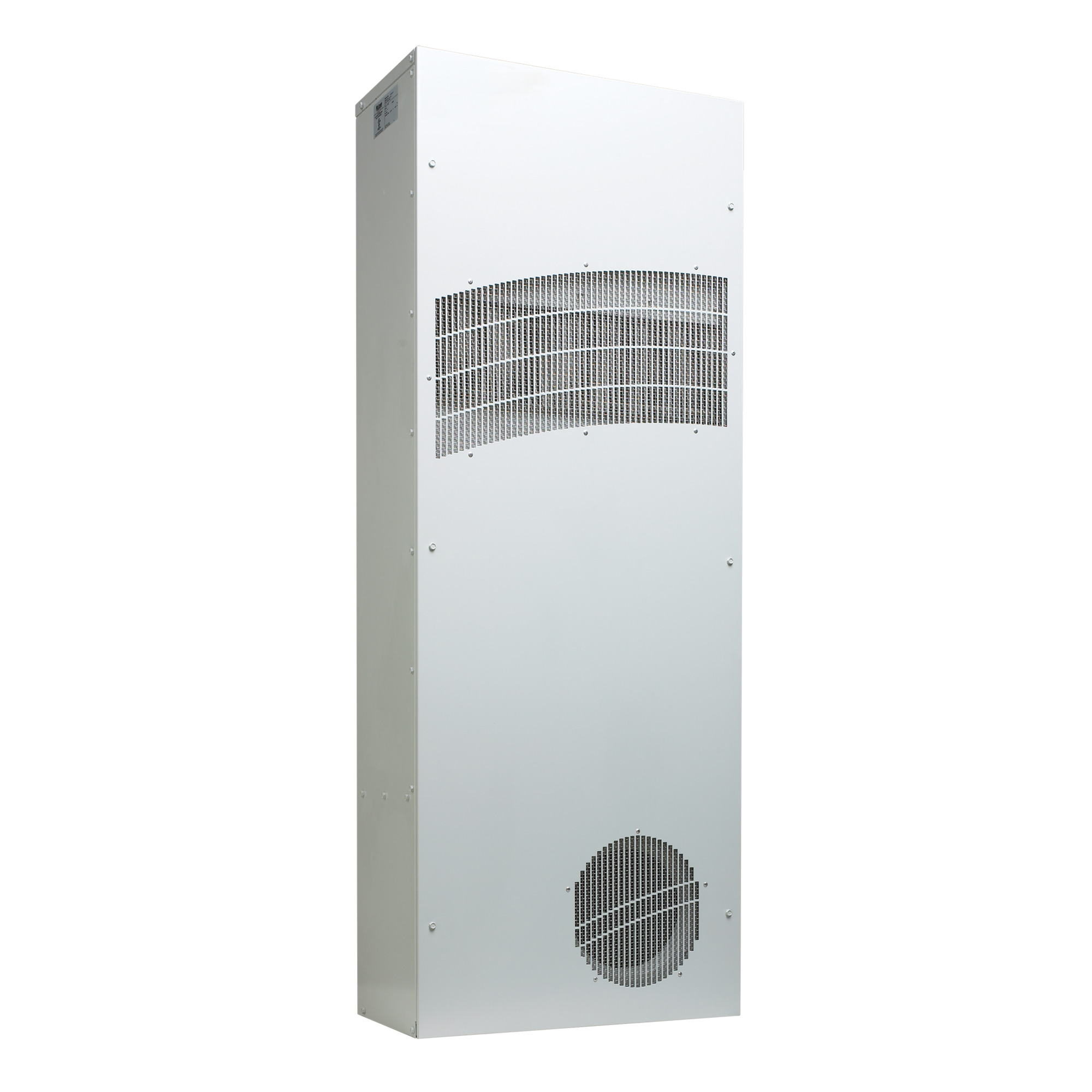

TX528316100 ClimaGuard MCLHE TX52 Heat Exchanger, 115 V AC, 4.3/6.7 A, 782 W Power Rating, NEMA 3R/4/12 Enclosure, 495/533 cfm at 50 Hz Internal Loop, 540/605 cfm at 60 Hz External Loop Air Flow
- MFR:
- nVent
- MFR #:
- TX528316100
- UPC:
- 783510188627
- Item #:
- 172528
TX528316100 ClimaGuard MCLHE TX52 Heat Exchanger, 115 V AC, 4.3/6.7 A, 782 W Power Rating, NEMA 3R/4/12 Enclosure, 495/533 cfm at 50 Hz Internal Loop, 540/605 cfm at 60 Hz External Loop Air Flow
- MFR #:
- TX528316100
- UPC:
- 783510188627
- Item #:
- 172528
nVent Hoffman’s ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface- or recess-mounted to an enclosure with no loss of enclosure integrity.
Manuals & Documentation
| Catalog Number | TX528316100 |
| Manufacturer | nVent |
| Brand | nVent HOFFMAN |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Controls and Drives; Power Distribution |
| Mounting | Surface |
| UPC | 783510188627 |
| GTIN | 00783510188627 |
| Item Type | Heat Exchangers |
| Dimensions | 52 x 19.7 x 10.1 in |
| Temperature Range | -40 to 149 deg F |
