Discontinued

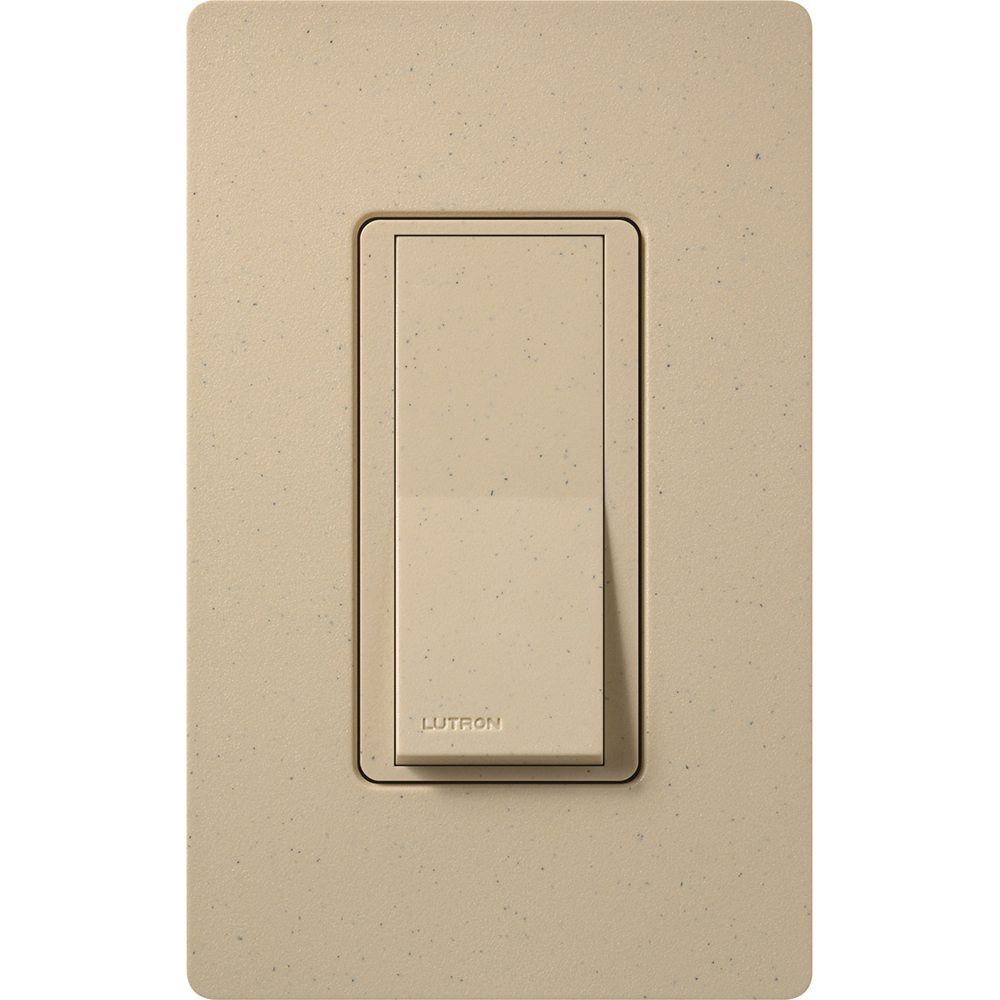

SC-4PS-DS Diva Satin Colors Designer General Purpose Paddle Switch, 15 A at 120/277 V AC, 60 Hz
- MFR:
- Lutron Electronics
- MFR #:
- SC-4PS-DS
- UPC:
- 027557475693
- Item #:
- 172114
Discontinued
SC-4PS-DS Diva Satin Colors Designer General Purpose Paddle Switch, 15 A at 120/277 V AC, 60 Hz
- MFR #:
- SC-4PS-DS
- UPC:
- 027557475693
- Item #:
- 172114
Manuals & Documentation
| Catalog Number | SC-4PS-DS |
| Manufacturer | Lutron Electronics |
| Brand | Lutron |
| Actuator | Paddle switch |
| Amperage Rating | 15 |
| Application | Lighting Control |
| Color | Desert Stone |
| Contact Configuration | Screw terminal |
| Contact Rating | 15 AMPS |
| Enclosure | Plastic |
| Material | Plastic/metal |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Rated for 15 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or general purpose fans and motor loads. Paddle turns on/off. Use with any 15 A load. General purpose switching of all light sources and motor loads. |
| Standard | UL, cUL, NOM |
| UPC | 027557475693 |
| GTIN | 00027557475693 |
| Item Type | Mechanical switch, 4-way |
| Size | 4.69 x 2.94 |
| Voltage Rating | 120/277 |
| Wattage | 1800/4155 W |
