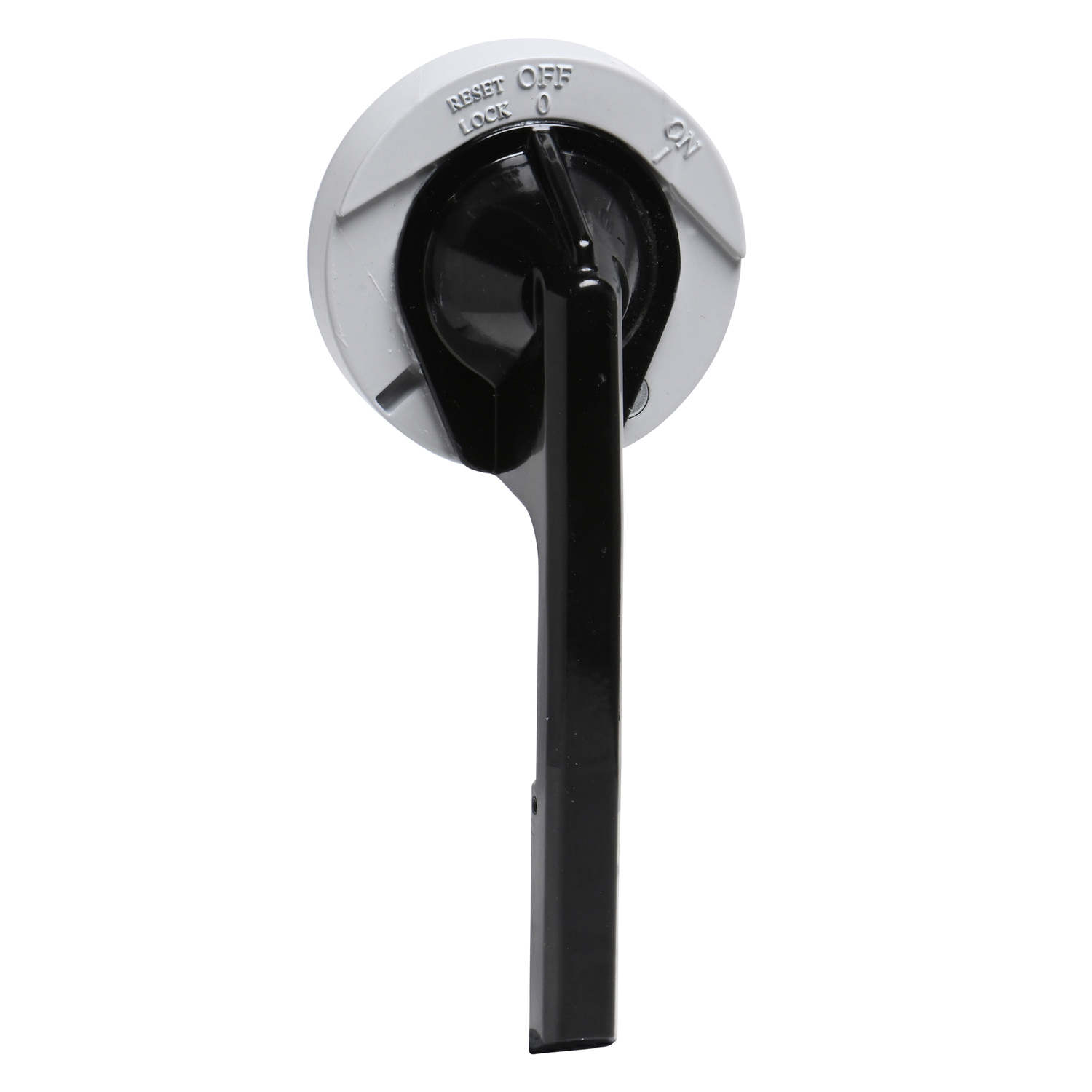

9421LP4 Type L Door Mount Long Shaft Variable Depth Operating Mechanism Kit, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With Type KAL/KCL/KHL 250 A 600 V AC Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9421LP4
- UPC:
- 785901111115
- Item #:
- 171785
9421LP4 Type L Door Mount Long Shaft Variable Depth Operating Mechanism Kit, NEMA 1/3R/12 NEMA Rating, Rotary Handle Handle/Operation, Direct Mount Handle Mounting, For Use With Type KAL/KCL/KHL 250 A 600 V AC Circuit Breaker
- MFR #:
- 9421LP4
- UPC:
- 785901111115
- Item #:
- 171785

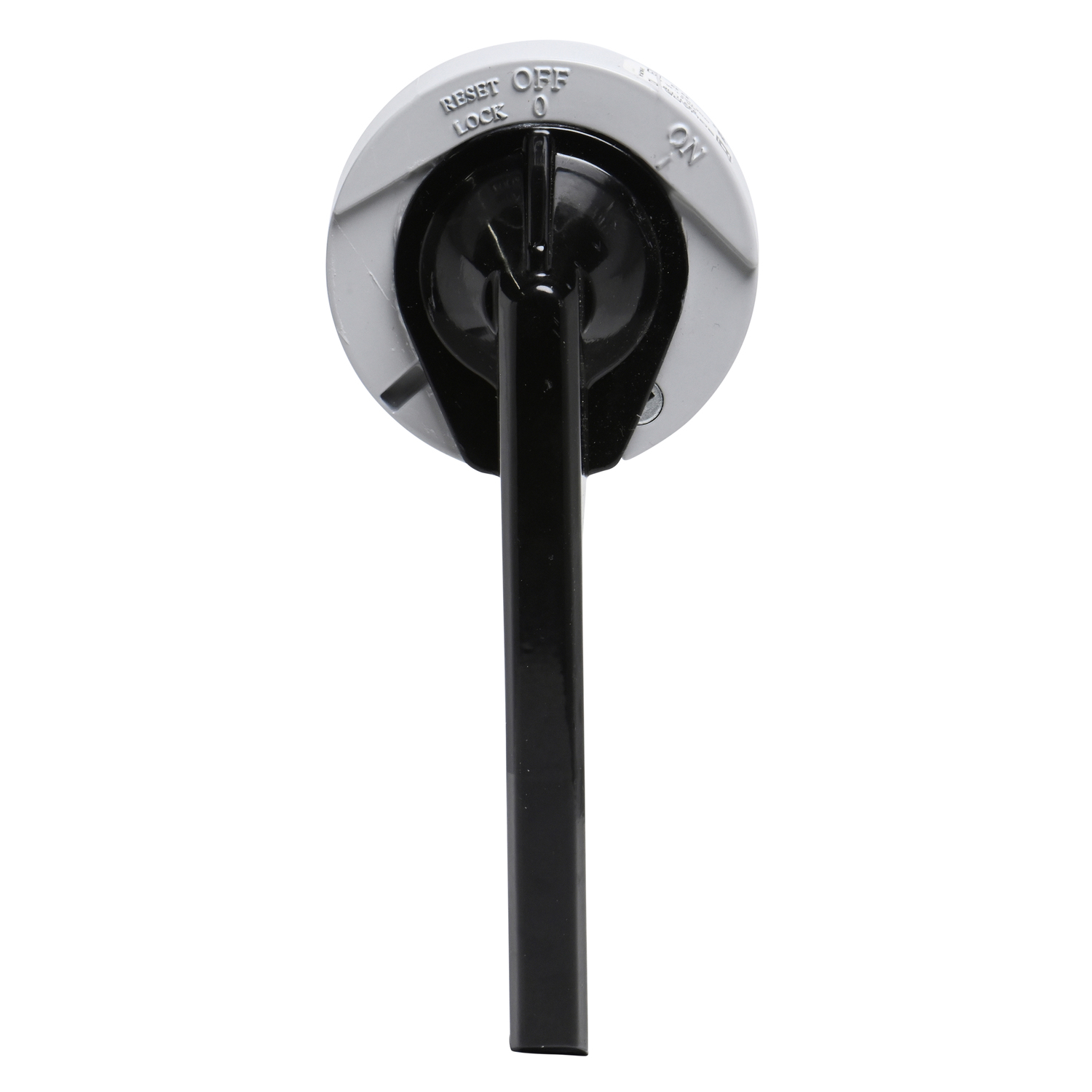

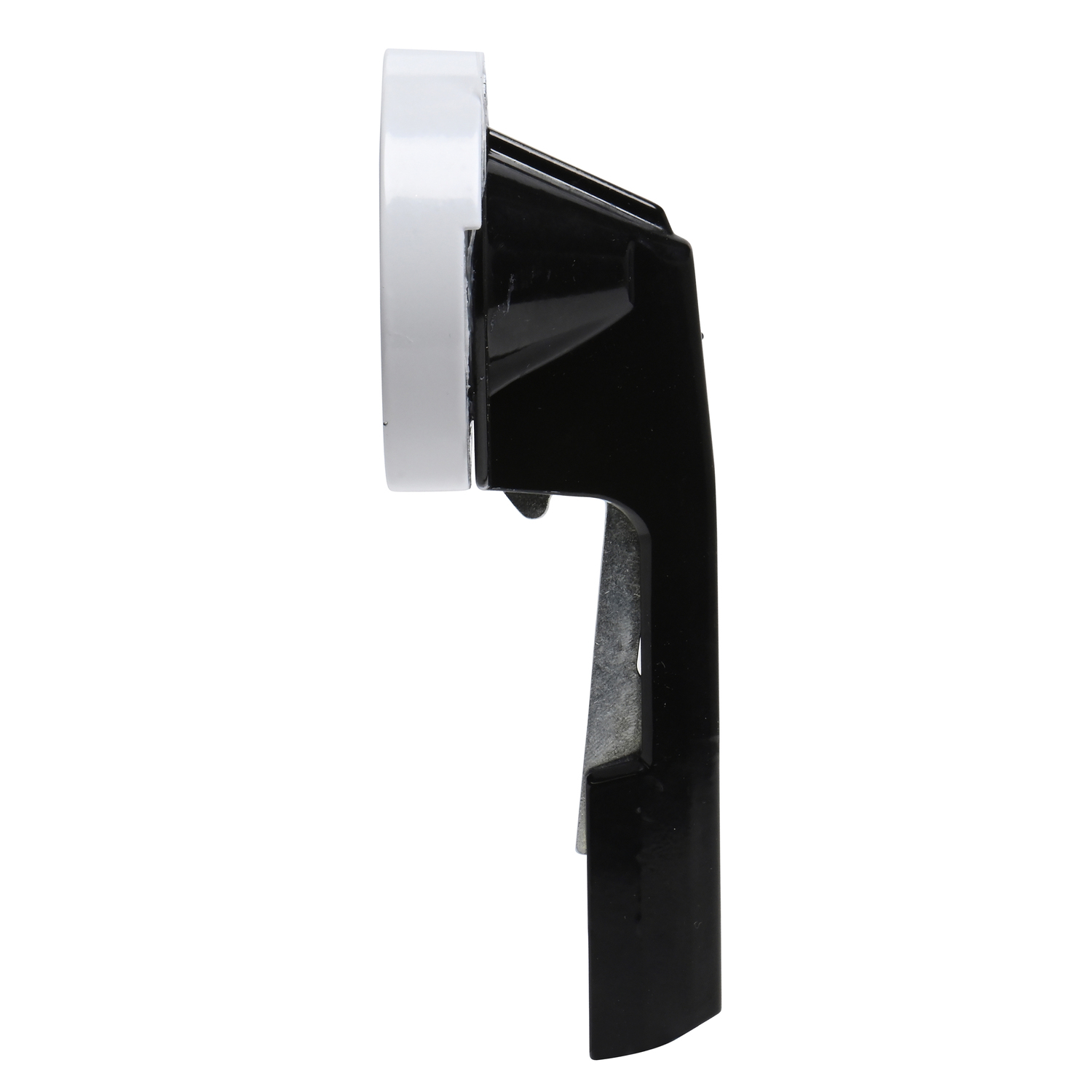

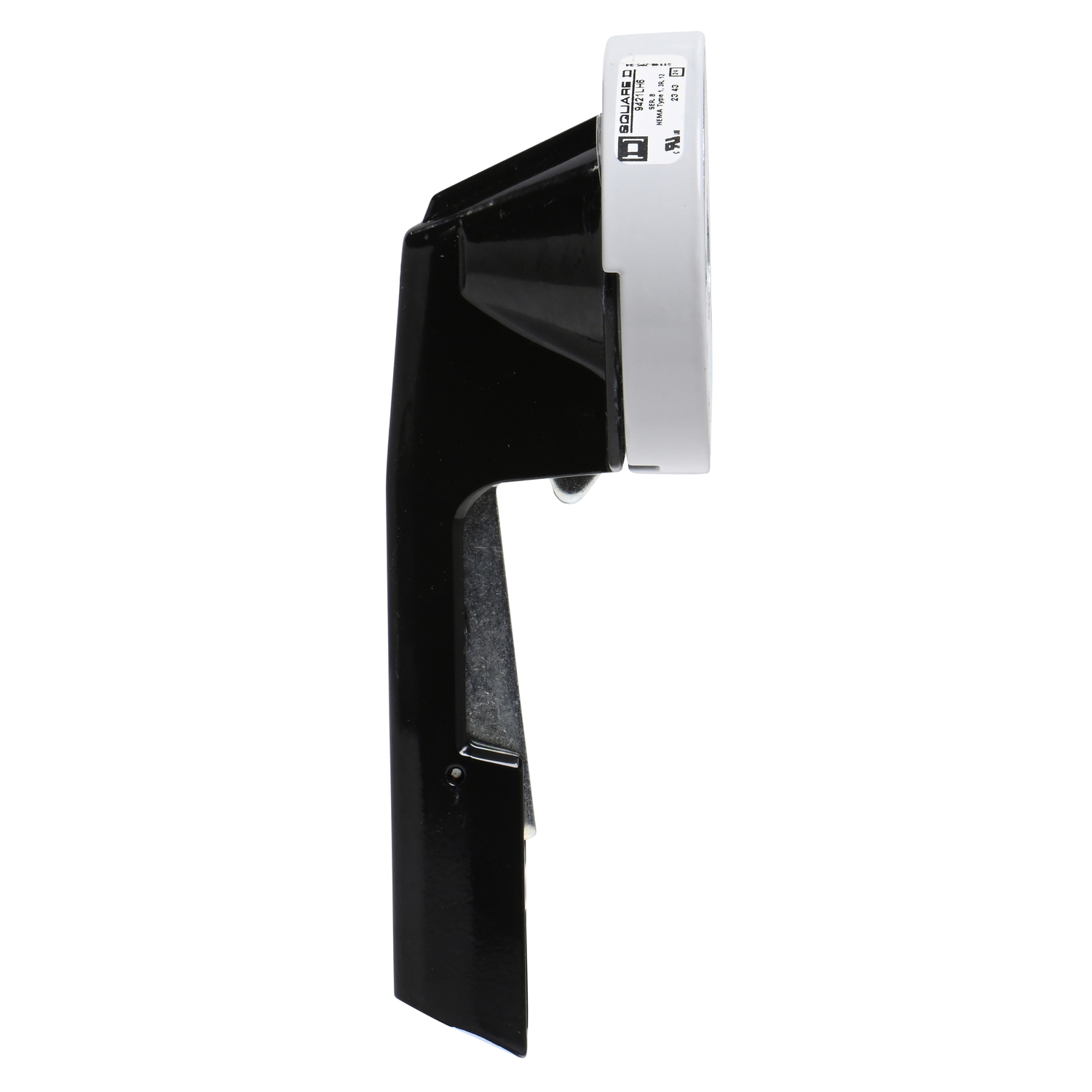

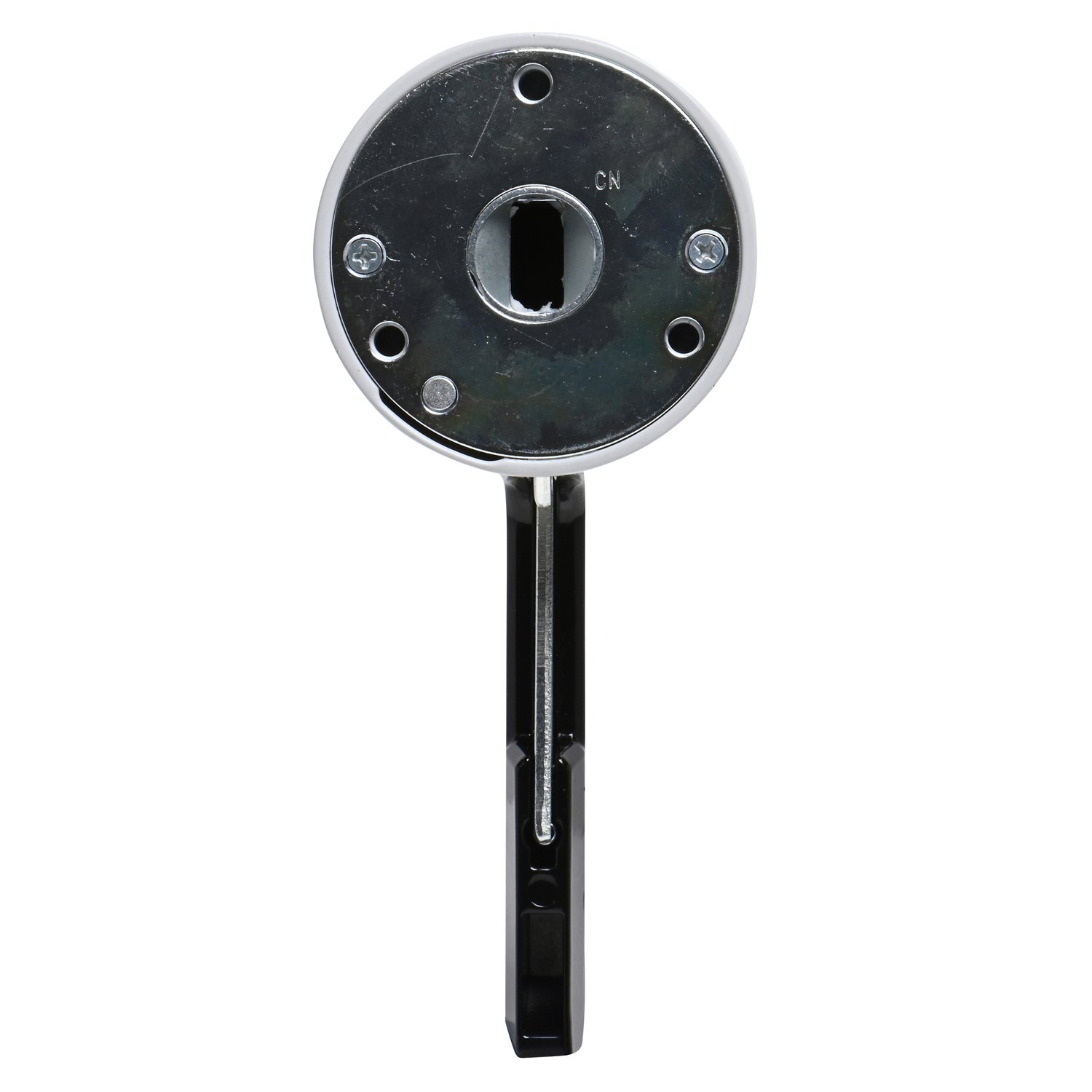

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with KAL, KCL and KHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 6.25 to 21.75 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9421LP4 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=565455&lang=en-us |
| UPC | 785901111115 |
| GTIN | 00785901111115 |
