Appleton

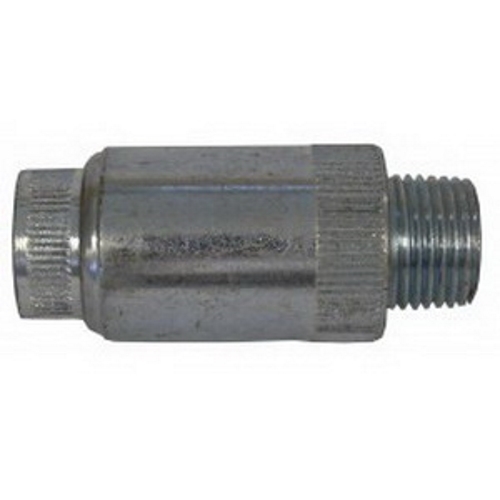

Conduit Union, Dust-Ignitionproof Explosionproof, Series: UNY, 1 in Size, For Use With: IMC/Threaded Rigid Metallic Conduit, Steel, Zinc Electroplated, 1.75 in OD x 3.67 in L Dimensions

MFR:
Appleton Electric
MFR #:
UNY100
UPC:
781381696050
Item #:
171578

UNILETS UNF Standard Expansion Union, Trade Size: 1 IN, Outside Diameter: 1-3/4 IN, Length: 3.67 IN Overall Length At Maximum Expansion, Flexibility: Rigid And IMC, Material: Steel, Connection: Male Threaded, Maximum Expansion: 0.66 IN, Di

Manuals & Documentation
Catalog Number UNY100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Connecting Conduit To Enclosure
Connection Male Threaded
Flexibility Rigid And IMC
Material Steel
Special Features Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; One-piece design eliminates need for disassembly during installation; Telescoping cylinder within cylinder design permits expansion or contraction; Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment; Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders; Expansion unions compensate for expansion and contraction of conduit
Standard UL 886 (1203), UL File Number E10444, UL Listed For Class I, Division 1 And 2 Groups C, D; Class II, Division 1 And 2 Groups E, F, G; Class III; SA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified
UPC 781381696050
GTIN 00781381696050
Item Type UNF Standard Expansion Union
Length 3.67 IN Overall Length At Maximum Expansion
Outside Diameter 1-3/4 IN
Trade Size 1 IN
