O-Z/Gedney

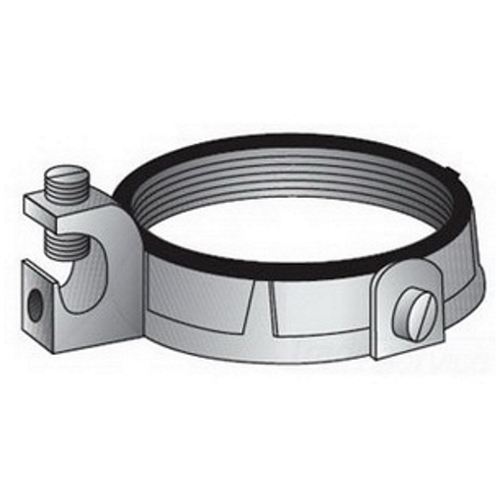

IBC-250L-25AC Insulated Threaded Grounding Bushing With Lug, 2-1/2 in Trade, 6 AWG Stranded Wire Min, 250 kcmil Stranded Wire Max, 3-3/8 in Dia, Malleable Iron

MFR:
O-Z/Gedney
MFR #:
IBC-250L-25AC
UPC:
783126303247
Item #:
171545
Manuals & Documentation

Features

  • UL temperature rating 150øC
  • Insulating liner material is UL V-O Rate
  • The plastic liner is tough. It won?t chip, crack, swell or shrink
  • It resists corrosion, chemicals and temperature extremes
  • Set-screw provided with each fitting locks bushing in any desired position
  • UL Listed for use with copper grounding conductors only
Catalog Number IBC-250L-25AC
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Rigid Conduit And IMC
Connection Threaded
Finish Zinc Plated Body, Tin Plated Lug, Zinc Plated Clamping Screw And Set Screws
Material Malleable Iron Body, Aluminum Lug, Steel Clamping Screw And Set Screws
Special Features O-Z/Gedney malleable iron bushings incorporate a thermoplastic insulator and an aluminum lay-in lug grounding lug; They are used to protect wires and cables at entry and exit of conduit and to provide for grounding of the conduit; Insulating liner material is UL V-O rated (self extinguishing); The plastic liner is tough, it won’t chip, crack, swell or shrink, resists corrosion, chemicals and temperature extremes; Surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Set-screw provided with each fitting locks bushing in any desired position; UL listed for use with copper or aluminum grounding conductors; Lugs not sold separately
Standard Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126303247
GTIN 00783126303247
Item Type Type IBC-L-AC Insulated Grounding Bushing With Lug
Size 2-1/2
Temperature Rating 150 DEG C
