Intermatic

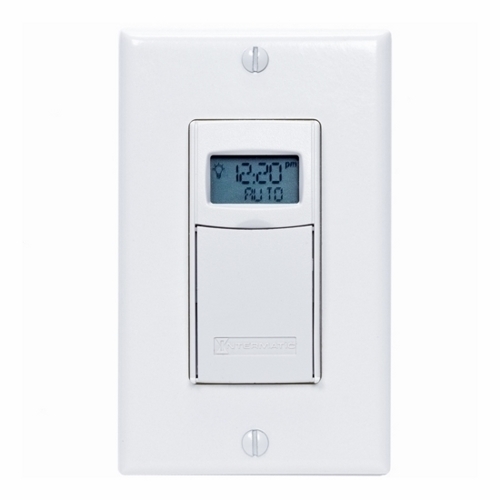

EI600WC Astronomic Digital Decorator Electronic In-Wall Timer, 1 min to 7 days Setting, 120 to 127 VAC, 12 to 18 VDC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles

MFR:
Intermatic
MFR #:
EI600WC
UPC:
078275101418
Item #:
17136

Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Manuals & Documentation
Catalog Number EI600WC
Manufacturer Intermatic
Brand Intermatic
Country of Origin Thailand
Made in USA No
Action 1 x SPST
Application Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting
Contact Configuration 1 NO
Contact Rating 20 AMP @ 120 - 277 VAC (Resistive Heater), 15 AMP @ 120 VAC (Tungsten Incandescent), 6 AMP @ 208 - 277 VAC (Tungsten Incandescent), 16 AMP @ 120 - 277 VAC (Ballast Magnetic), 4 AMP @ 12 VDC (DC Loads), 2 AMP @ 28 VDC (DC Loads)
Mounting Wall
Number of Poles 1
Special Features Features: Auto Daylight Saving Time Adjustment, Low Battery Indicator, CR2 Lithium Battery Provides a minimum of 2 Years of Time Keeping without AC Power, Manual Override Feature, User Program Selections are Stored in Non-Volatile Memory, 5 Year Warranty
Standard cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed
UPC 078275101418
GTIN 00078275101418
Item Type Digital In-Wall 7-Day Astronomic
Size 2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM
Operating Temperature +32 to +122 DEG F, 0 to +50 DEG C
Timing Range 1 MIN - 7 DAYS
Voltage Rating 120 - 127 VAC, 12 - 18 VDC
Wattage 5540 W
Cross Reference Products SS703Z
