SCHNEIDER ELECTRIC

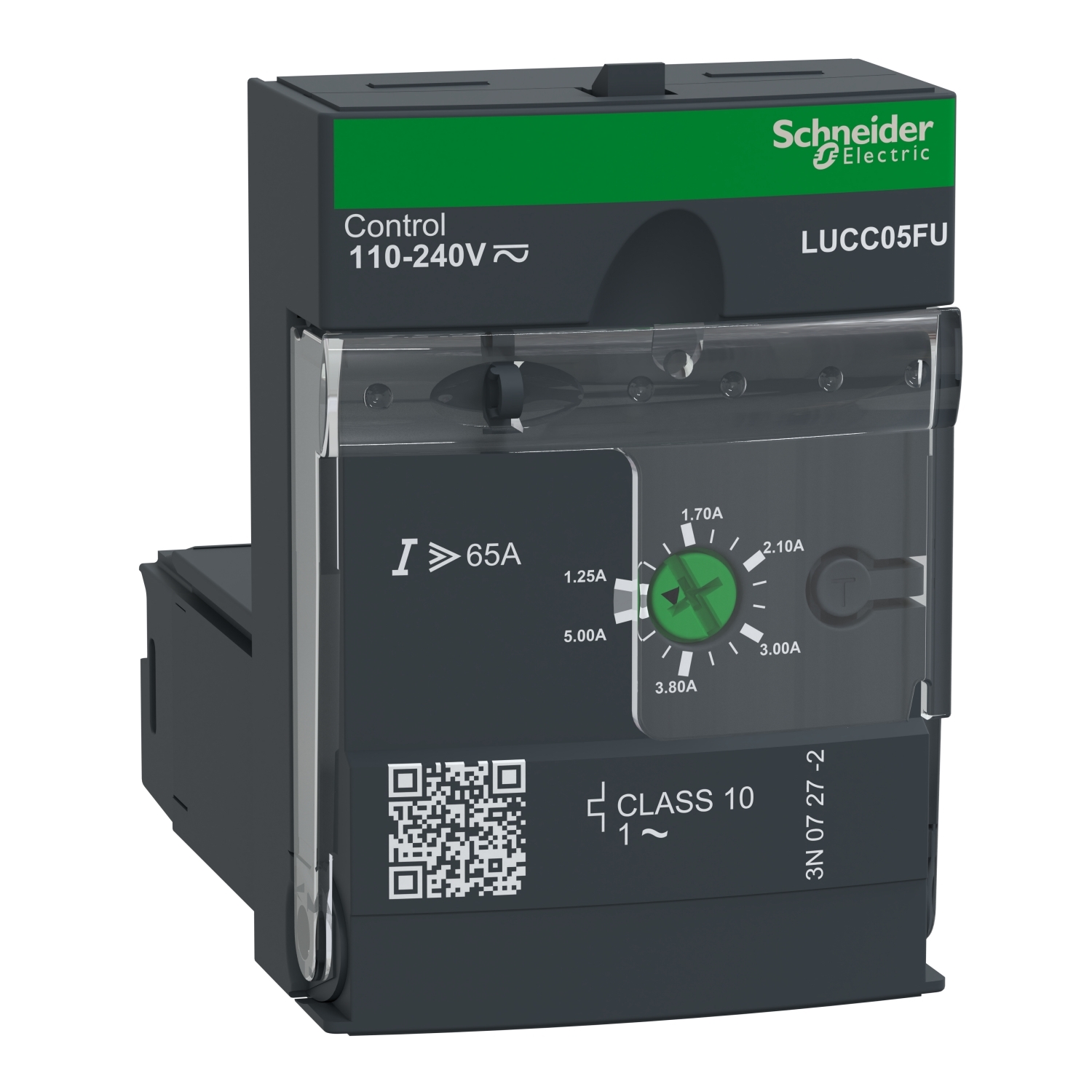

LUCC05FU TeSys Plug-In Front Face Advanced Control Unit, 1 Poles, For Use With LUFN/LUFC00 Power Base and LU2B12FU/LU2B32FU/LU2B38FU Reversing Contactor Breaker

MFR:
Schneider Electric
MFR #:
LUCC05FU
Item #:
170033

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 0.55kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 110-240V AC / 110-220V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

Manuals & Documentation
Catalog Number LUCC05FU
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640746&lang=en-us
GTIN 03389110364750
