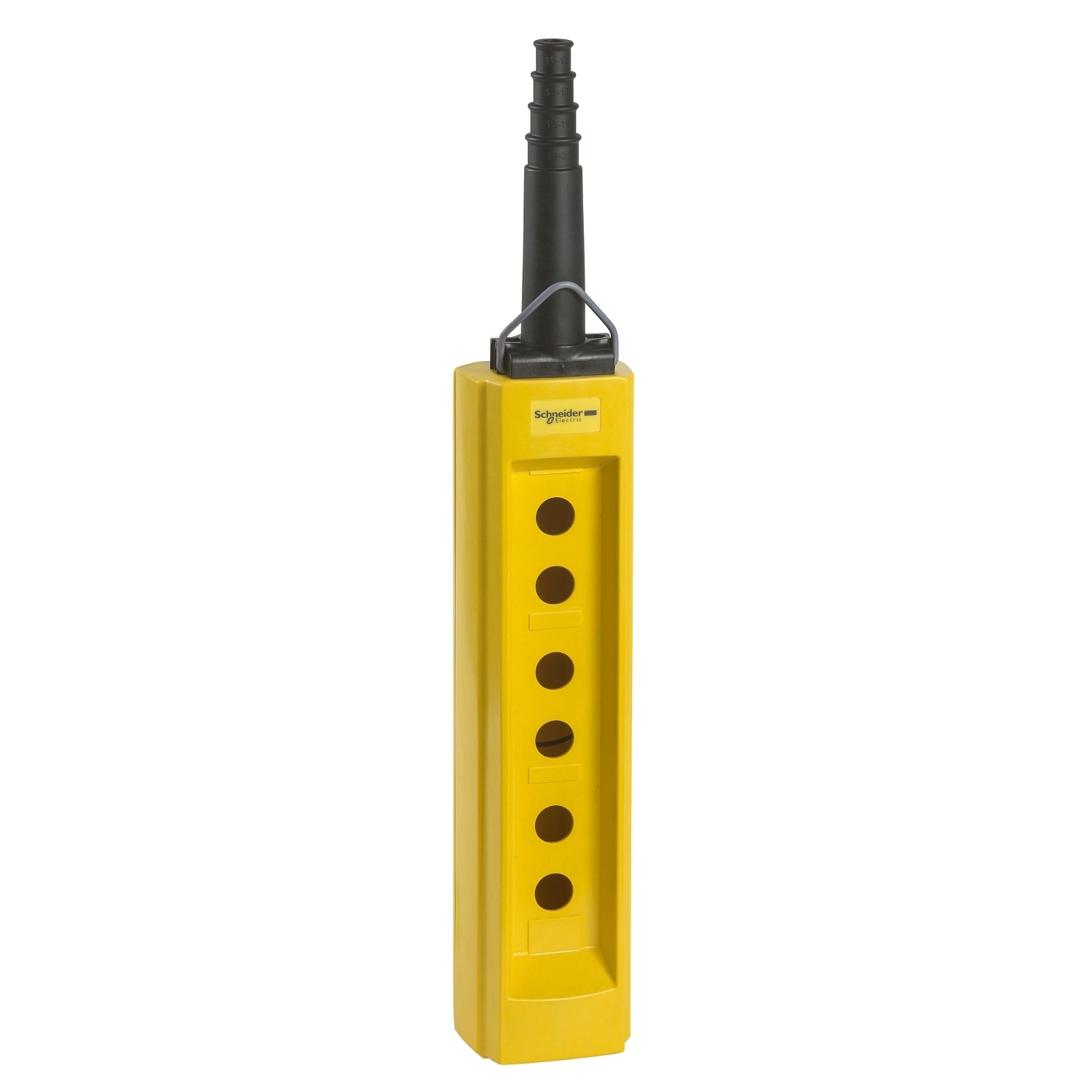

XACB06 Harmony Type XACA 6-Button Pendant Control Station
- MFR:
- Schneider Electric
- MFR #:
- XACB06
- Item #:
- 169750
XACB06 Harmony Type XACA 6-Button Pendant Control Station
- MFR #:
- XACB06
- Item #:
- 169750

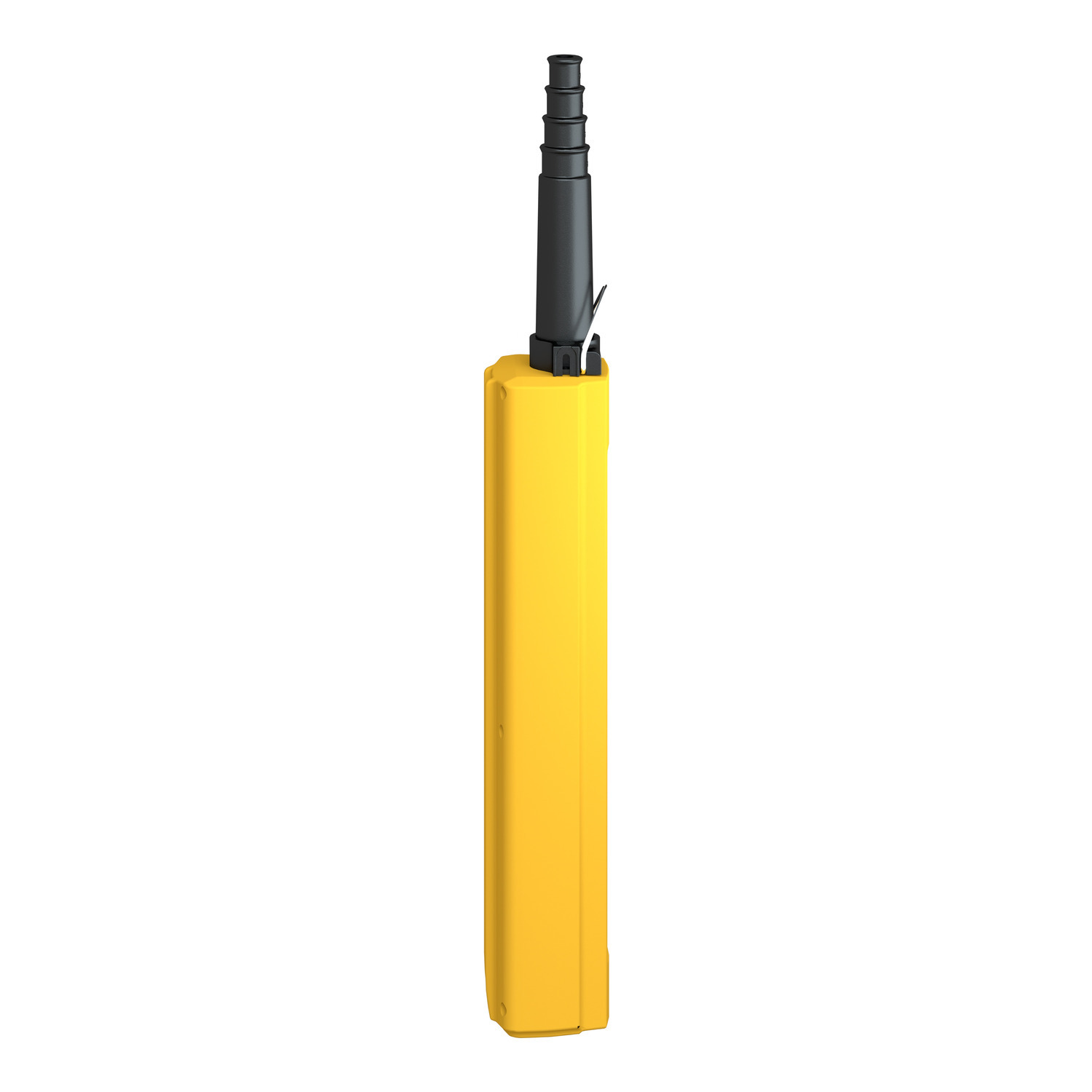

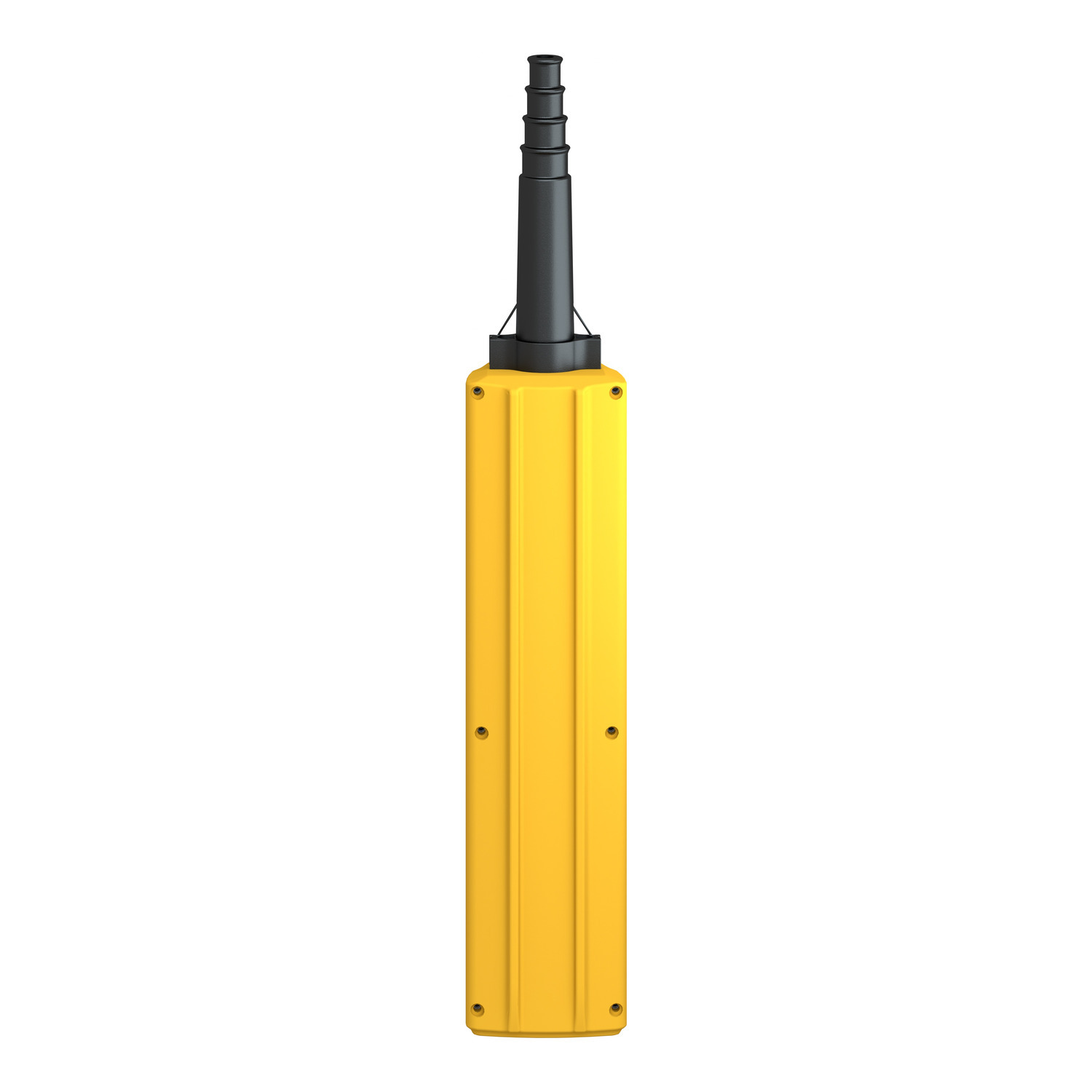

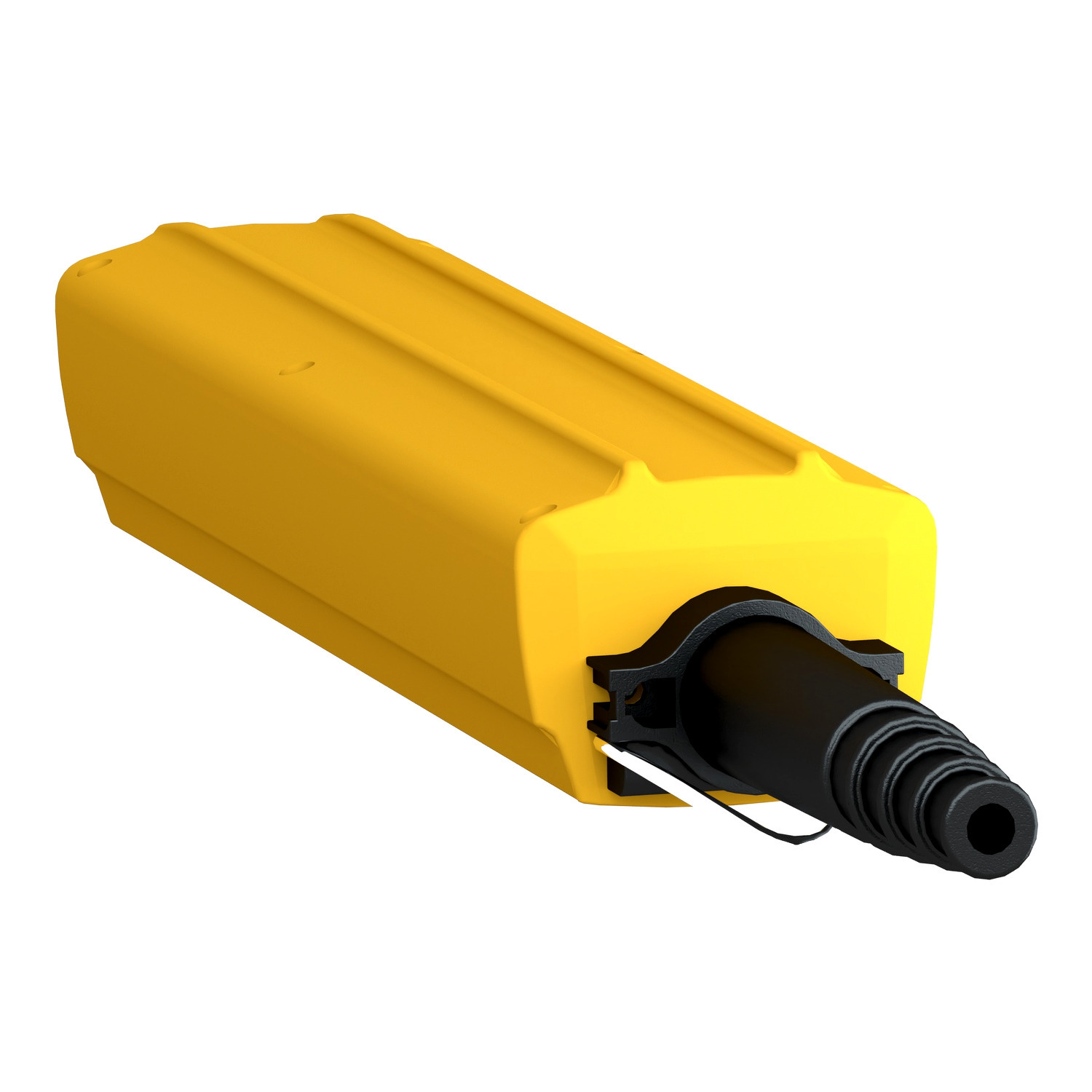

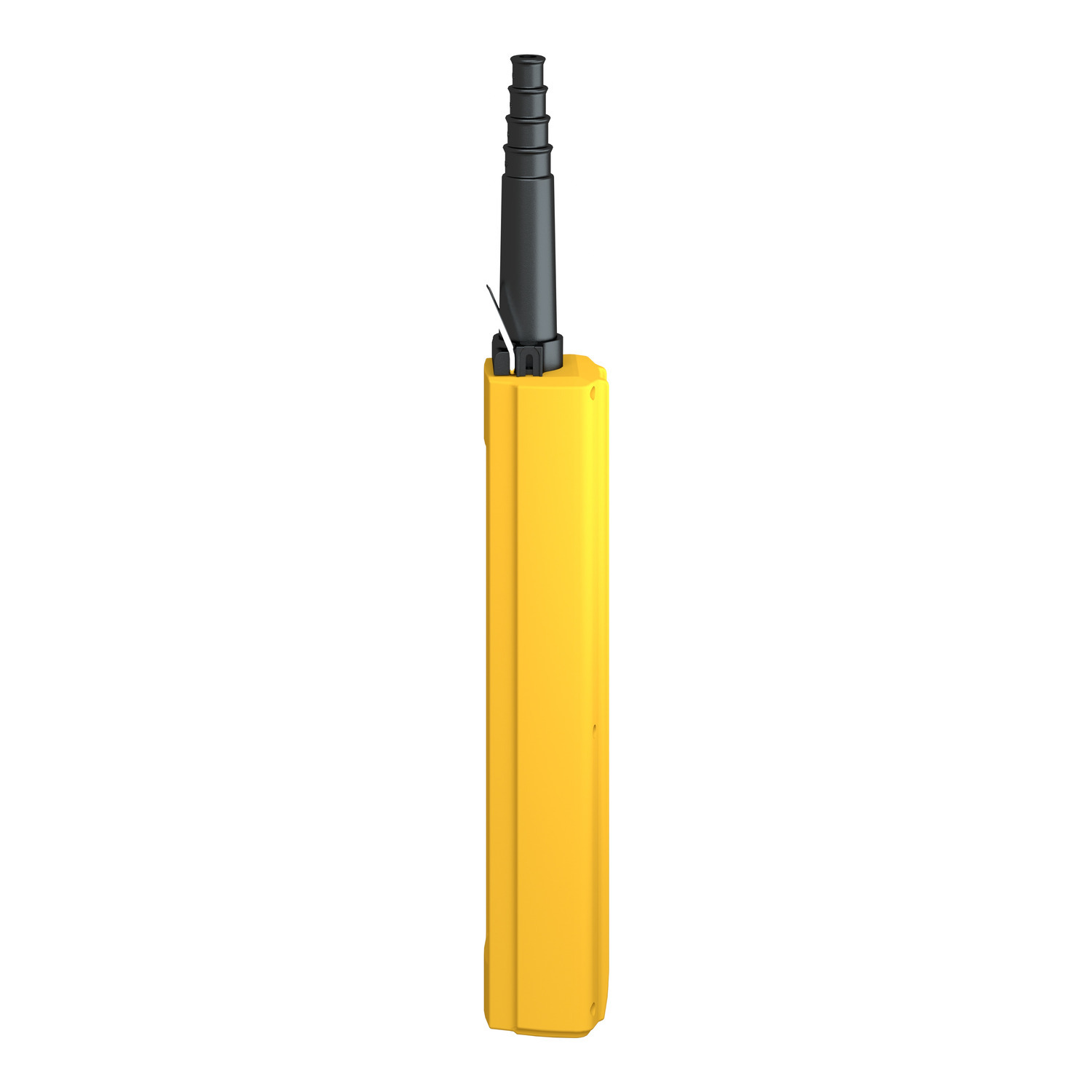

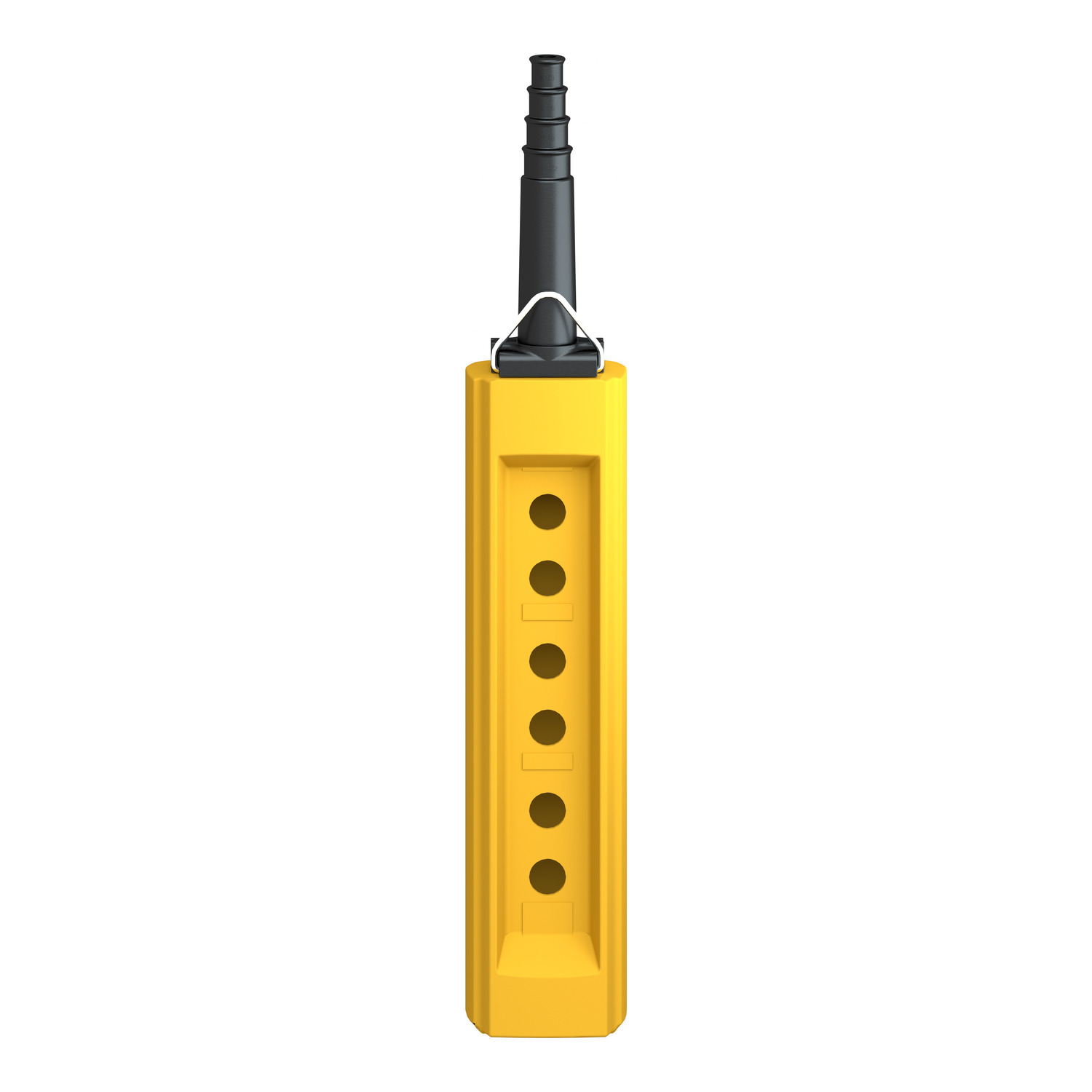

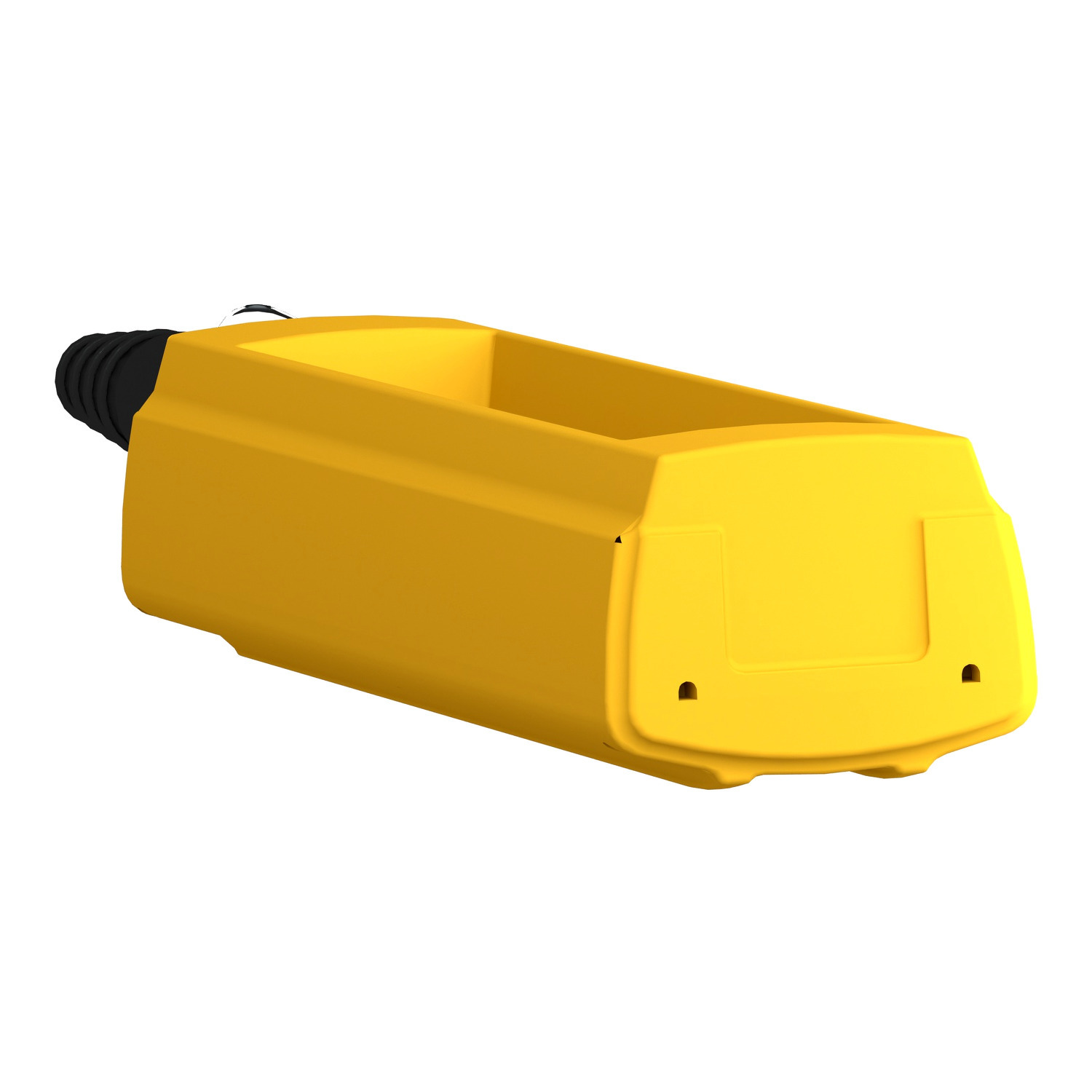

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 6 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Manuals & Documentation
| Catalog Number | XACB06 |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Application | Control circuit;power circuit |
| Cable Entry | Rubber sleeve with stepped entry 10-22 mm |
| Enclosure | Glass reinforced polyester |
| Special Features | Empty enclosure |
| Standard | CSA type 4;IK08 conforming to IEC 62262;CSA C22.2 No 14;IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=673772&lang=en-us |
| GTIN | 03389110640526 |
| Item Type | Pendant control station;Double insulated |
