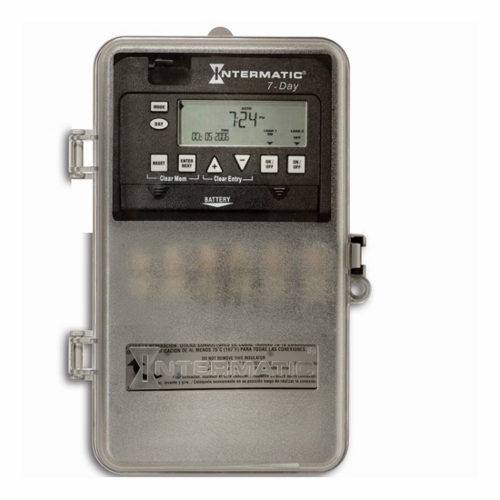

ET1725CPD82 ET1700 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- ET1725CPD82
- UPC:
- 078275109926
- Item #:
- 169615
ET1725CPD82 ET1700 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- ET1725CPD82
- UPC:
- 078275109926
- Item #:
- 169615
Manuals & Documentation
| Catalog Number | ET1725CPD82 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | China |
| Made in USA | No |
| Action | 2 x SPST |
| Amperage Rating | 30 |
| Application | Outdoor, HVACR, Industrial |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Rating | 30 AMP @ 120/240 VAC (Resistive NO), 20 AMP @ 28 VDC (Resistive NO), 30 AMP @ 120/240 VAC (Inductive NO), 5 AMP @ 120/240 VAC (Tungsten NO), 20 AMP @ 120 - 277 VAC (Ballast NO) |
| Enclosure | NEMA 3R Plastic |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: 7-Day, Multi-Voltage, Battery Backup, Pulse Output, 1 Year Warranty, Automatic Adjustment for Daylight Saving Time |
| Standard | cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed |
| UPC | 078275109926 |
| GTIN | 00078275109926 |
| Item Type | Electronic |
| Operating Temperature | -40 to +155 DEG F, -40 to +68 DEG C |
| Timing Range | 1 MIN - 6 DAYS 23 HR 59 MIN |
| Voltage Rating | 120 - 277 |
