SCHNEIDER ELECTRIC

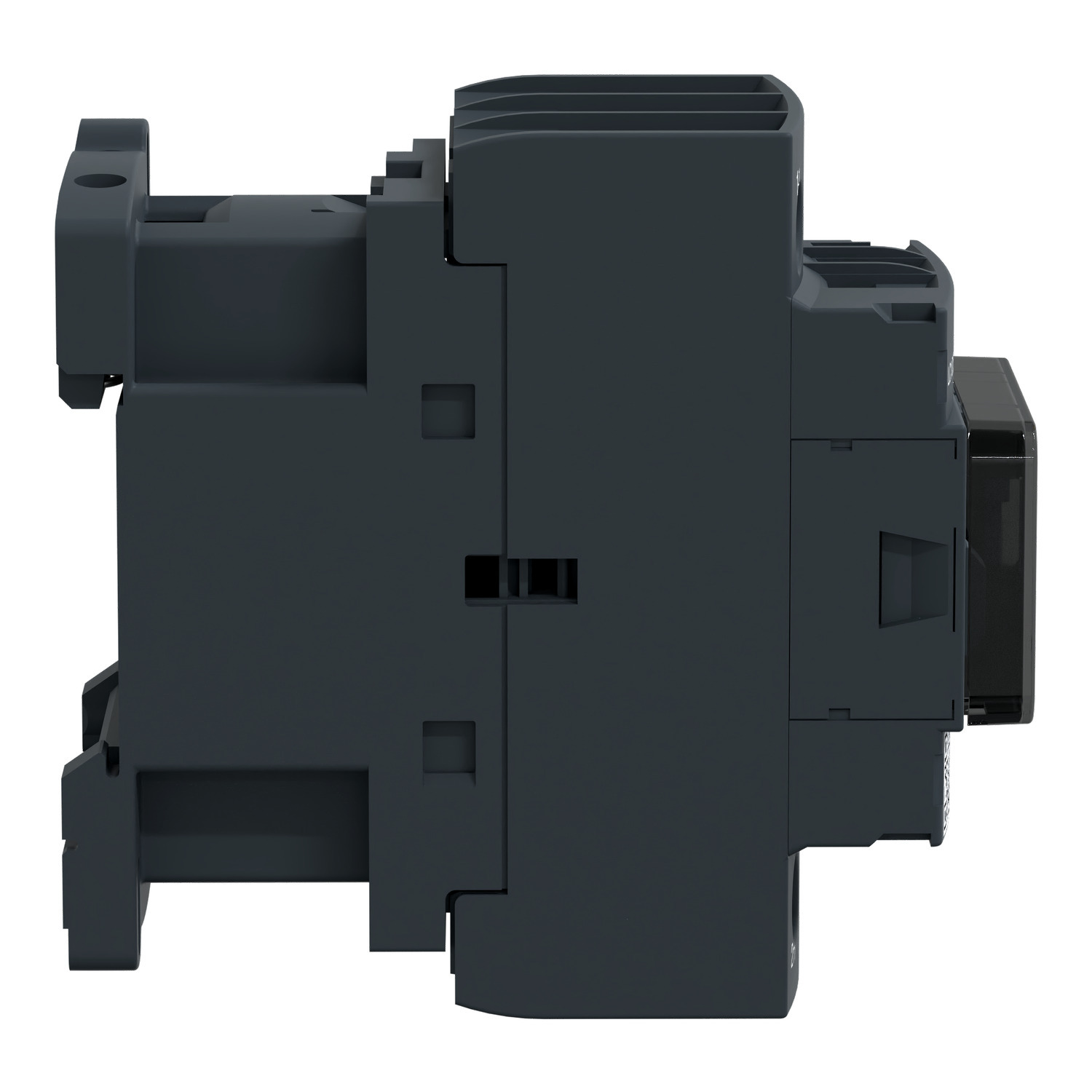

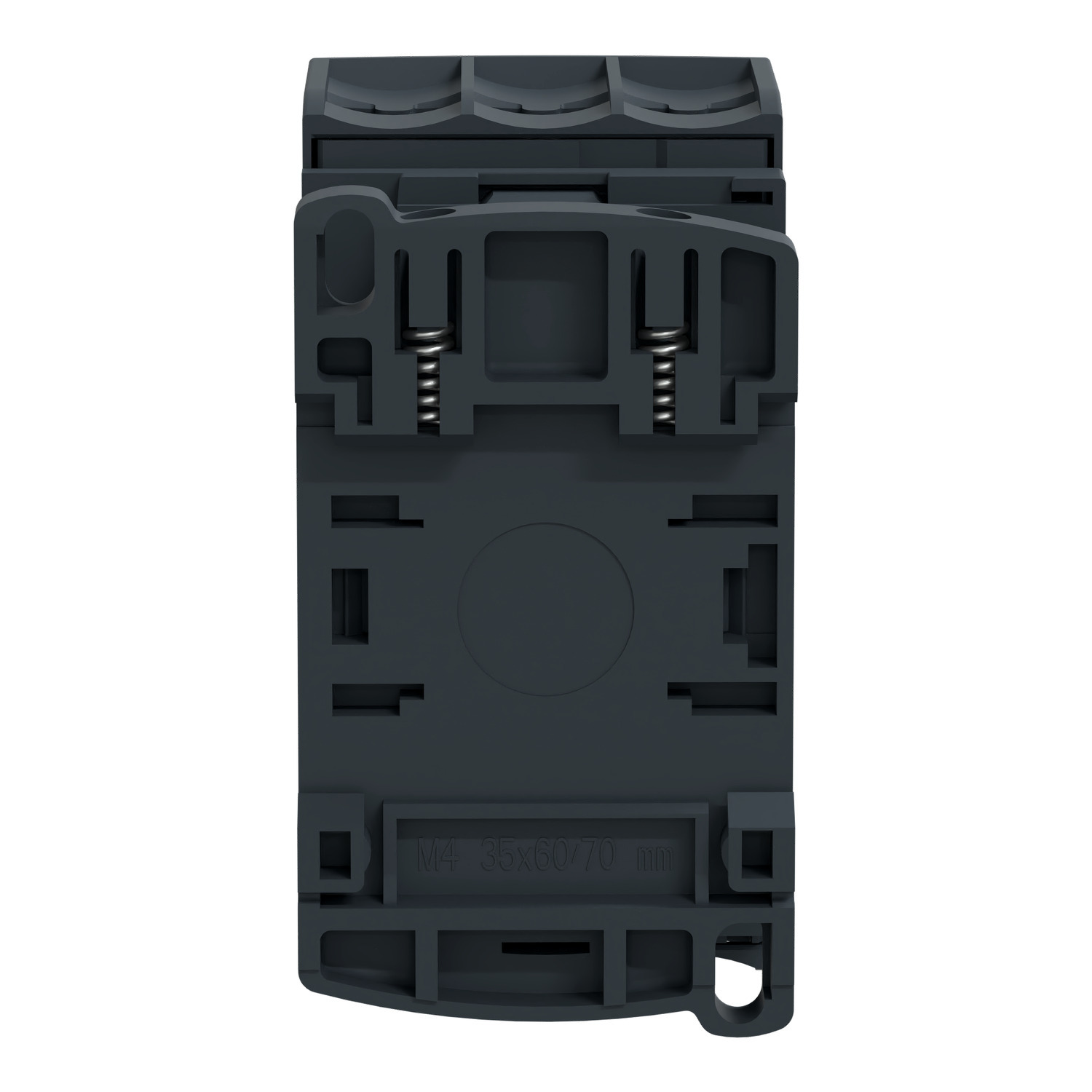

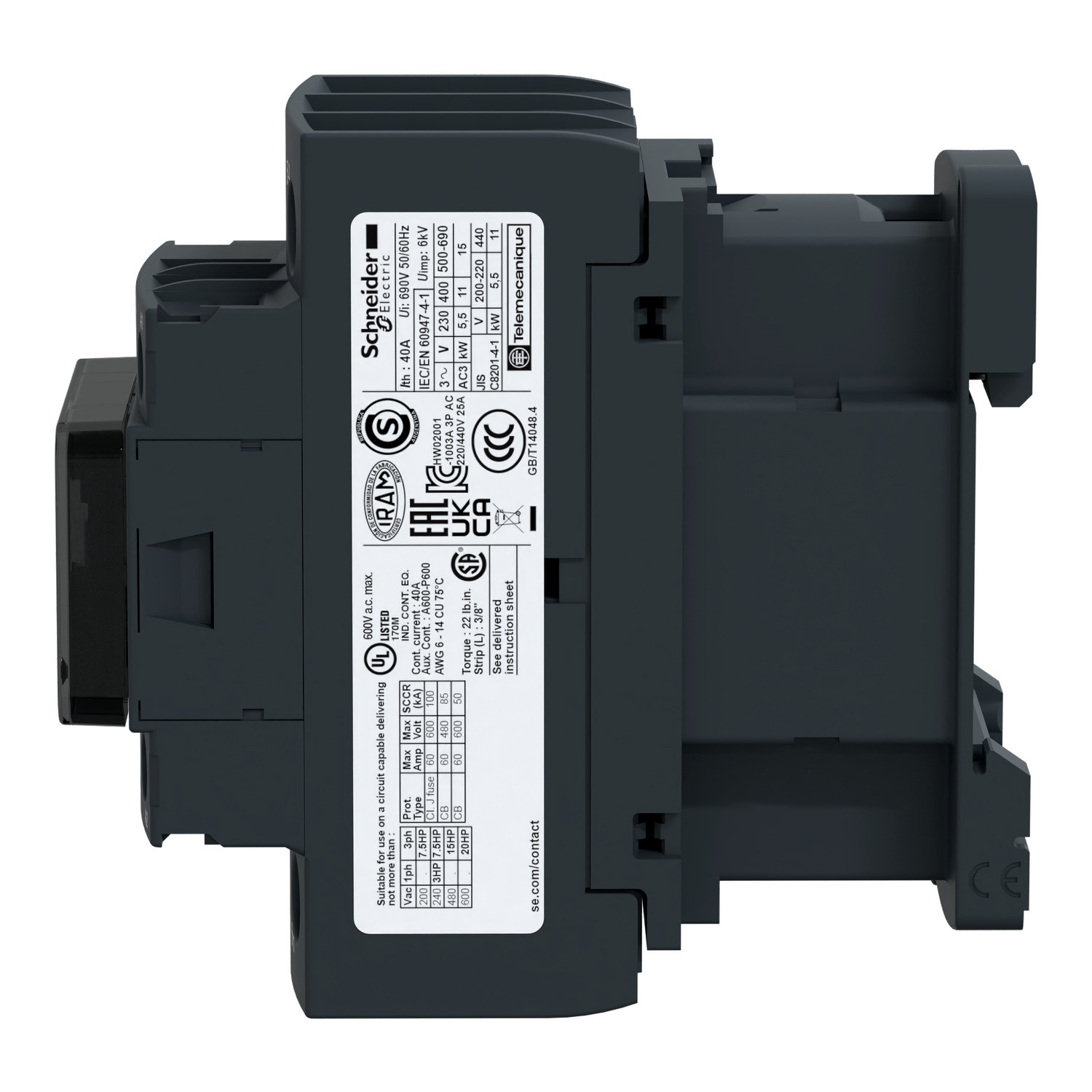

LC1D32T7 TeSys D D-Line LC1D Standard IEC Contactor With Protective Cover, 480/690 V AC, 300 V DC V Coil, 32/50 A, 3NO Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
LC1D32T7
Item #:
169281

IEC contactor, TeSys D, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 480VAC 50/60Hz coil, open

Manuals & Documentation
Catalog Number LC1D32T7
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Indonesia
Made in USA No
Application Resistive load;motor control
Coil Voltage 480 V AC 50/60 Hz
Connection Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Rail Plate
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=616270&lang=en-us
GTIN 03389110350807
Item Type Contactor
