SQUARE D

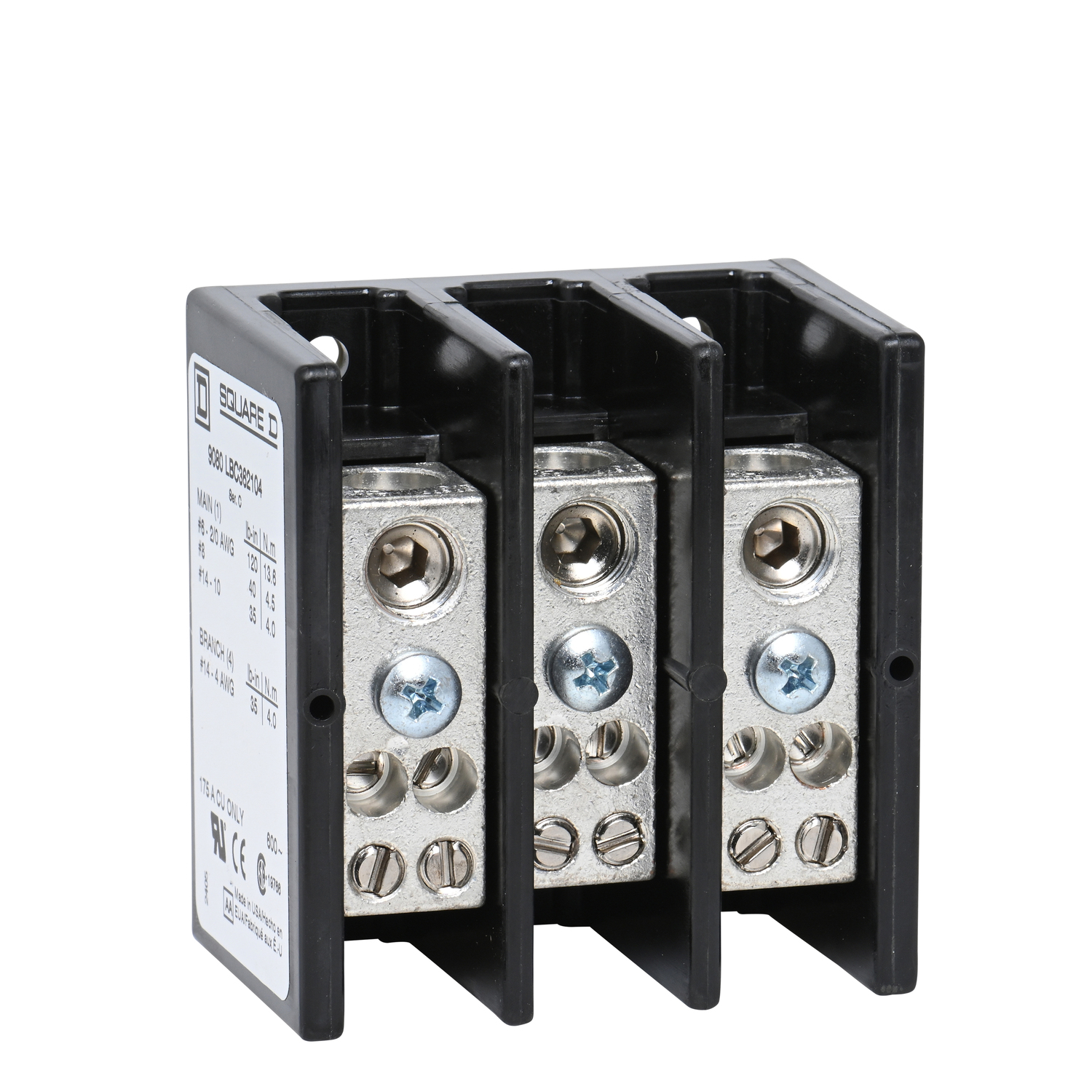

9080LBC362104 TeSys Linergy General Purpose Linergy Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 175 A, 3 Poles, (1) 14 to 2/0 AWG, (4) 14 to 4 AWG Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBC362104
UPC:
785901097662
Item #:
169240

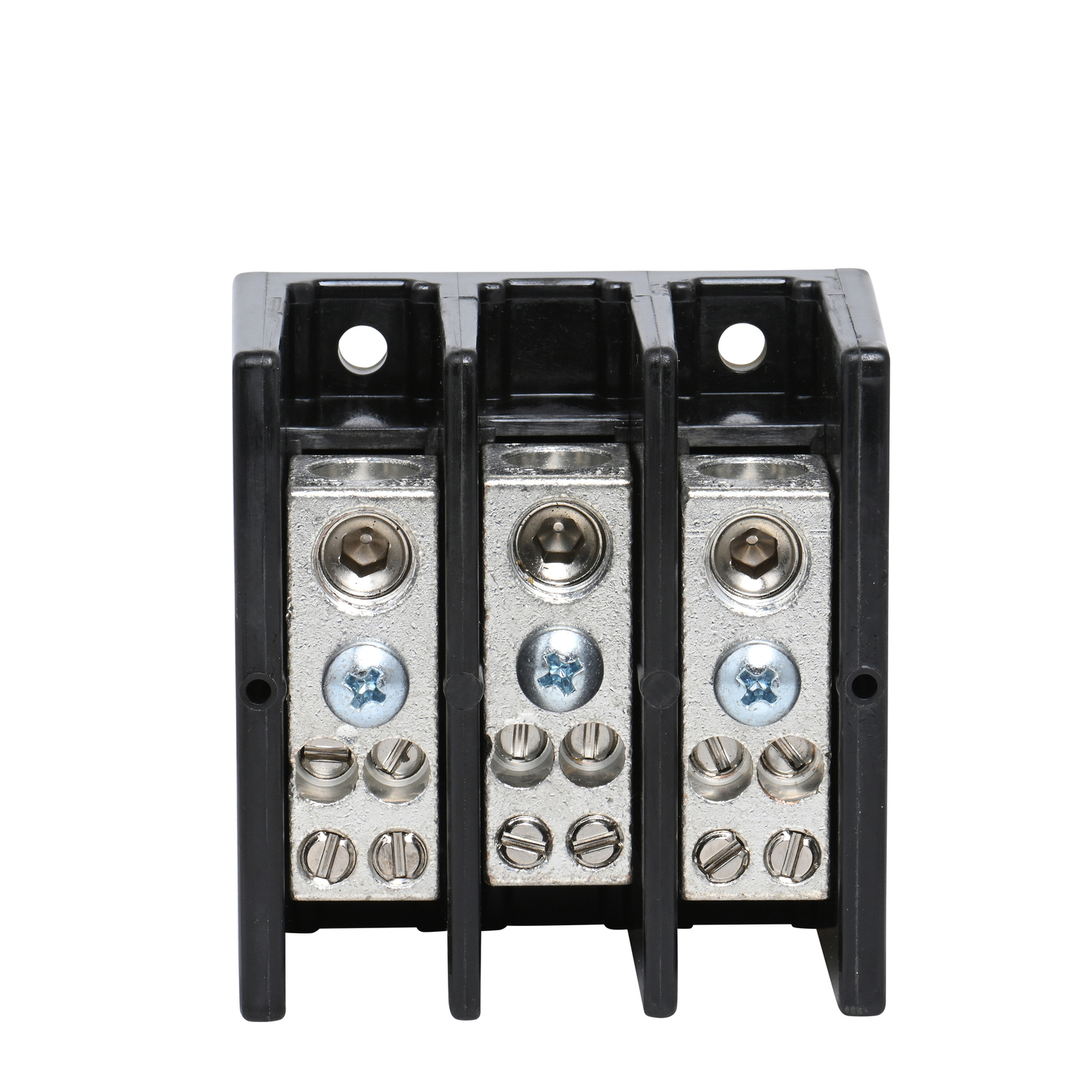

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #18 to 2/0 copper wire. The load side lug is rated to accept one #14 to #4 copper wire. The lugs are made of copper. The lugs are rated for 175 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBC362104
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes

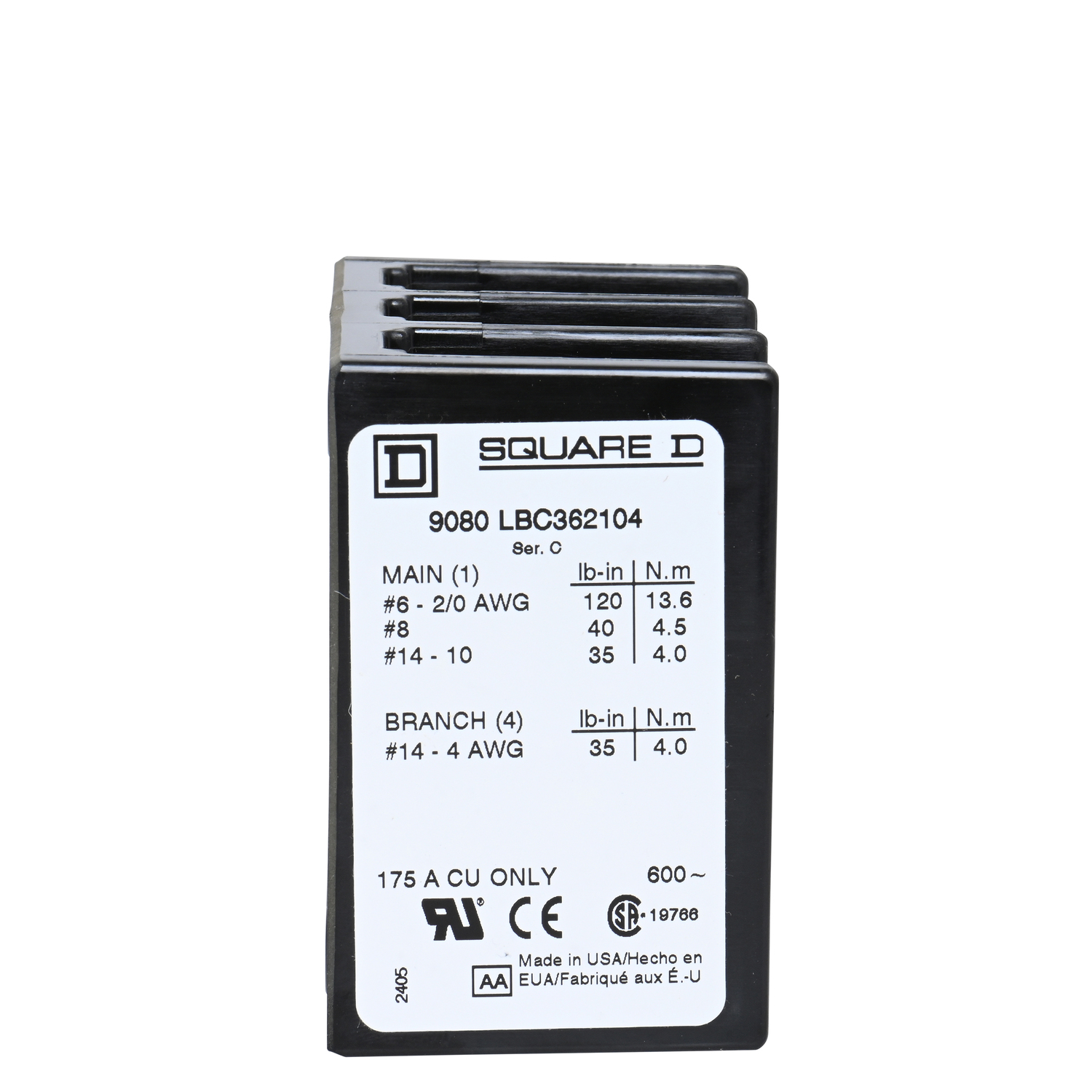

Connection Tin plated copper lugs;Line lug 40 lbf.in AWG 8 copper;line lug 35 lbf.in AWG 14...AWG 10 copper;line lug 120 lbf.in AWG 6...AWG 2/0 copper;load lug 35 lbf.in AWG 14...AWG 4 copper
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373035&lang=en-us
UPC 785901097662
GTIN 00785901097662
Item Type Power Distribution Block;9080LB23
Width 2.75
Width UOM Inch
Height 2.88
Height UOM Inch
Depth 1.78 IN
