Appleton

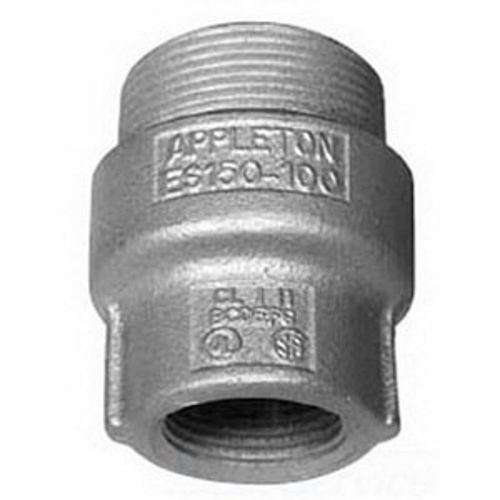

S150100 Sealing Hub; 1-1/2 Inch x 1 Inch, Male x Female, Malleable Iron

MFR:
Appleton Electric
MFR #:
ES150100
UPC:
781381703222
Item #:
169060

UNILETS Sealing Hub, Size: 1 X 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X Tapered FNPT, Cubic Capacity: 3.1 CU-IN, Length: 3.13 IN, Height: 2-1/

Manuals & Documentation

Features

  • Dimension: 2.250 Inch Overall Dia x 3.130 Inch Height
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • Allows up to 25% conduit fill in compliance with the national electrical code
Catalog Number ES150100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit and IMC
Connection Tapered MNPT X Tapered FNPT
Cubic Capacity 3.1 CU IN
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Allows up to 25 PCT conduit fill in compliance with the National Electrical Code; Can be used as a male thread enlarger or conduit hub in an ordinary location; UL listed for use with Kwiko A sealing compound, also listed with certain competitors sealing cement, contact factory for details; Kwiko A cement required: 1 OZ/GM; Used to seal vertical conduit risers at switch gear and motor control centers, sheet metal structures or cast boxes and enclosures
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
RoHS Indicator Yes
UPC 781381703222
GTIN 00781381703222
Item Type Sealing Hub
Length 4.5000
Length UOM Inch
Width 3.6000
Width UOM Inch
Height 3.0000
Height UOM Inch
Weight 1.150
Weight UOM Pounds
Size 1 X 1-1/2
