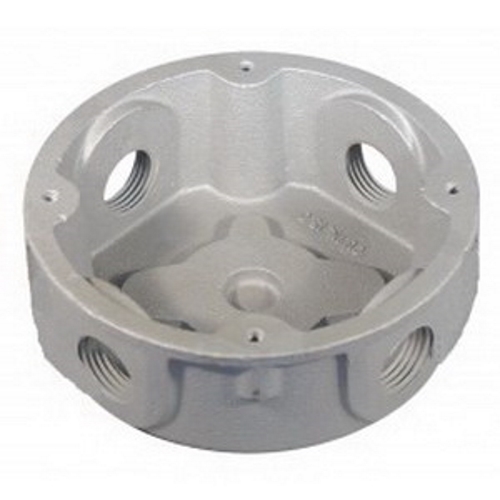

UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (4) 3/4 IN Tapped Openings, Knockouts: Yes, Height: 4-1/2 IN, Width: 4-1/2 IN, Depth: 1-5/16 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate
Manuals & Documentation
| Catalog Number | JBX-75 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (4) 3/4 IN Tapped Openings |
| Knockouts | Yes |
| Material | Malleable Iron |
| Special Features | Raintight when enclosed and gasketed with hub or blank covers; Furnished with internal ground screw; Blind cover screw holes prevent conductor damage during installation, provide water-tightness; Furnished with four tapped holes and two close-up plugs; Serve as pulling fittings; Provide openings for splicing; Make straight connections and 90 DEG bends in conduit runs; Permit access to conductors for maintenance |
| Standard | UL 514A , UL File Number E2527, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381465359 |
| GTIN | 00781381465359 |
| Item Type | Outlet Box |
| Length | 16.0000 |
| Length UOM | Inch |
| Width | 10.2000 |
| Width UOM | Inch |
| Height | 0.5400 |
| Height UOM | Inch |
| Weight | 0.430 |
| Weight UOM | Pounds |
| Size | 3/4 |
