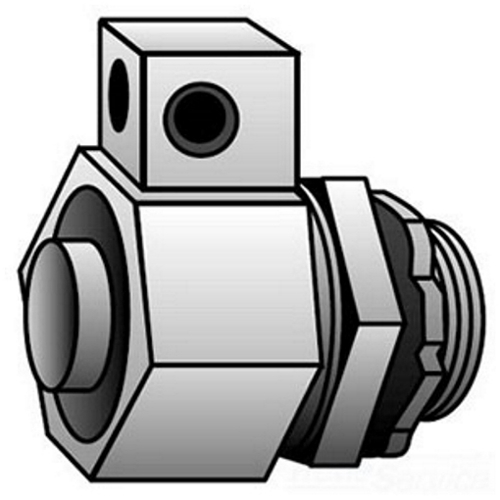

4Q-75L Ground-Tite Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 3/4 in Trade, 14 to 4 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated
- MFR:
- O-Z/Gedney
- MFR #:
- 4Q-75L
- UPC:
- 783126617375
- Item #:
- 168395
4Q-75L Ground-Tite Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 3/4 in Trade, 14 to 4 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated
- MFR #:
- 4Q-75L
- UPC:
- 783126617375
- Item #:
- 168395
Manuals & Documentation
| Catalog Number | 4Q-75L |
| Manufacturer | O-Z/Gedney |
| Brand | O-Z/Gedney |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Conductor Range | 14 - 4 |
| Connection | Compression X Tapered MNPT Hub |
| Finish | Zinc Electroplated |
| Material | Malleable Iron Body And Nut, Steel Ferrule |
| NEMA Rating | 4 |
| Special Features | 4Q-L fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Inspection windows in ferrule to ensure full engagement |
| Standard | Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20 |
| UPC | 783126617375 |
| GTIN | 00783126617375 |
| Item Type | Type 4Q-L Grounding Liquid Tight Straight Connector With Lug |
| Size | 44624 |
