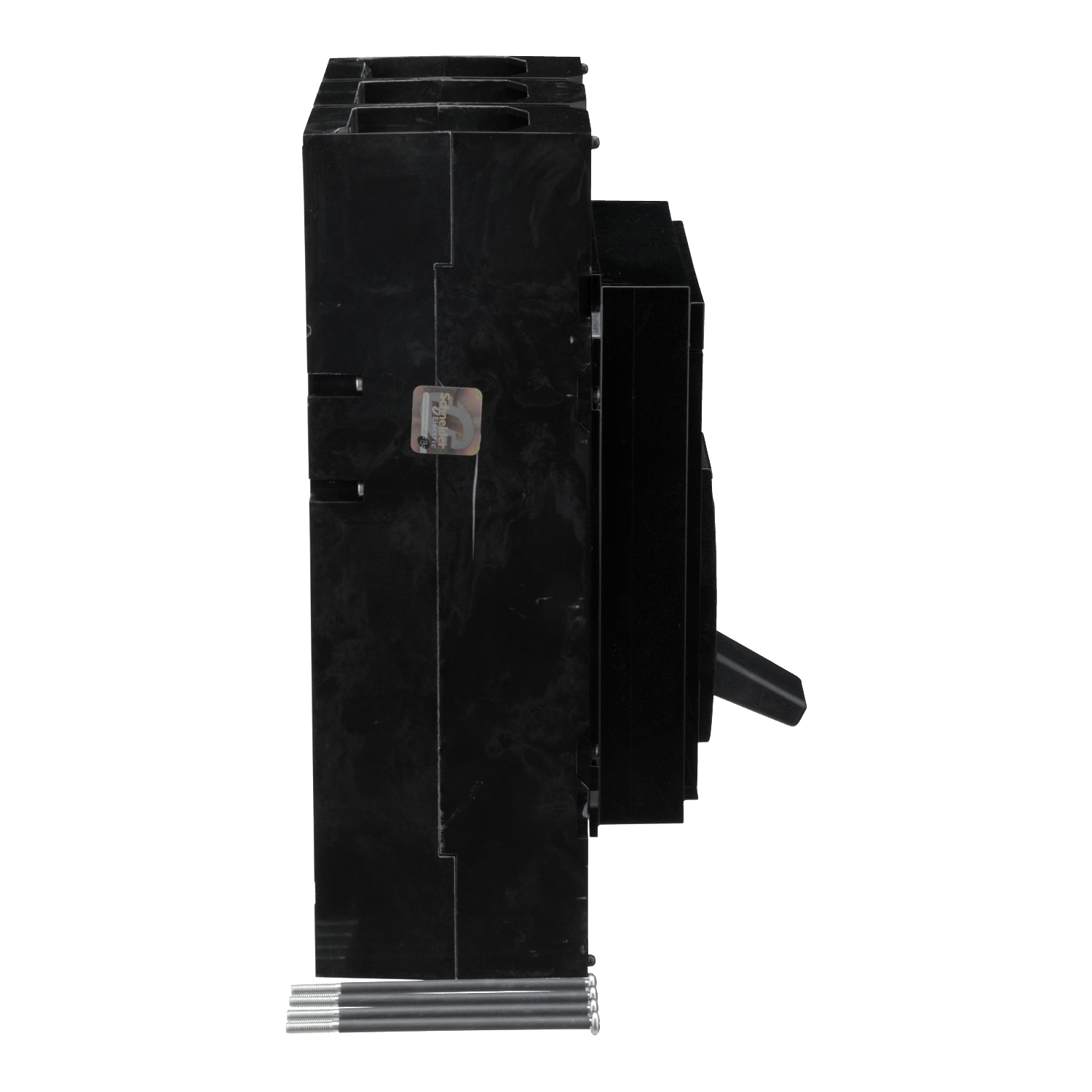

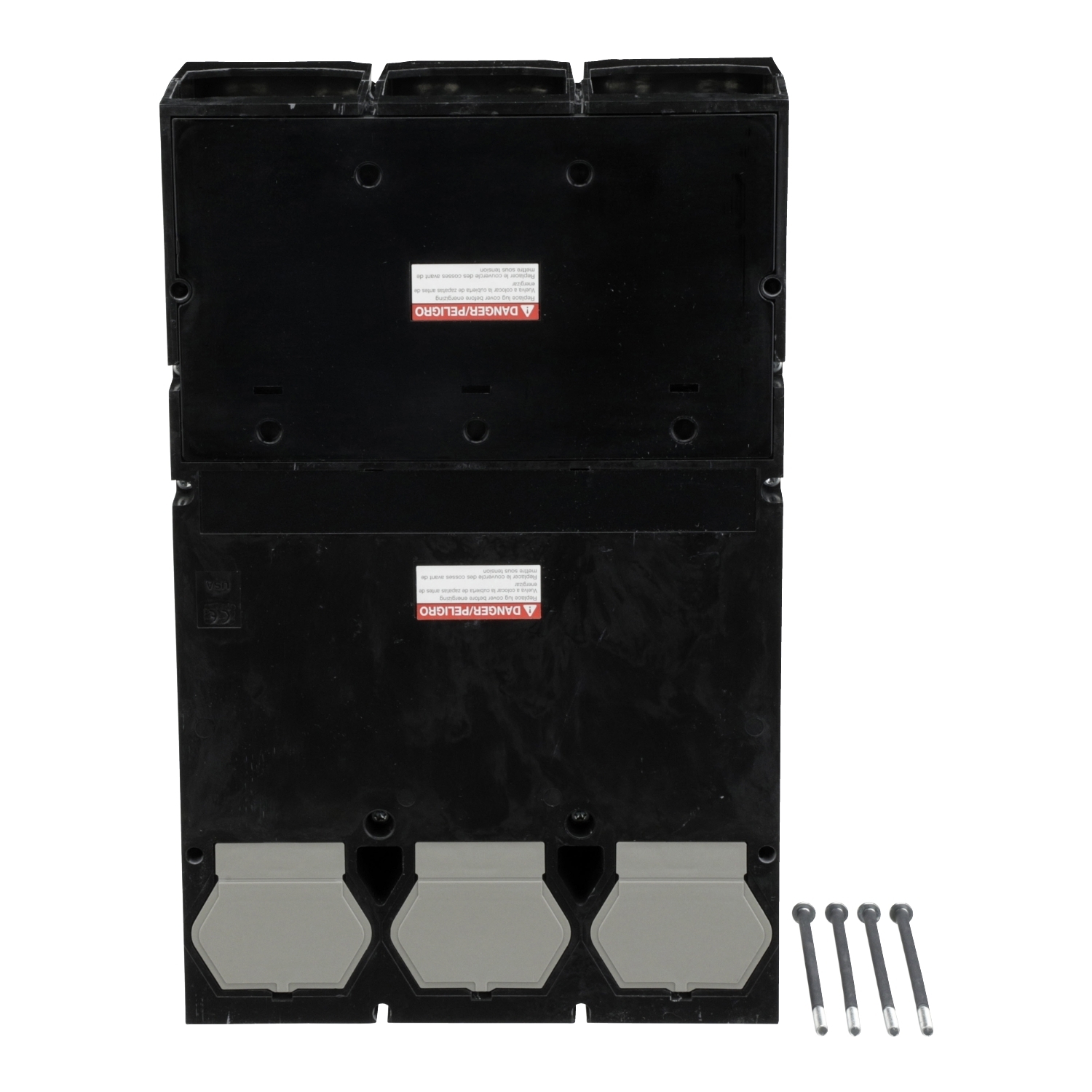

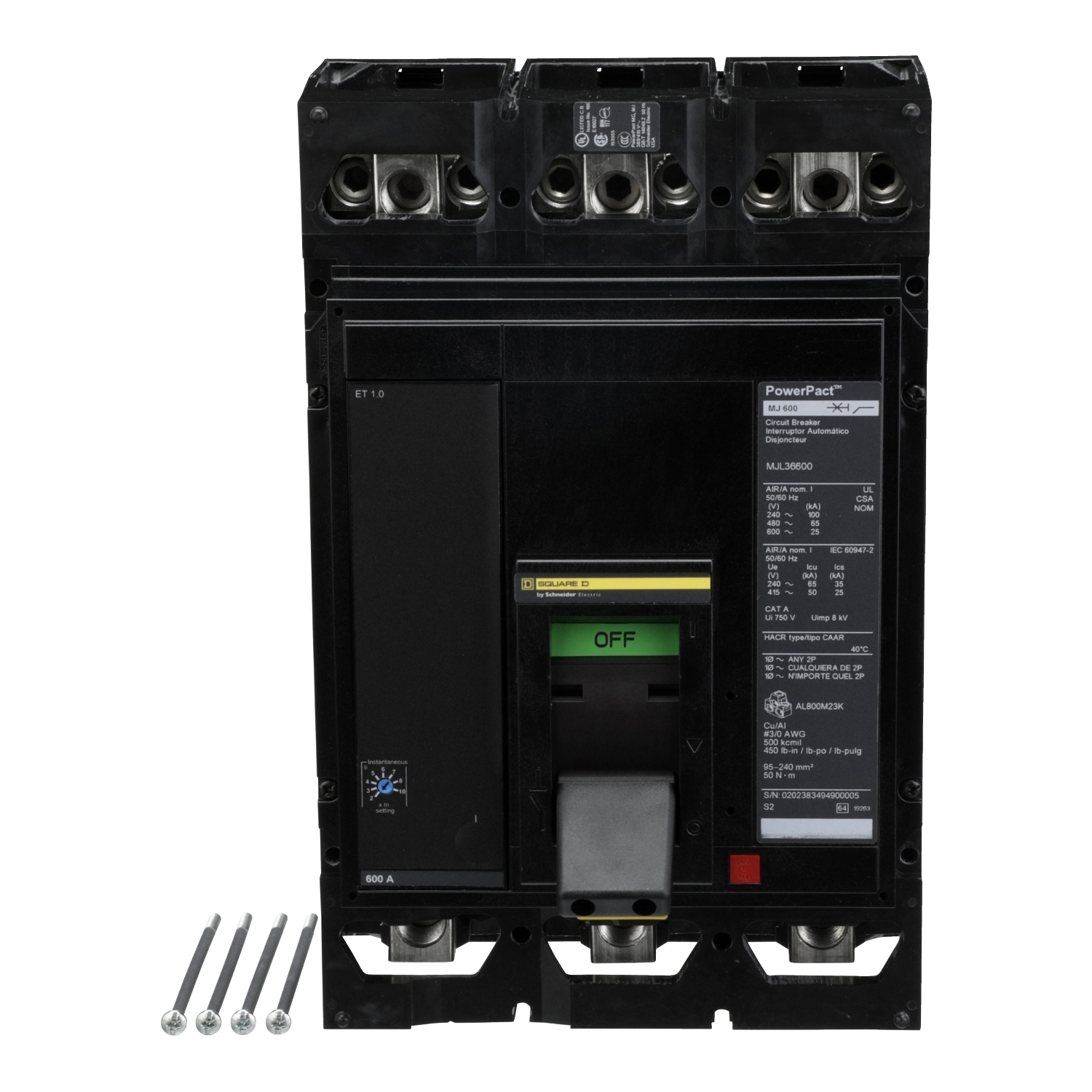

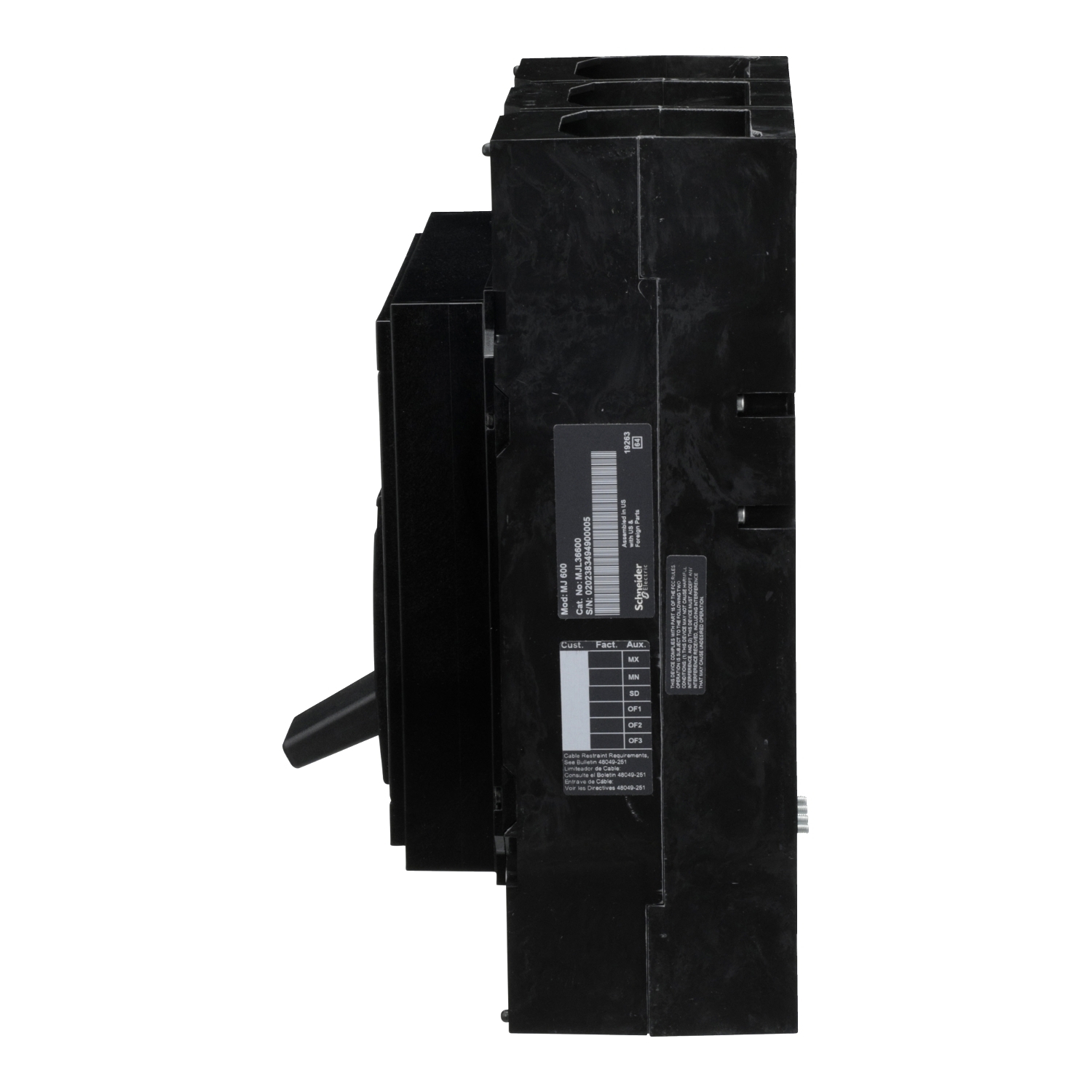

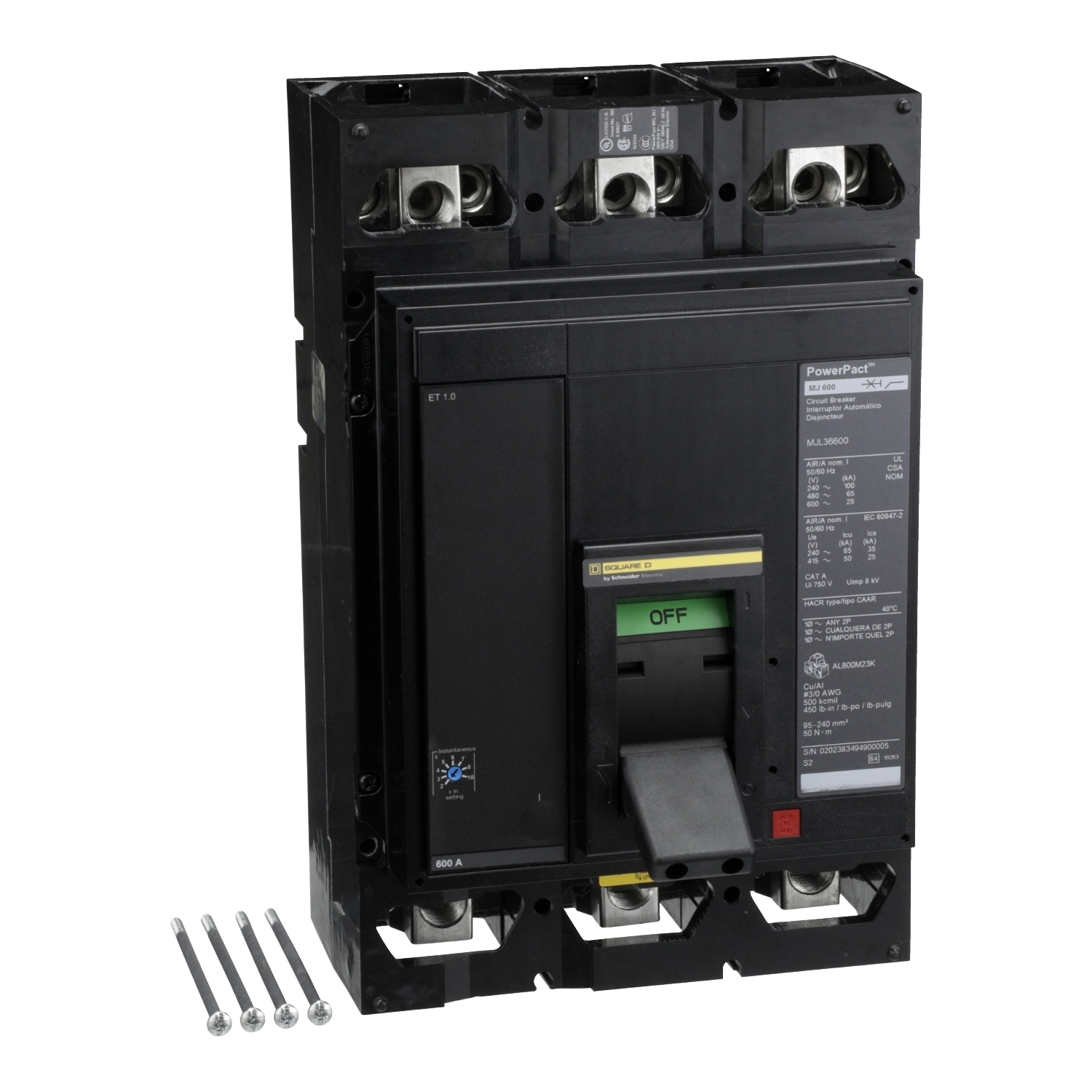

MJL36600 PowerPact Type MJL Molded Case Circuit Breaker, 600 V AC/250 V DC, 600 A, 25 kA Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- MJL36600
- UPC:
- 785901629306
- Item #:
- 167201
MJL36600 PowerPact Type MJL Molded Case Circuit Breaker, 600 V AC/250 V DC, 600 A, 25 kA Interrupt, 3 Poles, Electronic Trip
- MFR #:
- MJL36600
- UPC:
- 785901629306
- Item #:
- 167201
PowerPacTM-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
| Catalog Number | MJL36600 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, load;lugs, line; 3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
| Control | Operating handle |
| Number of Poles | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=431117&lang=en-us |
| UPC | 785901629306 |
| GTIN | 00785901629306 |
| Item Type | Circuit breaker |
| Width | 8.27 |
| Width UOM | Inch |
| Height | 12.86 |
| Height UOM | Inch |
| Depth | 8.05 IN |
| Trip Type | Electronic, basic, ET 1.0, |
