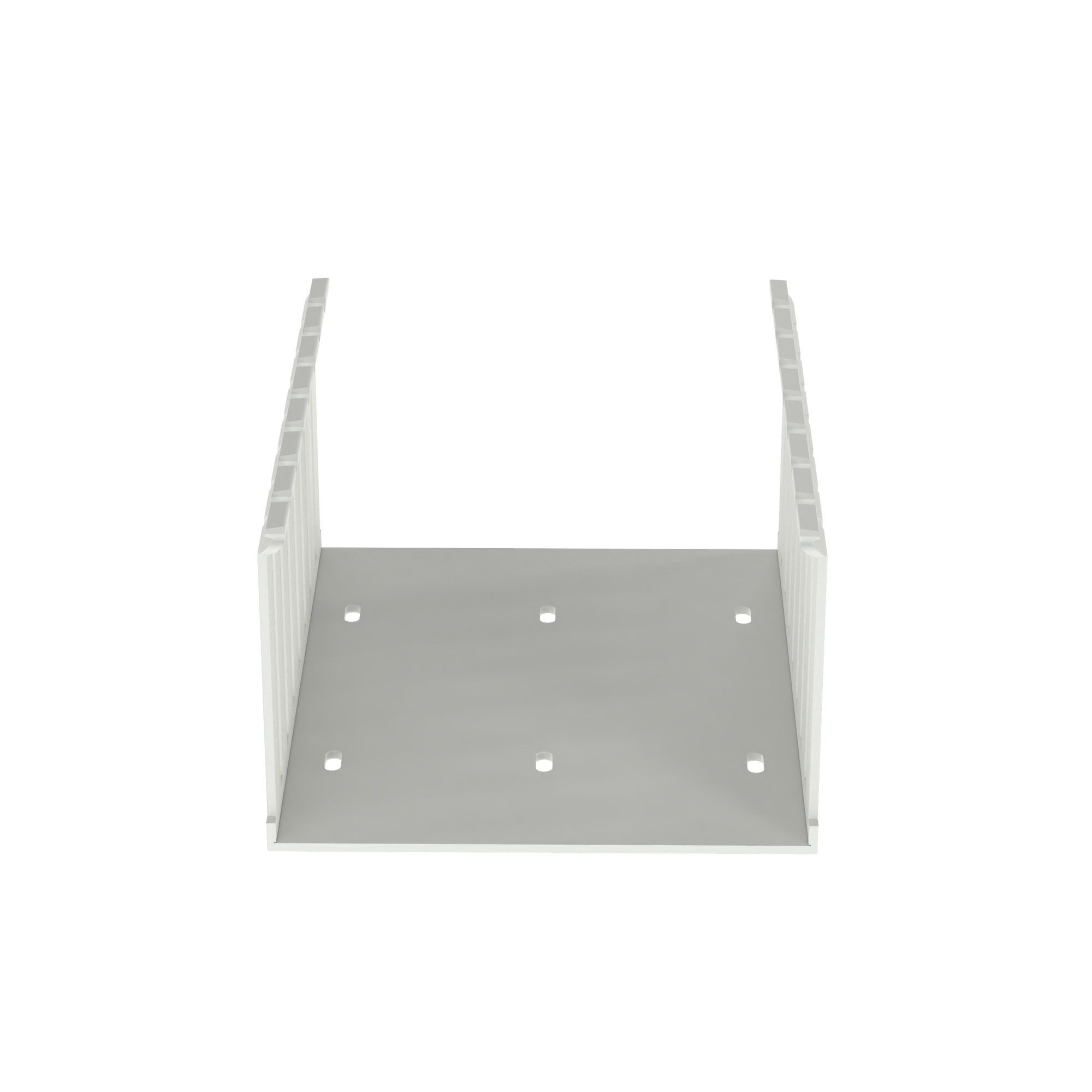

The G6X4WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. 6.0 x 4.0 (152.4 mm x 101.6 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
Manuals & Documentation
| Catalog Number | G6X4WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | White |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| UPC | 074983722594 |
| GTIN | 00074983722594 |
| Item Type | Base Wiring Duct |
| Width | 6.23 |
| Width UOM | Inch |
| Size | 6.25 x 4.15 |
