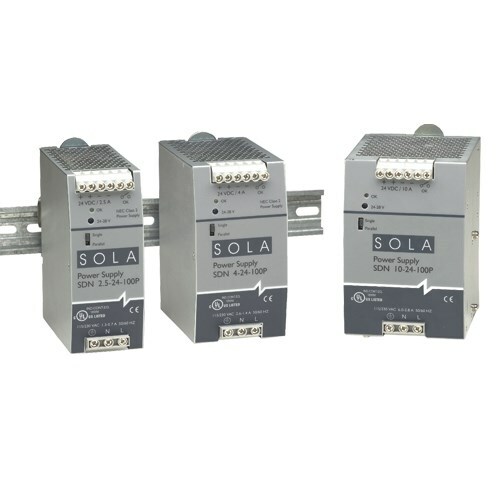

SDN10-24-100P SDN-P Compact Power Supply, 115/230 V AC Input, 24 VDC Output, 240 W Power Rating, 2.2/1 A, DIN Rail Mount
- MFR:
- SolaHD
- MFR #:
- SDN10-24-100P
- UPC:
- 783472153213
- Item #:
- 166794
SDN10-24-100P SDN-P Compact Power Supply, 115/230 V AC Input, 24 VDC Output, 240 W Power Rating, 2.2/1 A, DIN Rail Mount
- MFR #:
- SDN10-24-100P
- UPC:
- 783472153213
- Item #:
- 166794
Manuals & Documentation
| Catalog Number | SDN10-24-100P |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment |
| Cable Size | 16 to 10 AWG Solid, 16 to 12 AWG Flexible |
| Enclosure | Class 1 Zone 2, IP20 |
| Frequency Rating | 47 - 63 |
| Material | Metal Housing |
| Mounting | Din Rail |
| Phase | 1 |
| Special Features | Power Factor Correction (per EN61000-3-2), Auto Select 115/230 Vac, 50/60 Hz Input, DC OK Signal, Adjustable Voltage, Parallel Capability standard on all units, -10 DEG C to 60 DEG C operation without derating, Indefinite short circuit, overvoltage and overtemperature protection, Narrow width on rail for space critical applications, User-friendly front panel. |
| Standard | UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE |
| UPC | 783472153213 |
| GTIN | 00783472153213 |
| Item Type | SDN-P DIN Rail Series |
| Length | 2.56 |
| Width | 4.55 |
| Height | 4.88 |
| Environmental Conditions | 90 RH Humidity Range |
| Voltage Rating | 115/230 |
| Wattage | 16.4 |
