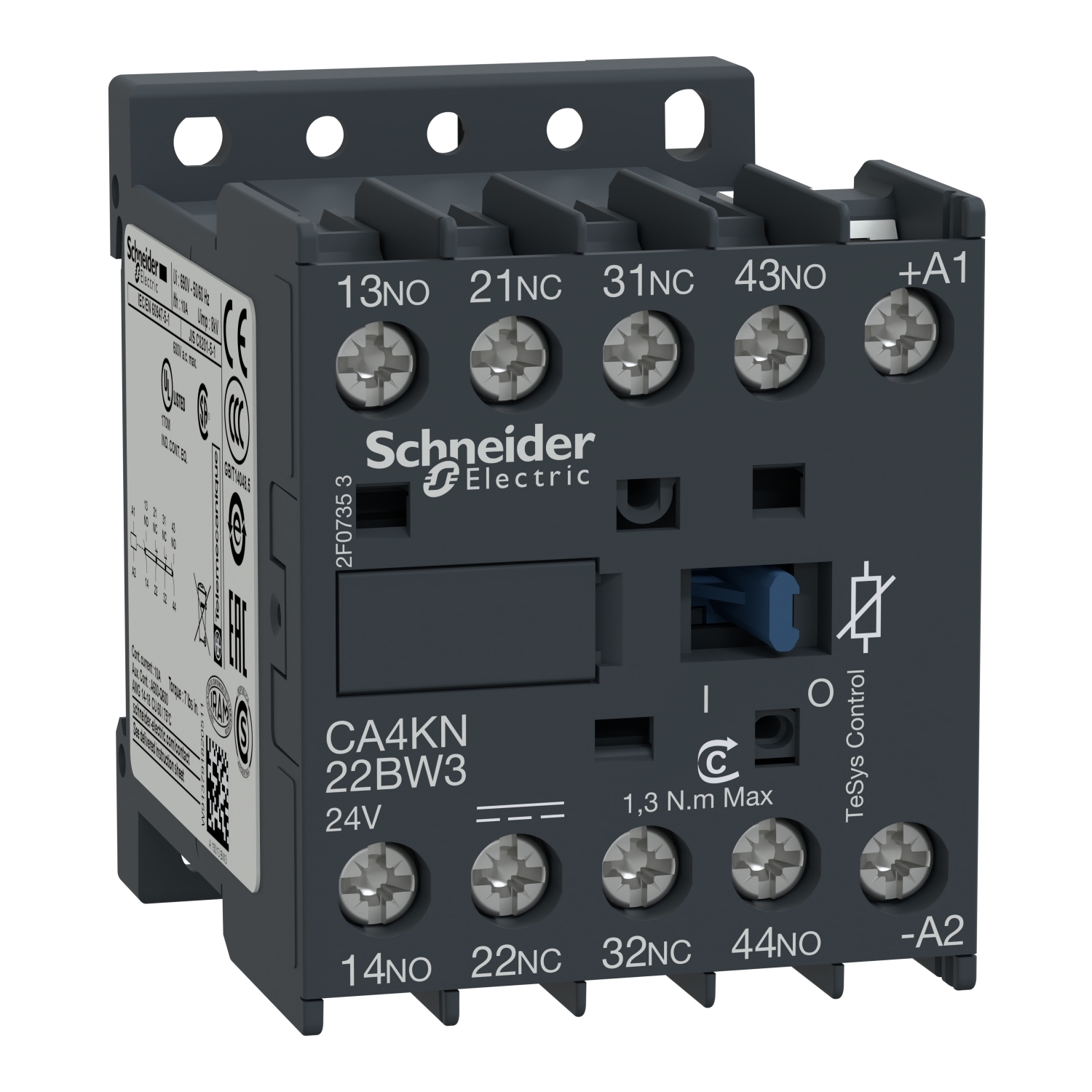

CA4KN22BW3 K Series Low Consumption Coil Control Relay, 10 A, 2NO-2NC 2 Form C Contact, 690 V AC, 24 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- CA4KN22BW3
- Item #:
- 165916
CA4KN22BW3 K Series Low Consumption Coil Control Relay, 10 A, 2NO-2NC 2 Form C Contact, 690 V AC, 24 V DC V Coil
- MFR #:
- CA4KN22BW3
- Item #:
- 165916
TeSys K control relay, 4 contacts (2NO+2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Manuals & Documentation
| Catalog Number | CA4KN22BW3 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=596366&lang=en-us |
| GTIN | 03389110428599 |
