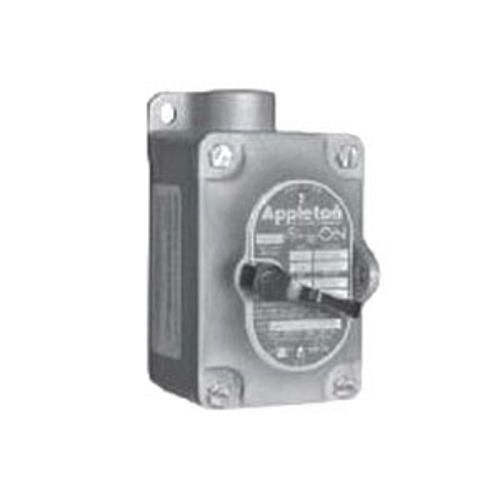

Dead-End Explosion-Proof Tumbler Switch, 120 - 277 VAC, 20 A, 1-Pole
- MFR:
- Appleton Electric
- MFR #:
- EFS175-F1
- UPC:
- 781381279758
- Item #:
- 16559
Dead-End Explosion-Proof Tumbler Switch, 120 - 277 VAC, 20 A, 1-Pole
- MFR #:
- EFS175-F1
- UPC:
- 781381279758
- Item #:
- 16559
EFS Series 1-Gang Tumbler Switch, Voltage Rating: 120 - 277 VAC, Amperage Rating: 20 AMP, Number Of Poles: 1, Actuator: Front Operated, Enclosure: NEMA 7CD, 9EFG, Mounting: Surface Mount With 3/4 IN Dead-End Hub, HP Rating: 1 HP At 120
Manuals & Documentation
| Catalog Number | EFS175-F1 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | For Arcing Of Enclosed Switches In Ignitable Atmospheres During Connect And Disconnect Operation Of Lighting And Light Power Loads |
| Enclosure | NEMA 7CD, 9EFG |
| Mounting | Surface |
| Special Features | Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; For installation in: Chemical plants, petrochemical plants, refineries, other process industries |
| Standard | UL 894, UL 1203, E10523, E81751 UL Listed, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III |
| UPC | 781381279758 |
| GTIN | 00781381279758 |
| Item Type | EFS Series 1-Gang Tumbler Switch |
| Voltage Rating | 120 - 277 |
