SQUARE D

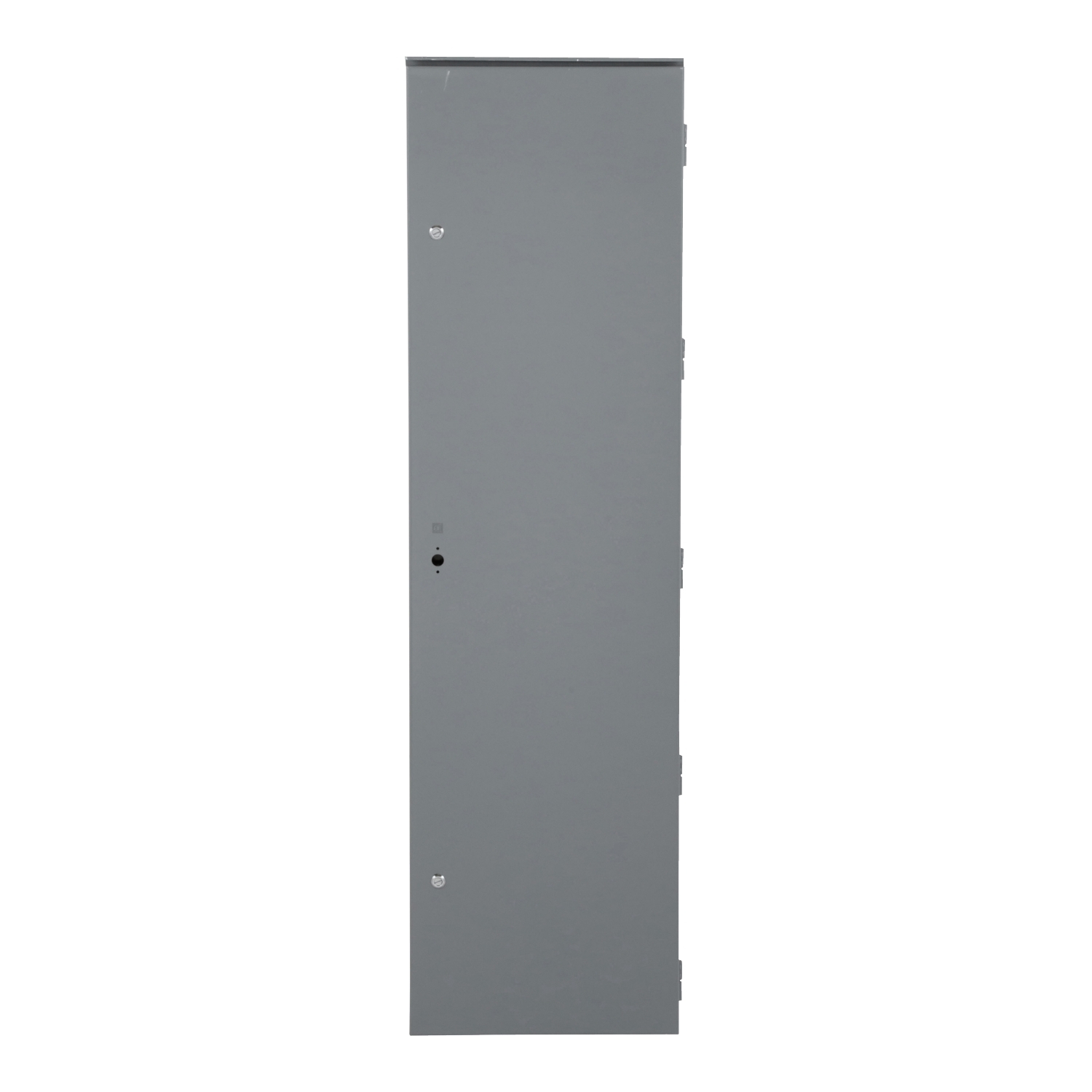

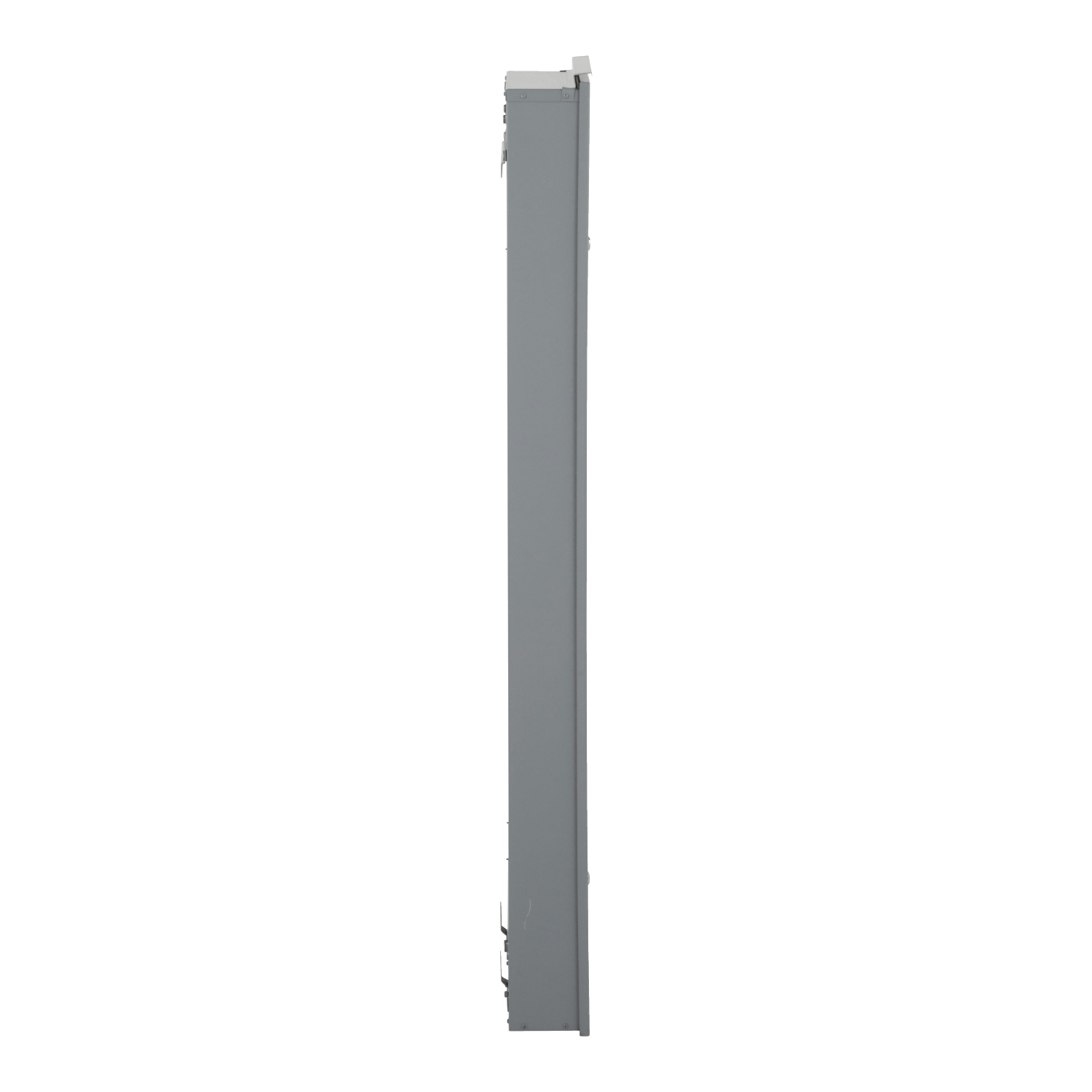

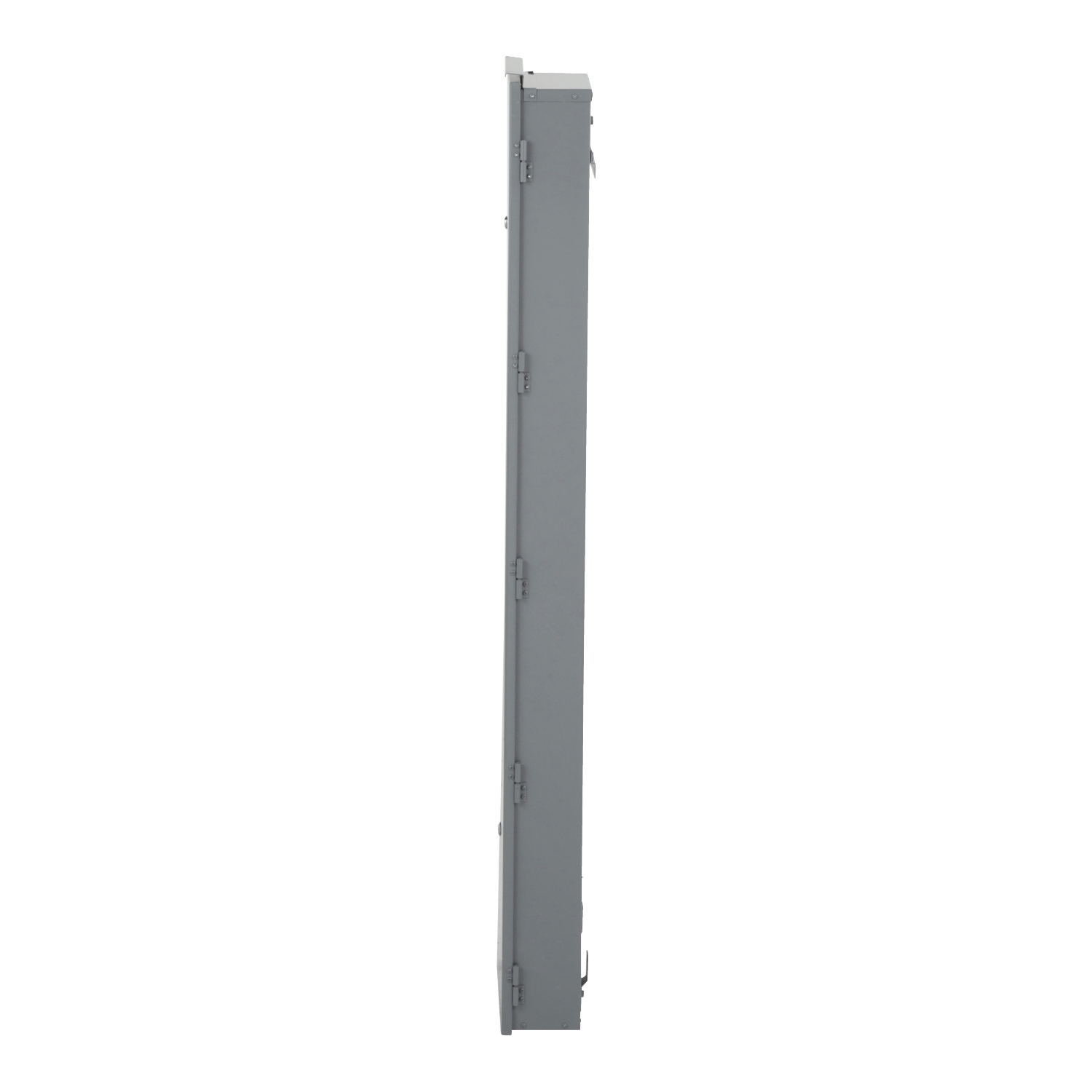

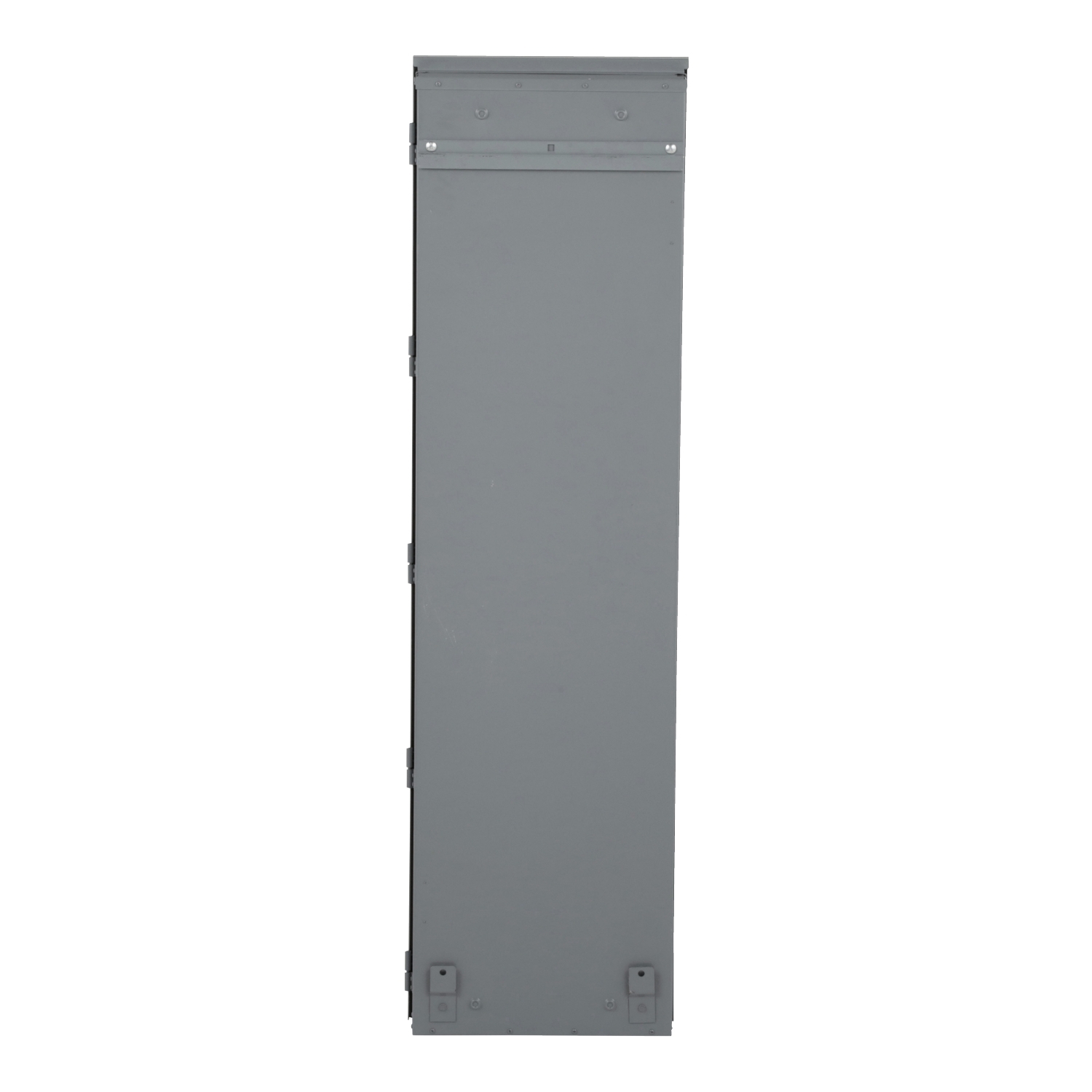

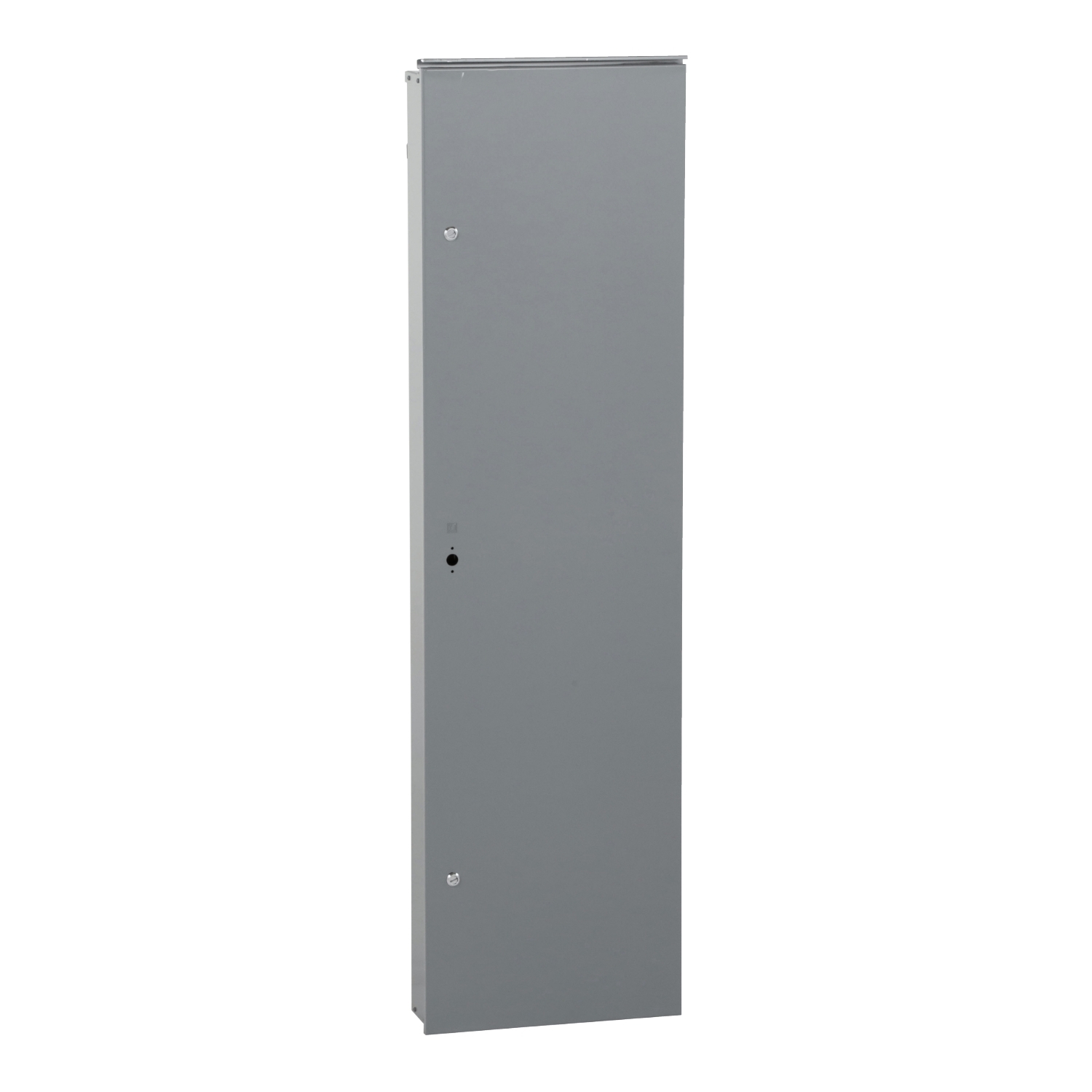

MH74WP Panelboard Enclosure, NEMA 3R/5/12, 74 in L x 20 in W x 6-1/2 in D, Steel

MFR:
Schneider Electric
MFR #:
MH74WP
UPC:
785901083276
Item #:
165588

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 3R/5/12 with removable blank end walls. The enclosure dimensions are 20 inch width x 74 inch height x 6.5 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Manuals & Documentation
Catalog Number MH74WP
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Enclosure Steel
Mounting Surface
Panelboard Type Panelboard Box
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=446743&lang=en-us
UPC 785901083276
GTIN 00785901083276
Item Type Enclosure
