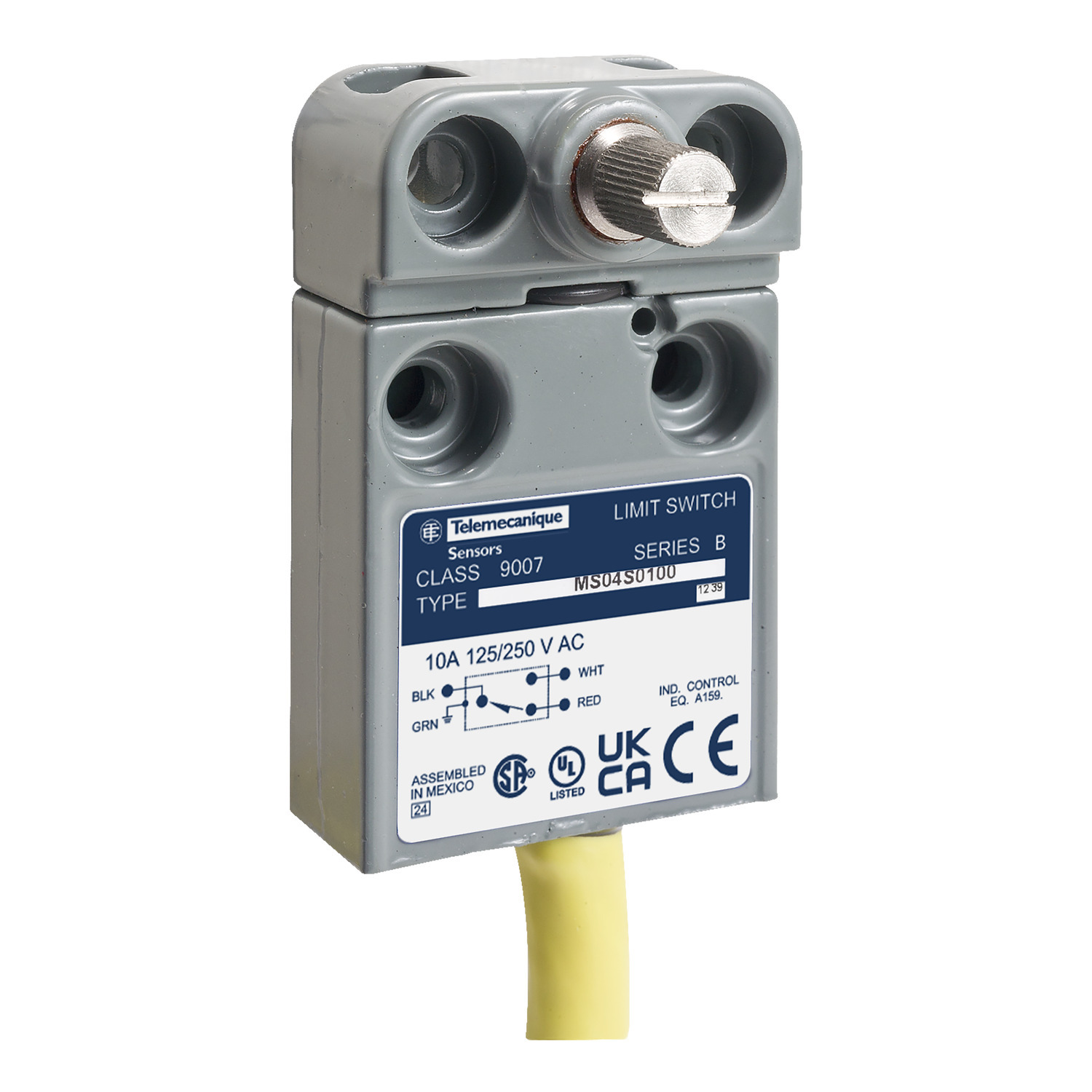

LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Manuals & Documentation
Catalog Number 9007MS04S0102
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action From left and right;CW and CCW;Lateral approach, 2 directions;Snap action
Actuator Spring return without operating lever -
Amperage Rating 10
Application 9007MS/ML,MINIATURE POTTED,ROTARY HEAD
Connection Pre-wired cable bottom
Contact Configuration NC-NO;Form C
Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250
Mounting By The Body
Number of Poles 1
Operating Cycles 100000 CYCLES
Special Features FIXED,METAL
Standard 10 GN 75-1200 HZ)IEC 60068-2-6,35 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,LR 25490 CLASS 32 11 03-E78403,UL-CE-CSA
UPC 785901398998
GTIN 00785901398998
Item Type Limit switch
Size 0.62
Operating Temperature -40-220 A Degrees F
Voltage Rating 6 A 120 V AC, A300 NEMA RATING DESIGNATION-3 A 240 V AC, A300 NEMA RATING DESIGNATION-5 A 28 V DC
