Square D

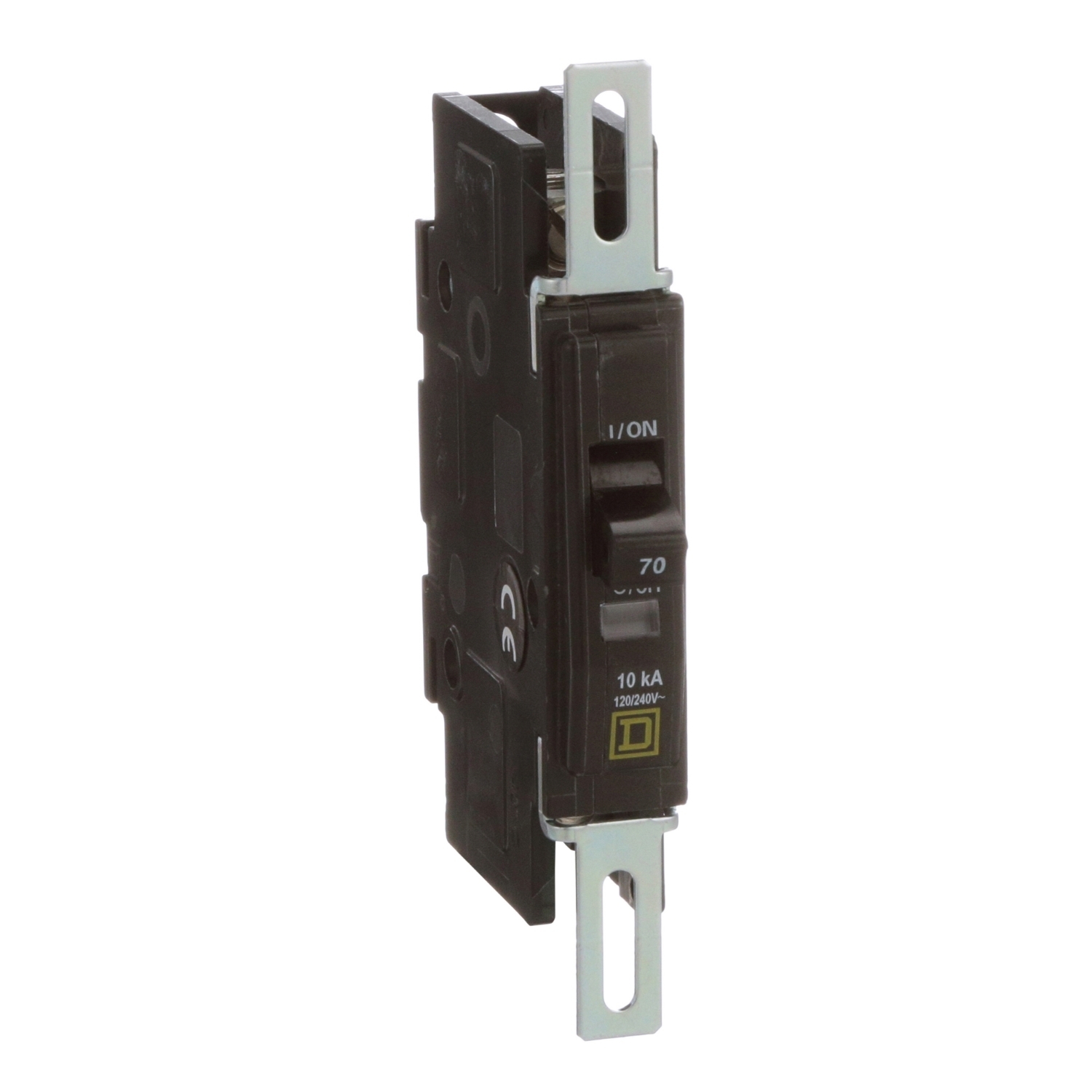

QOU170 Type QOU Standard Miniature Circuit Breaker, 120/240 V AC, 70 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
QOU170
UPC:
785901509868
Item #:
165206

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 70A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.

Manuals & Documentation
Catalog Number QOU170
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 12...AWG 2/0 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402077&lang=en-us
UPC 785901509868
GTIN 00785901509868
Item Type Miniature circuit-breaker
Width 0.750000000000000
Width UOM Inch
Height 4.050000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 120/240 V AC;120 V AC;48 V DC
