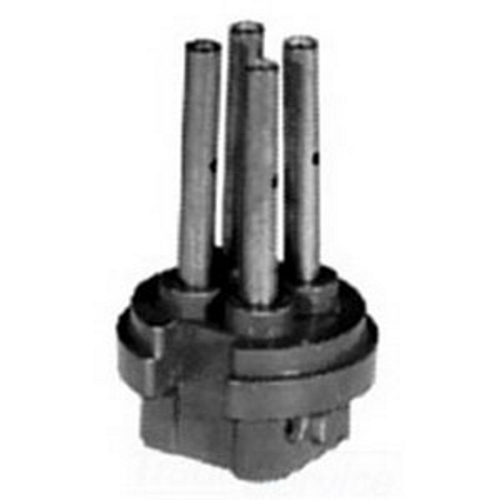

Powertite; Grounding Style 1 Shell Only Plug; 60 Amp, 600 Volt AC at 50 - 400 Hz/250 Volt DC, 4-Pole, 4-Wire, 3 Phase
- MFR:
- Appleton Electric
- MFR #:
- API6044
- UPC:
- 781381166027
- Item #:
- 164742
Powertite; Grounding Style 1 Shell Only Plug; 60 Amp, 600 Volt AC at 50 - 400 Hz/250 Volt DC, 4-Pole, 4-Wire, 3 Phase
- MFR #:
- API6044
- UPC:
- 781381166027
- Item #:
- 164742
Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree
Manuals & Documentation
| Catalog Number | API6044 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | For ARI-6044 Receptacle |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Phase | 3 |
| Special Features | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Locking screw and slot prevents plug cable collar from backing off; Wire recess diameter: 5/16 IN |
| Standard | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| UPC | 781381166027 |
| GTIN | 00781381166027 |
| Item Type | Grounding Style 1 Plug |
| Environmental Conditions | Temperature Rating: -40 To 107 DEG C |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size | 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex) |
